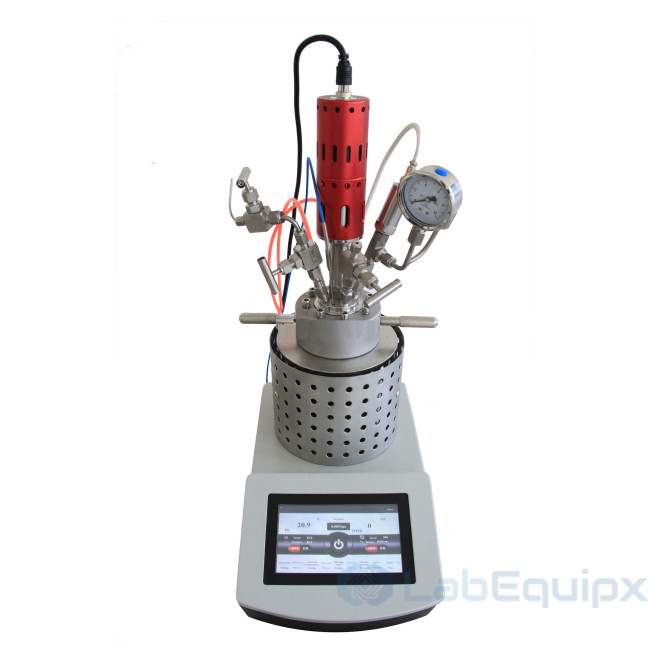

High Intelligent Laboratory Bench Top Pressure Reactor

  • The LEHILBTPR is a bench top stirred pressure reactor with a touch screen controller that combines temperature, speed, torque, time and pressure in one system. Five sizes from 0.5 to 5 L cover pilot tests, microanalysis and quantitative synthesis at high temperature and pressure. Users work in petrochemical, pharmaceutical, polymer synthesis and metallurgy research.

    Design

    • Vessel: removable, SS304 or SS316, charged from above.
    • Lid and closure: flat cover, quick open, flange type closure with bolts.
    • Shaft seal: magnetic coupling drive, no packed gland.
    • Agitator: three-blade propeller as standard. Paddle, anchor or custom types are available.
    • Motor: large torque brushless motor with stable speed and low noise.
    • Heating and cooling: electric heating, internal spiral cooling coil.

    Control

    The 7 inch true color touch screen shows temperature, time and heating voltage, controls temperature with ±1 ℃ accuracy, and displays and controls stirring speed. Sound and light alarms trigger on over temperature, over time and over pressure, with a constant pressure function.

    Typical applications

    • Catalytic reactions
    • Polymerization
    • Supercritical reactions
    • High temperature and high pressure reactions
    • Hydrogenation and reactions under inert gas

    Models

    ModelCapacityMotor powerHeating power
    LEHILBTPR-0.50.5 L0.15 kW1 kW
    LEHILBTPR-11 L0.2 kW2 kW
    LEHILBTPR-22 L0.2 kW2 kW
    LEHILBTPR-33 L0.2 kW3 kW
    LEHILBTPR-55 L0.6 kW4 kW

    All models: working pressure 10 MPa, working temperature 350 ℃, stirring speed 0 to 1500 r/min.

    What is included

    Pressure gauge, thermocouple, internal stirring system, liquid inlet and gas inlet with needle valve, gas release valve, dip tube, safety rupture disc and cooling coil.

    Specify for your project

    • Capacity, 0.5 to 5 L
    • Vessel material: SS304 or SS316
    • Stirrer type for the viscosity of the batch
    • Working pressure and temperature within 10 MPa and 350 ℃
    • Gas and liquid feed connections

    This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.

    • High Intelligent Laboratory Bench Top Pressure Reactor
    • High Intelligent Laboratory Bench Top Pressure Reactor
  • Features

    • High intelligent reaction kettle/ Bench top stirred pressure reactor
    • Flat cover lid: Quick open
    • Closure type: Flange type with bolts closure
    • Shaft seal: Magnetic coupling drive Reactor vessel: Removable
    • Agitator: Three-blade propeller
    • Motor:Large torque brushless motor; Stable rotating speed with no noise
    • Control: 7 inch true color touch screen display

    The control system integrates temperature, speed, torque, time and pressure as one control, and has sound and light alarm functions such as over temperature, over time and over pressure (constant pressure).

    Specifications

    Model No.LEHILBTPR-0.5LEHILBTPR-1LEHILBTPR-2LEHILBTPR-3LEHILBTPR-5
    Nominal Capacity (L)0.51 235
    Working Pressure (MPa)1010 101010
    Working Temperature (℃)350350 350350350
    Stirring Speed (r/min)0-15000-15000-15000-15000-1500
    Motor power (kW)0.150.20.20.20.6
    Heating Power (kW)12234
    MaterialSS304 or SS316
    Heating MethodGeneral electric heating
    Cooling MethodInternal spiral coils
    Charging MethodCharging from above
    Stirring typePropeller, paddle type, anchor type or customized
    Control panelTemperature, time and heating voltage display
    Temperature adjustment control, accuracy±1 ℃
    Stirring speed display and control
    Standard fittingsPressure Gage; Thermocouple; Internal Stirring System
    Liquid inlet and gas inlet with needle valve;Gas Release Valve
    Dip Tube; Safety Rupture Disc; Cooling Coil
