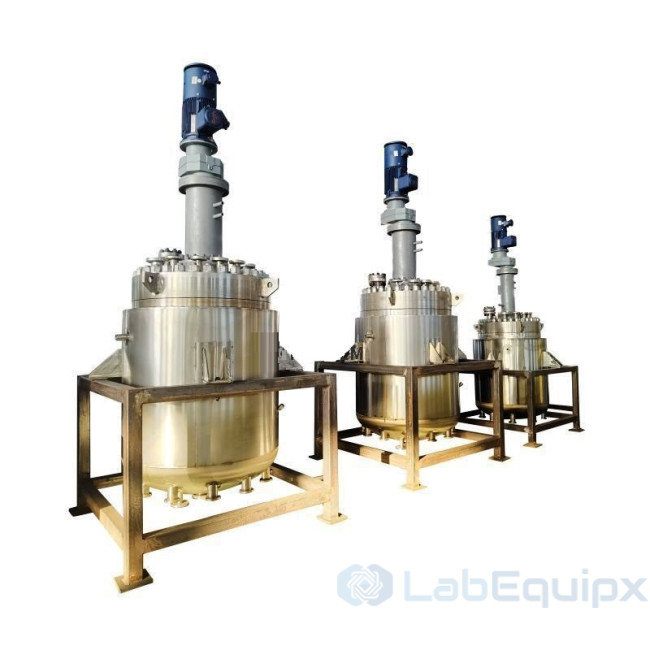

Hastelloy Clad Pressure Reactors

  • LEHCPR pilot pressure reactors are large stirred vessels for high pressure processes and hydrogenation at pilot and small production scale. They run under high pressure and under full vacuum. Most units use a flat top cover, which seals well and is easy to open and clean, with an ellipsoidal bottom head. Every unit is customized, so detailed process specifications are needed to configure one.

    Design

    • Drive: low to high torque magnetic coupling, static seal with no rotating shaft gland.
    • Heads: flat cover top head as standard, elliptical flange type available. Ellipsoidal bottom head.
    • Head lift: lifting device available for raising and lowering the head.
    • Pressure: -0.1 to 300 bar, customized.
    • Material: SS304 or SS316 wetted parts as standard. Hastelloy cladding, Titanium, Nickel, Hastelloy B/C, Monel, Zirconium and Inconel are available. Vessels are usually jacketed steel or Hastelloy.
    • Heating: electric as standard, with heating power chosen for the working temperature. Thermal oil, steam and far infrared heating are available.
    • Control panel: PID temperature display and control with ±1 ℃ accuracy, stirring speed, operation time, heating voltage and current display. Automation ranges from simple data collection to a fully automated system.

    Standard models

    ModelNominal capacityStirring speedMotor power
    LEHCPR-100100 L0 to 500 r/min2.2 kW
    LEHCPR-200200 L0 to 450 r/min2.2 kW
    LEHCPR-300300 L0 to 450 r/min4 kW
    LEHCPR-500500 L0 to 450 r/min5.5 kW

    Options

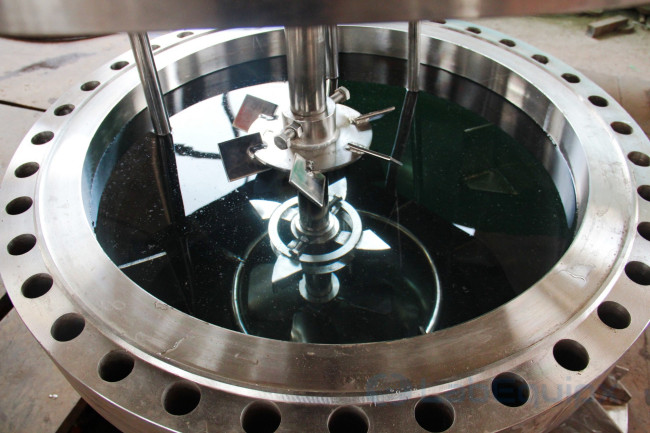

    • Impeller: propeller, paddle, anchor, spiral, turbine or gas inducing
    • Spiral cooling coil with cooling water
    • Bottom or top discharge
    • Head ports: pressure gauge, safety valve, temperature, gas and liquid, dip tube, vent, solid charging, cooling coil inlet and outlet

    Specify for your project

    • Nominal capacity from the standard models or a custom size
    • Design pressure, up to 300 bar, and vacuum duty
    • Design temperature and heating method
    • Wetted material, and whether Hastelloy cladding is required
    • Impeller, cooling and head port layout
    • Level of automation and data collection

    This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.

    • Hastelloy Clad Pressure Reactors
    • Hastelloy Clad Pressure Reactors
    • Hastelloy Clad Pressure Reactors
    • Hastelloy Clad Pressure Reactors
    • Hastelloy Clad Pressure Reactors
  • Product Feature

    • Floor stands or moveable cart type.
    • Capacity volume: 100 liters to 500 liters .
    • Max pressure: 300 bar; Design temperature up to 350 ℃
    • Low to high torque magnetic couplings: static seal.
    • Lifting device available for reactor head rising and lowering.
    • Top Head type: Flat cover; Bottom head type: Ellipsoidal type.
    • Available material:SS304, SS316, Titanium, Nickel, Hastelloy B/C, Monel, Zirconium, Inconel.
    • Monitor and control: Temperature, pressure, motor speed, operating time, etc.
    • Customized according to customers requirement.

    Other materials, pressures & temperatures are available.Autoclave are built for pressure reactions as well as for reactions under full vacuum. Different technologies and materials are used, depending on the requested process and process media.

    Pilot pressure reactors range from 100-500 liters and are all customized. To quote such systems we require detailed specifications. Safety is important with such larger scale systems, especially when doing hydrogenations and other reactions under higher pressure. The degree of automation and process control vary from simple data collection to complete automation of the system. In most cases, the reaction vessels are jacketed steel or Hastelloy reactors.

    Standard Specification

    Model No.

    LEHCPR-100LEHCPR-200LEHCPR-300LEHCPR-500

    Nominal Capacity (L)

    100200300500

    Design Pressure (bar)

    -0.1-300 bar customized

    Material

    SS304 or SS316 wetted parts

    Design Temperature (℃)

    0~350 customized

    Stirring Speed (r/min)

    0-5000-4500-4500-450

    Motor Power (kW)

    2.22.245.5

    Heating Power (kW)

    According to the working temperature

    Heating Method

    Standard electric heating(Thermal oil, steam, far infrared heating available)

    Head type Flat cover or elliptical flange type
    Impeller type (Optional)Propeller, paddle, anchor, spiral, turbine, gas inducing type, etc
    Cooling type (Optional)Spiral cooling cools with cooling water
    Discharging type (Optional)Discharging from bottom or above.

    Control panel

    PID temperature display and control, accuracy±1 ℃;stirring speed display; Operation time display; Heating voltage and current display

    Opening port of head

    (Optional)

    Pressure gauge, Safety valve port; Temp. measuring port;

    Gas and liquid port; Dip tube; Vent port; Solid charging port; Cooling coil inlet and outler port;

    Note:

    • Customer is advised to select best suited options for most optimized price & delivery.
    • Customization of volume, material, pressure, temperature etc. may be possible on request.
