Fast Opening/Closure Lab High Pressure Reactor

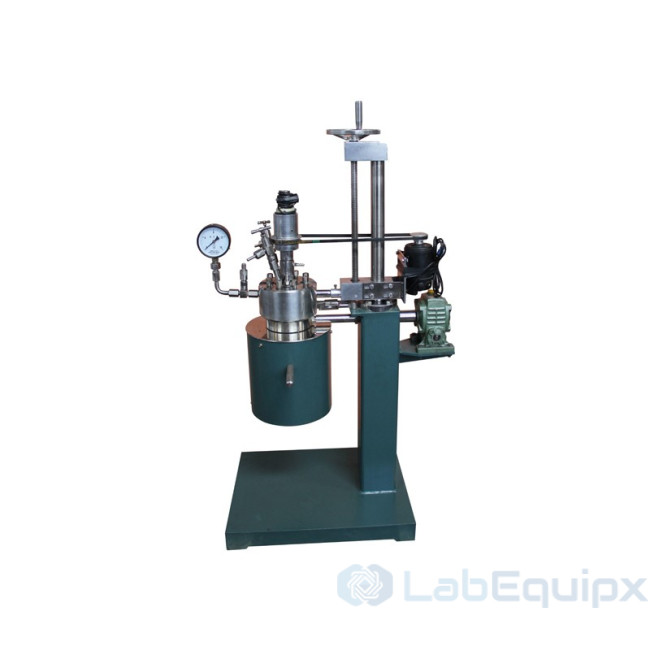

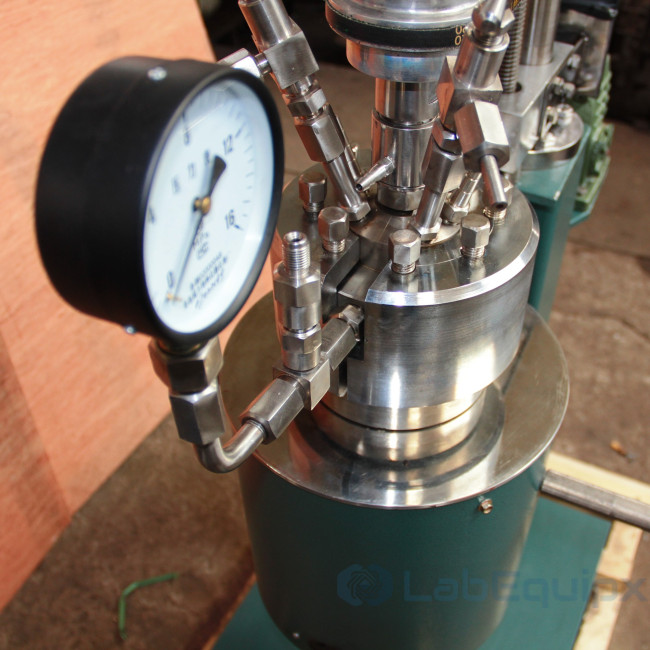

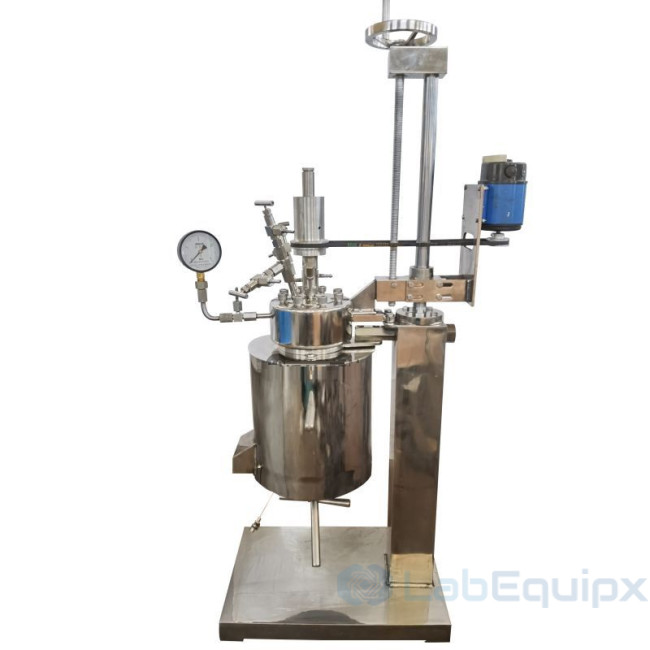

  • The LEFOCLHPR fast opening lab high pressure reactor is a stirred autoclave with a movable head and a manual lift and tilt device. The head comes off quickly, and the vessel tilts for emptying and cleaning, which shortens the time between runs. Six sizes from 0.25 to 5 L cover lab tests and reactions under high pressure, high vacuum and high temperature.

    Design

    • Head: movable, quick opening design.
    • Lift and tilt: manual operation.
    • Frame: floor stand or movable cart.
    • Drive: low to high torque magnetic coupling, static seal with no shaft gland.
    • Material: SS304, SS316, Titanium, Nickel, Hastelloy B/C, Monel, Zirconium, Inconel or Tantalum.
    • Heating: electric as standard. Water circulation or thermal oil heating are available.
    • Cooling: spiral coil. Single or serpentine coils are available.
    • Charging: from above. A bottom valve is available.
    • Stirrer: propeller, paddle, anchor or custom.
    • Safety: rupture disc on a dedicated relief port.

    Control

    The panel shows temperature, time and heating voltage, controls temperature to ±1 ℃, and shows and controls stirring speed. Temperature, pressure, motor speed, gas and liquid flow and level can be monitored.

    Standard models

    ModelCapacityMotor powerHeating power
    LEFOCLHPR-0.250.25 L0.15 kW1 kW
    LEFOCLHPR-0.50.5 L0.15 kW1 kW
    LEFOCLHPR-11 L0.2 kW2 kW
    LEFOCLHPR-22 L0.2 kW2 kW
    LEFOCLHPR-33 L0.2 kW3 kW
    LEFOCLHPR-55 L0.6 kW4 kW

    All standard models: working pressure 10 MPa, working temperature 350 ℃, stirring speed 0 to 1500 r/min.

    What is included

    Pressure gauge, thermocouple, internal stirring system, liquid inlet and gas inlet with needle valve, gas release valve, dip tube, safety rupture disc and cooling coil.

    Specify for your project

    • Capacity, 0.25 to 5 L
    • Material of construction
    • Heating method and cooling coil type
    • Top charging only, or a bottom valve
    • Monitoring needs: pressure, flow, level

    This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.

    • Fast Opening/Closure Lab High Pressure Reactor
    • Fast Opening/Closure Lab High Pressure Reactor
    • Fast Opening/Closure Lab High Pressure Reactor
    • Fast Opening/Closure Lab High Pressure Reactor
    • Fast Opening/Closure Lab High Pressure Reactor
    • Fast Opening/Closure Lab High Pressure Reactor
  • Product features

    • Floor stands or moveable cart type.
    • Laboratory autoclaves with 250 ml to 5 liters volume.
    • Working pressure: 10 MPa; Working temperature: 350 ℃
    • Low to high torque magnetic couplings: static seal with no leakage
    • Available material:SS304, SS316, Titanium, Nickel, Hastelloy B/C, Monel, Zirconium, Inconel, Tantalum.
    • Lifting and tilting device for easy operation,low labor cost.
    • Moveable head quick openning design.
    • Monitor and control: Temperature, pressure, motor speed, gas / liquid flow, level, etc
    • Safety Device (Blasting Disc) on Security Blasting Port.
    • Customized according to customers requirement.

    Standard specifications

    Model No. LEFOCLHPR-0.25 LEFOCLHPR-0.5 LEFOCLHPR-1 LEFOCLHPR-2 LEFOCLHPR-3 LEFOCLHPR-5
    Capacity (L) 0.25 0.5 1 2 3 5
    Working Pressure (MPa) 10 10 10 10 10 10
    Working Temperature(℃) 350 350 350 350 350 350
    Stirring Speed (r/min) 0-1500 0-1500 0-1500 0-1500 0-1500 0-1500
    Motor power (kW) 0.15 0.15 0.2 0.2 0.2 0.6
    Heating Power (kW) 1 1 2 2 3 4
    Heating Method General electric heating(water recycling, thermal oil heating available
    Cooling Method Spiral coils(Single coils, serpentine coils available)
    Charging Method Charging from above(Bottom valve available)
    Stirring type Propeller, paddle type, anchor type or customized
    Lifting and tilting type Mannual operation
    Control panel Temperature, time and heating voltage display
    Temperature adjustment control, accuracy±1 ℃
    Stirring speed display and control
    Standard fittings Pressure Gage; Thermocouple; Internal Stirring System
    Liquid inlet and gas inlet with needle valve;Gas Release Valve
    Dip Tube; Safety Rupture Disc; Cooling Coil

    Product details

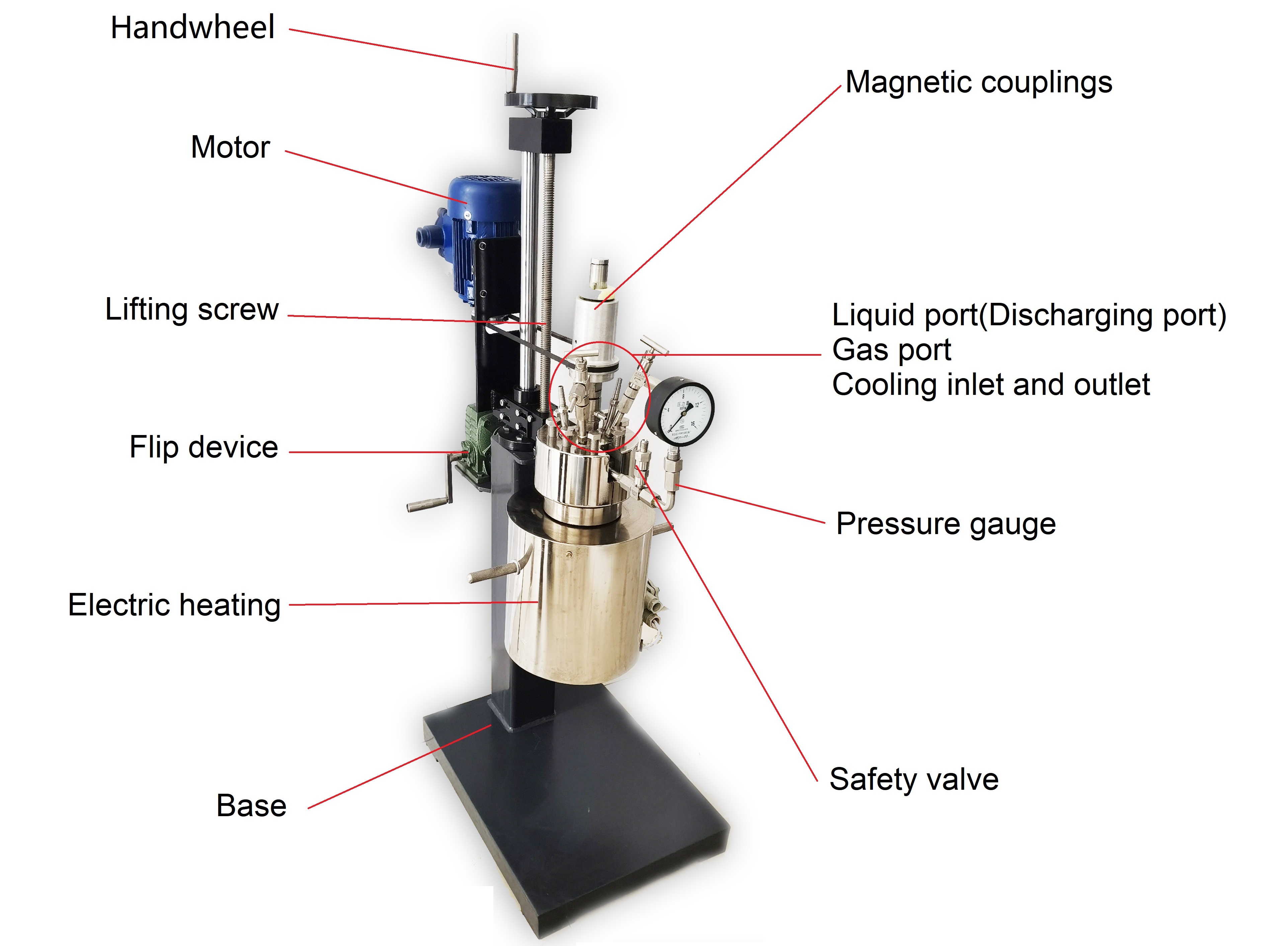

    Structure Drawings

    Fast Opening/Closure Lab High Pressure Reactor

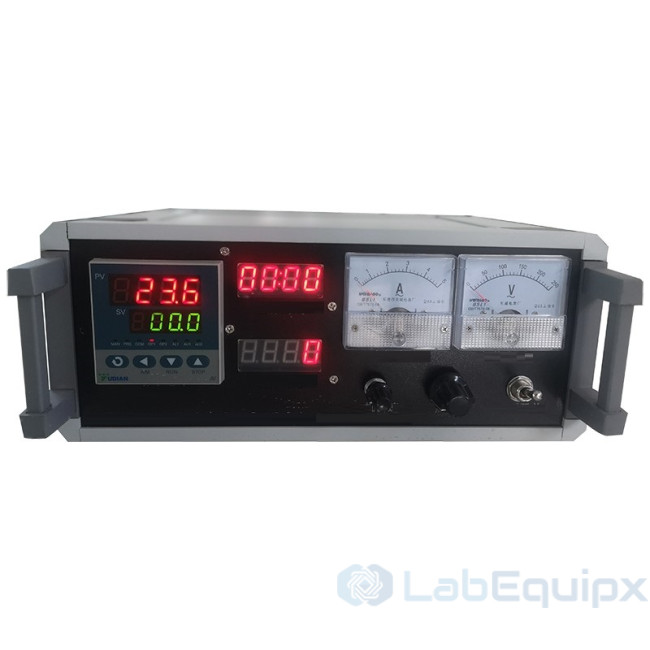

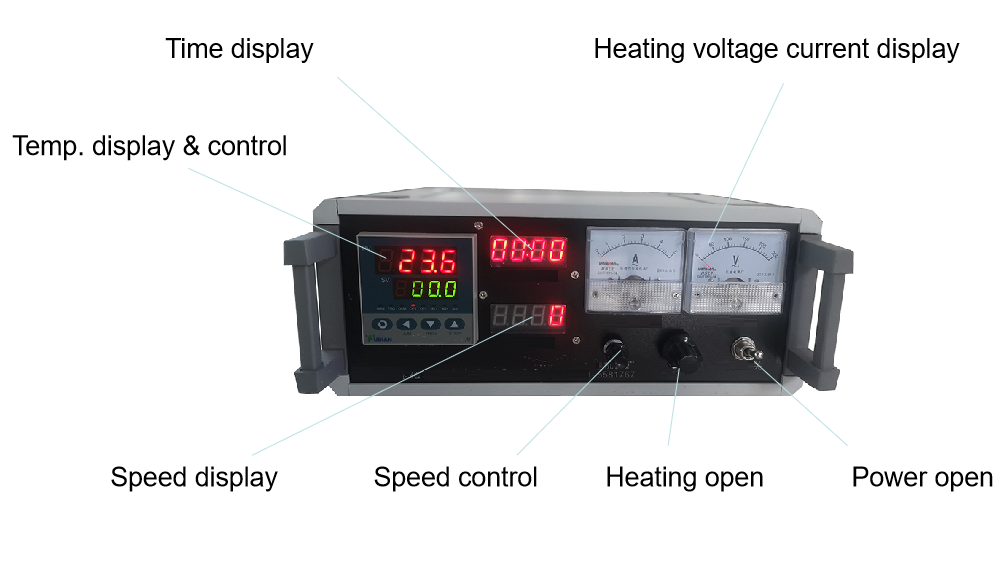

    Control system

    Fast Opening/Closure Lab High Pressure Reactor

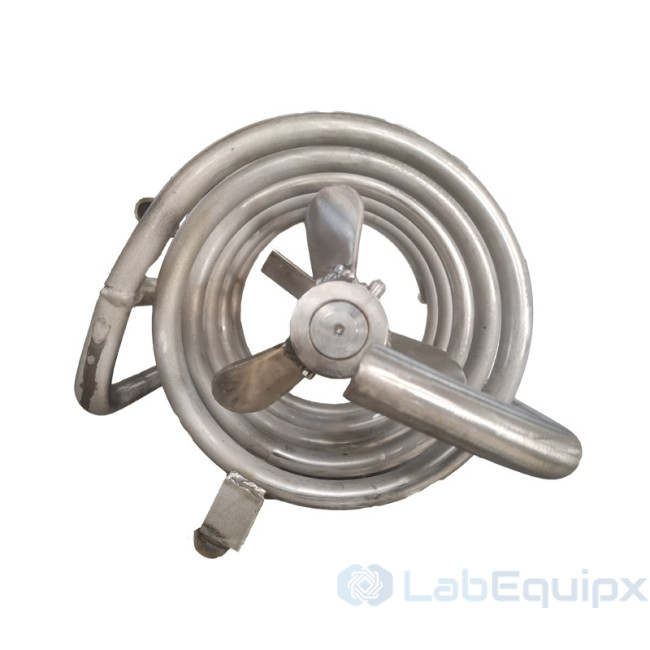

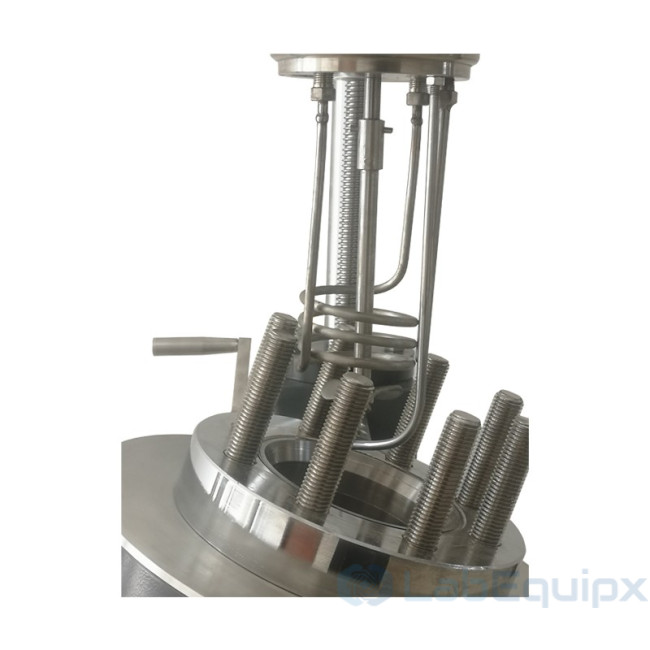

    Internal components

    Fast Opening/Closure Lab High Pressure Reactor
