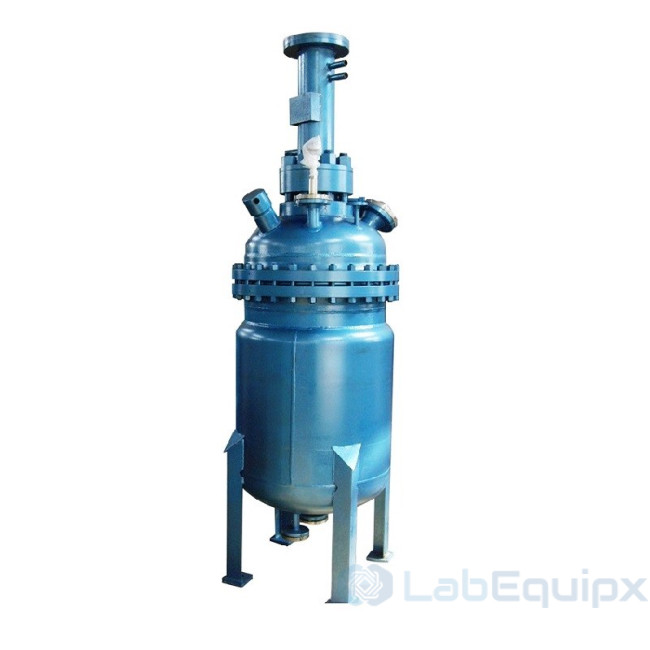

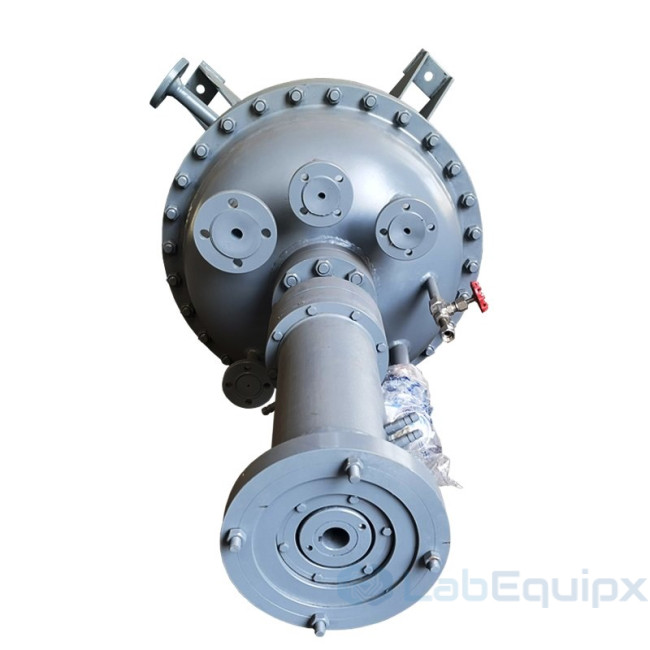

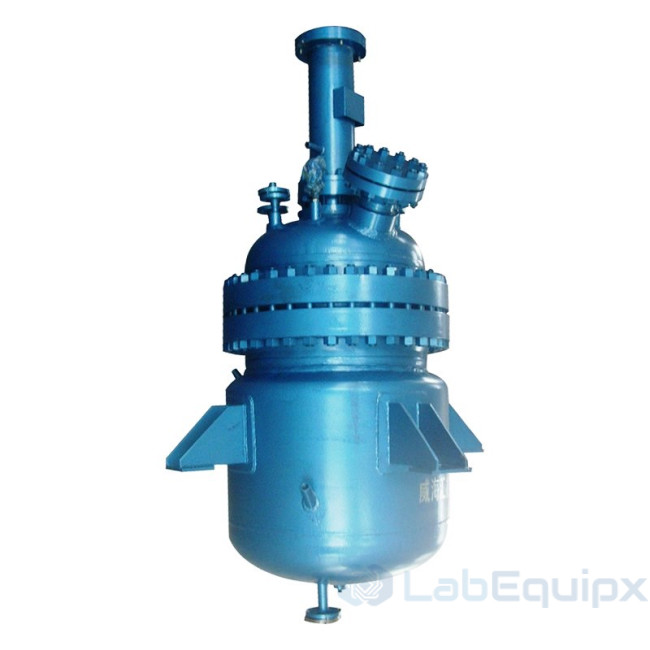

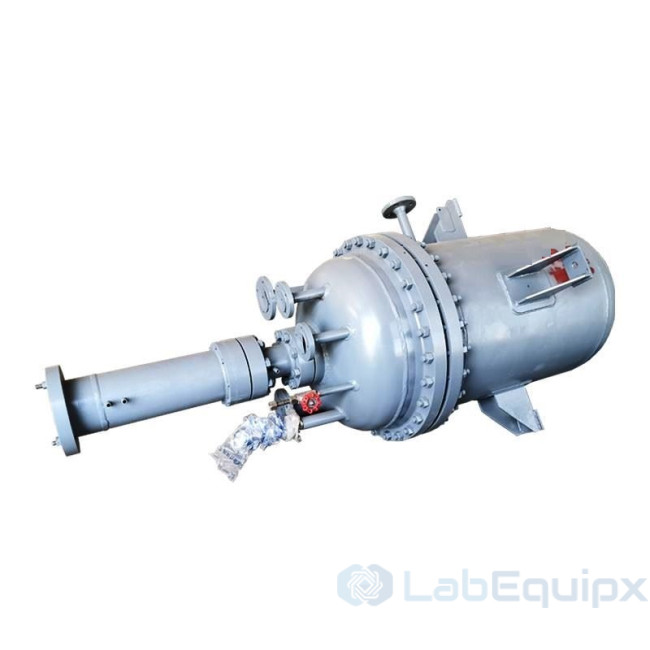

Elliptical Top Entry Pressure Reactor Autoclave Vessels with Agitator

  • LEATEPRAVA elliptical top entry pressure reactors are stirred autoclave vessels for lab and pilot scale, from 10 to 500 L. The top head is an elliptical head with a flange joint, bolted to the shell flange with high strength bolts. The bottom head is also elliptical. The flanged elliptical head is easy to take apart and is usually chosen for lower pressure processes.

    Design

    • Drive: top entry agitator on a low to high torque magnetic coupling, static seal with no rotating shaft gland.
    • Head lift: lifting device available for raising and lowering the head.
    • Frame: floor stand or movable cart.
    • Material: SS304 or SS316 wetted parts as standard. Titanium, Nickel, Hastelloy B/C, Monel, Zirconium, Inconel and Tantalum are available.
    • Heating: electric as standard. Thermal oil, steam and far infrared heating are available.
    • Control panel: PID temperature display and control with ±1 ℃ accuracy, stirring speed, operation time, heating voltage and current display.

    Standard models

    ModelCapacityDesign pressureStirring speedMotor power
    LEATEPRAVA-I010 L100 bar0 to 750 r/min0.6 kW
    LEATEPRAVA-2020 L100 bar0 to 750 r/min1.1 kW
    LEATEPRAVA-3030 L100 bar0 to 500 r/min1.5 kW
    LEATEPRAVA-5050 L100 bar0 to 500 r/min1.5 kW
    LEATEPRAVA-100100 L-0.1 to 100 bar0 to 500 r/min2.2 kW
    LEATEPRAVA-200200 L-0.1 to 100 bar0 to 450 r/min2.2 kW
    LEATEPRAVA-300300 L-0.1 to 100 bar0 to 450 r/min4 kW
    LEATEPRAVA-500500 L-0.1 to 100 bar0 to 450 r/min5 kW

    Pressure for the larger models is customized within the stated range. Standard parameters are for reference. Structure, nozzle size and orientation are confirmed per project.

    Options

    • Impeller: propeller, paddle, anchor, spiral, turbine or gas inducing
    • Spiral cooling coil with cooling water
    • Bottom or top discharge
    • Head ports: pressure gauge, safety valve, temperature, gas and liquid, dip tube, vent, solid charging, cooling coil inlet and outlet

    Specify for your project

    • Capacity, 10 to 500 L
    • Design pressure for the process
    • Design temperature and heating method
    • Wetted material
    • Impeller type, discharge and nozzle layout

    This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.

    • Elliptical Top Entry Pressure Reactor Autoclave Vessels with Agitator
    • Elliptical Top Entry Pressure Reactor Autoclave Vessels with Agitator
    • Elliptical Top Entry Pressure Reactor Autoclave Vessels with Agitator
    • Elliptical Top Entry Pressure Reactor Autoclave Vessels with Agitator
  • Product Features

    • Floor stands or moveable cart type
    • Capacity volume: 10 liters to 500 liters.
    • Max pressure: 100 bar; Design temperature up to 350 ℃
    • Low to high torque magnetic couplings: static seal.
    • Lifting device available for reactor head rising and lowering.
    • Top Head type:Elliptical head with flange joint; Bottom head type:Elliptical head
    • Available material:SS304, SS316, Titanium, Nickel, Hastelloy B/C, Monel, Zirconium, Inconel, Tantalum.
    • Monitor and control: Temperature, pressure, motor speed, operating time, etc.
    • Customized according to customers requirement.

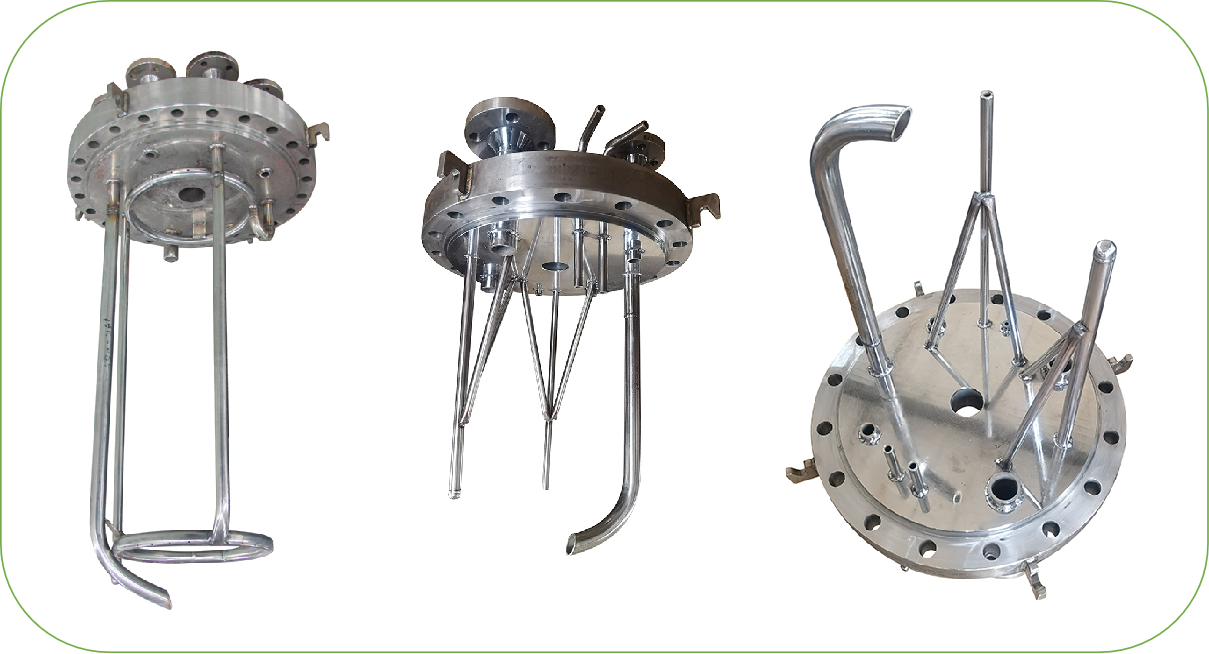

    Internal Components

    Elliptical Top Entry Pressure Reactor Autoclave Vessels with Agitator

    Standard Specifications

    Model No. LEATEPRAVA-I0 LEATEPRAVA-20 LEATEPRAVA-30 LEATEPRAVA-50 LEATEPRAVA-100 LEATEPRAVA-200 LEATEPRAVA-300 LEATEPRAVA-500
    Nominal Capacity (L) 10 20 30 50 100 200 300 500
    Design Pressure (bar) 100 100 100 100 -0.1-100 bar customized
    Material SS304 or SS316 wetted parts
    Design Temperature (℃) 350 0~350 customized
    Stirring Speed (r/min) 0-750 0-750 0-500 0-500 0-500 0-450 0-450 0-450
    Motor Power (kW) 0.6 1.1 1.5 1.5 2.2 2.2 4 5
    Heating Power (kW) 4 9 9 15 Selection according to the working temperature
    Heating Method Standard electric heating(Thermal oil, steam, far infrared heating available)
    Head type Elliptical head with flange joint
    Impeller type (Optional) Propeller, paddle, anchor, spiral, turbine, gas inducing type, etc
    Cooling type (Optional) Spiral cooling cools with cooling water
    Discharging type (Optional) Discharging from bottom or above.
    Control panel PID temperature display and control, accuracy±1 ℃;stirring speed display;Operation time display; Heating voltage and current display
    Opening port of head (Optional) Pressure gauge, Safety valve port; Temp. measuring port; Gas and liquid port; Dip tube; Vent port; Solid charging port; Cooling coil inlet and outler port

    Note:

    • The above standard parameters are for reference only. Different processe have their own reasonable selection, not the more complete the function, the better.
    • The structure, specification, nozzle size and orientation need to be confrimed after communicating with us.
