Customized High Performance Reactor System

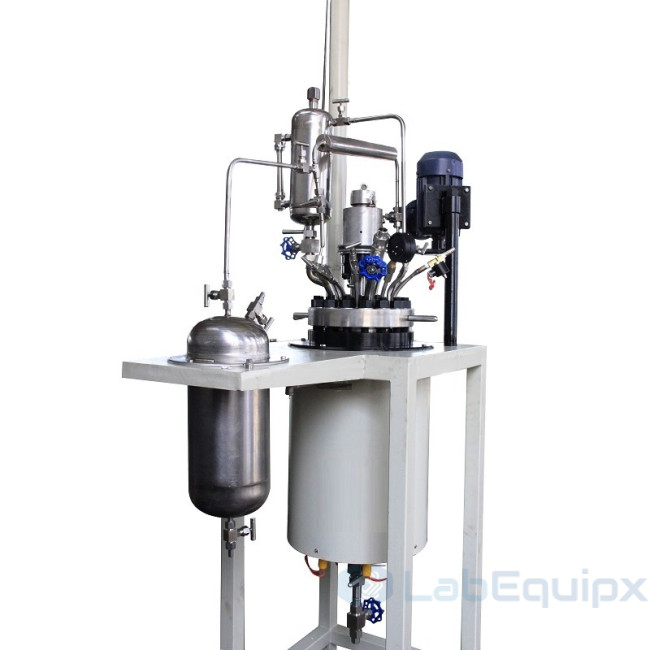

  • The LECHPRS is a customized stirred pressure reactor system built around a 5 to 50 L vessel in stainless steel or Hastelloy, with the receiving tank, reflux condenser and feed tank needed for pilot work. Laboratories and pilot plants use it to scale reactions in a closed, magnetically driven vessel. The standard design pressure is 100 bar and the standard design temperature is 350 °C.

    Design

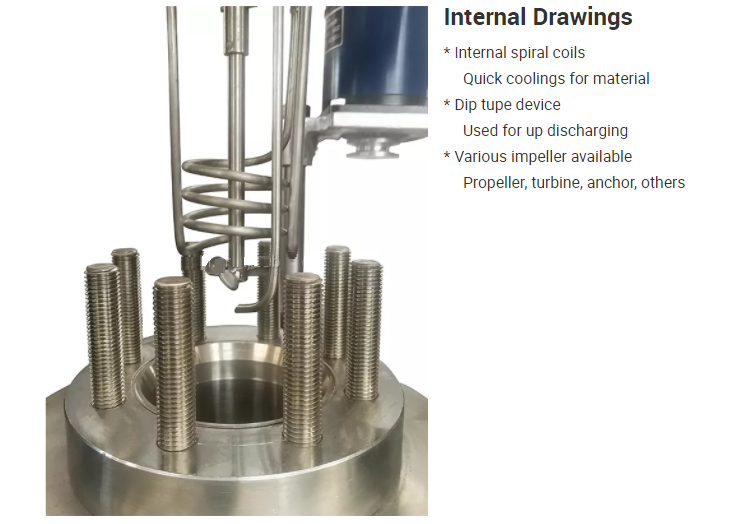

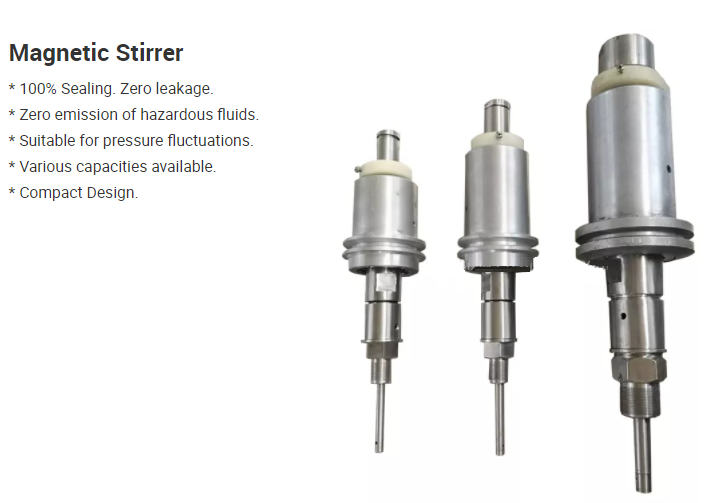

    Vessel material is SS304, SS316 or other alloys. The head is a flat cover or an elliptical flange head. A magnetic coupling drives the internal stirrer. Impeller types include propeller, paddle, anchor, spiral, turbine and gas inducing. Heating is electric as standard; thermal oil, steam and far infrared heating are available. An internal spiral coil cools the charge, and discharge is from the bottom or upward by pressure.

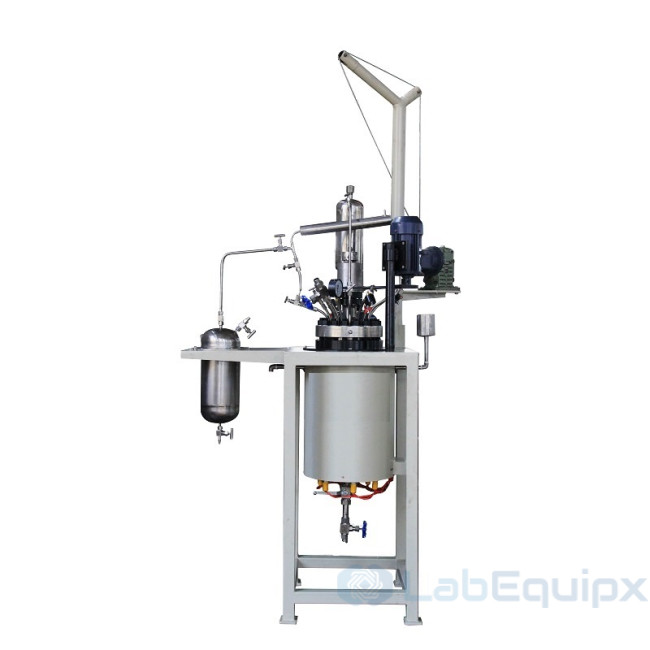

    One built example: 29 L volume, S31603 wetted parts, carbon steel jacket with jacketed oil electric heating of 2 kW x 6 = 12 kW, a 1.1 kW explosion-proof motor at 750 rpm, an upper paddle with a lower pusher, and a receiving tank, reflux condenser and constant pressure feeding tank. Its design pressure is -0.1/10 MPa, with a design temperature of 350 °C and a working temperature of 300 °C.

    What is included

    • PID temperature display and control, accuracy ±1 °C
    • Stirring speed, operation time, heating voltage and current display
    • Pressure gauge, thermocouple and internal stirring system
    • Liquid inlet and gas inlet with needle valves, dip tube, safety rupture disc and cooling coil

    Options

    • Solid plug port and constant feeding tank
    • Safety valve and external condenser
    • Reflux pipeline, drain valve and receiver

    Specify for your project

    • Nominal capacity, 5 to 50 L
    • Design pressure and design temperature
    • Vessel material: SS304, SS316 or another alloy
    • Heating method: electric, thermal oil, steam or far infrared
    • Impeller type and discharge arrangement
    • Condenser, receiver and feed tank set
    ModelCapacityStirring speedMotor powerHeating power
    LECHPRS-55 L0 to 750 rpm0.6 kW4 kW
    LECHPRS-1010 L0 to 750 rpm1.1 kW9 kW
    LECHPRS-2020 L0 to 500 rpm1.5 kW9 to 12 kW
    LECHPRS-3030 L0 to 500 rpm1.5 kW12 kW
    LECHPRS-4040 L0 to 500 rpm1.5 kW12 kW
    LECHPRS-5050 L0 to 500 rpm1.5 kW15 kW

    The LECHPRS family is configured per project.

    This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.

    • Customized High Performance Reactor System
    • Customized High Performance Reactor System
    • Customized High Performance Reactor System
  • Features

    • Volume: 29L
    • Wet material: S31603
    • Design pressure: -0.1/10Mpa
    • Design temperature: 350°C
    • Working temperature:300°C
    • Jacket material:Carbon steel
    • Heating method:Jacketed oil electric heating
    • Heating power:2kw X 6 = 12kw
    • Exproof motor:1.1kw
    • Stirrer speed:750rpm/min
    • Agitator type:Upper paddle Lower pusher

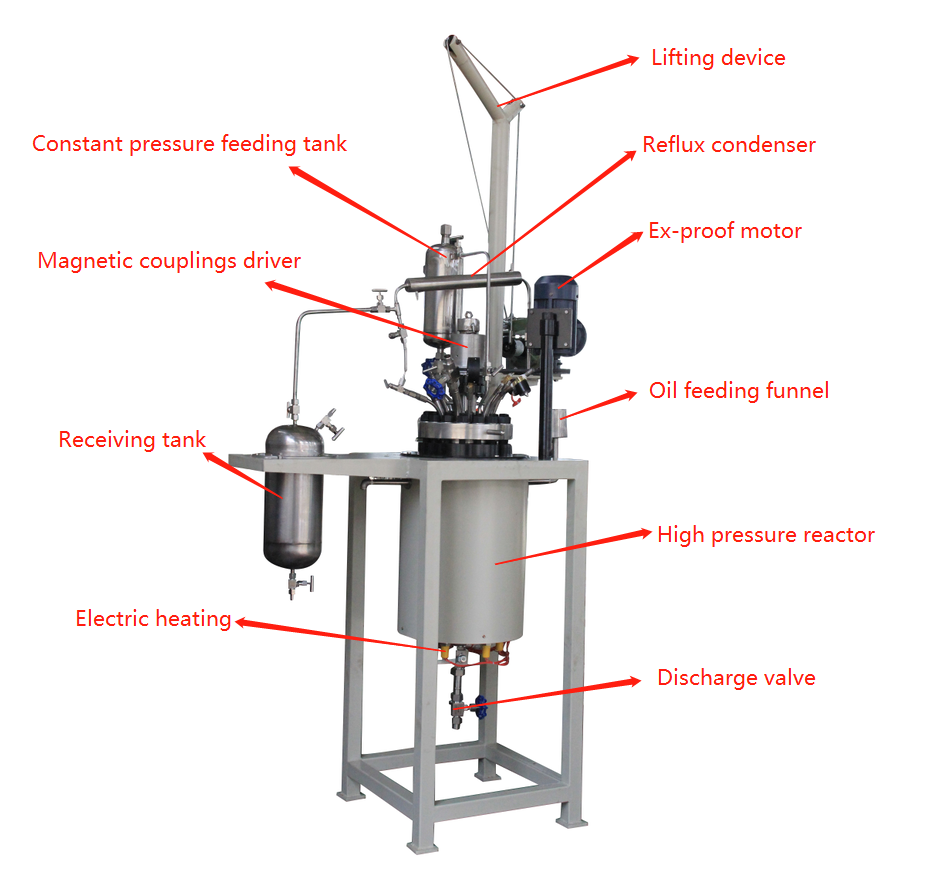

    • Equiped:Receiving tank、Reflux condenser、Constant pressure feeding tank、Ex-proof motor、Magnetic couplings driver
    Customized High Performance Reactor System
    Customized High Performance Reactor System
    Customized High Performance Reactor System

    Specifiction

    Model No. LECHPRS-5 LECHPRS-10 LECHPRS-20 LECHPRS-30 LECHPRS-40 LECHPRS-50
    Nominal Capacity 5 L 10 L 20 L 30 L 40 L 50 L
    Design Pressure Standard 100 bar Maximum pressure up to 250 bar
    Material SS304, SS316 or other alloys
    Design Temperature Standard 350°С; Up to 500°С
    Stirring Speed 0-750 rpm 0-750 rpm 0-500 rpm 0-500 rpm 0-500 rpm 0-500 rpm
    Motor Power 0.6 kW 1.1 kW 1.5 kW 1.5 kW 1.5 kW 1.5 kW
    Heating Power 4 kW 9 kW 9-12 kW 12 kW 12 kW 15 kW
    Heating Method Standard electric heating (Thermal oil. steam, far infrared heating available)
    Head type Flat cover type or elliptical flange head
    Impeller type (Optional) Propeller paddle, anchor, spiral, turbine, gas inducing type, etc
    Cooling type (Optional) Internal spiral cooling cools
    Discharging type (Optional) Discharging from bottom or up discharge by pressure
    Control panel PID temperature display and control, accuracy±l °С: Stirring speed display; Operation time display; Heating voltage and current display. Pressure Gage; Thermocouple; Internal Stirring System
    Standard Liquid inlet and gas inlet with needle valve Dip Tube: Safety Rupture Disc; Cooling Coil
    Optional Solid plug port, constant feeding tank, safety valve, external condenser. Reflux pipeline, drain valve, receiver, etc.
