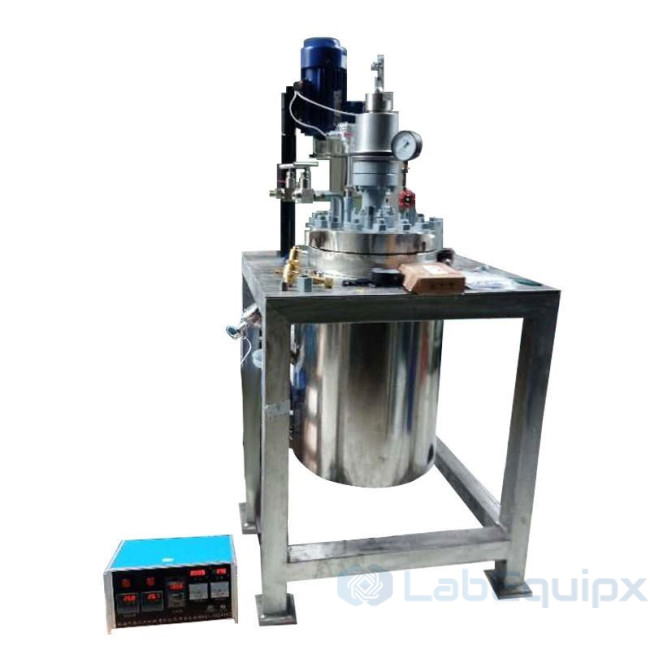

Continuous Pilot Reactor with Bottom Drain Valve

  • LECPRBDV continuous pilot reactors are stirred pressure vessels from 10 to 500 L fitted with a bottom drain valve, so product can leave the vessel while the process runs. They suit continuous chemical processes with free flowing media and few particles.

    How the bottom valve works

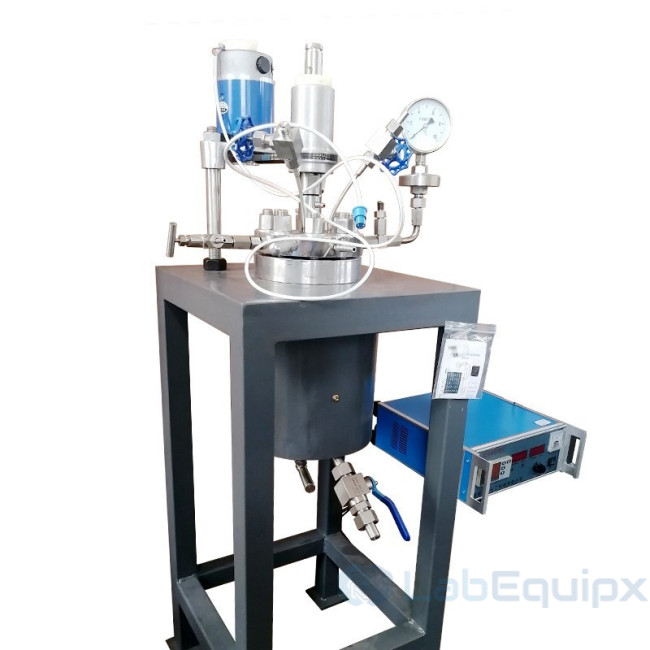

    The standard bottom drain valve has a rising stem. When closed, the stem sits flush with the bottom of the inner cylinder, so there is no dead space between the vessel bottom and the valve seat where material can collect. When fully open, the stem retracts completely and leaves a clear channel to drain the vessel. Needle valves and ball valves can also be fitted as bottom outlets. Needle valves are used mainly on the smaller reactors. Ball valves give a large discharge passage, but their temperature and pressure limits are generally lower.

    Design

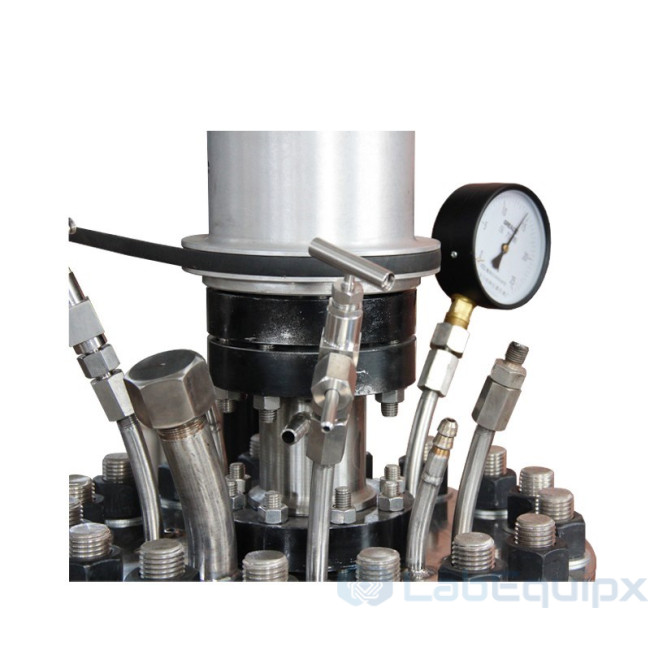

    • Drive: low to high torque magnetic coupling, static seal with no rotating shaft gland.

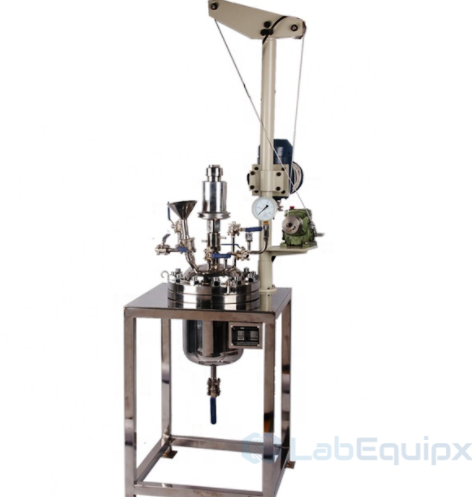

    • Head: flat cover as standard, ellipsoidal or conical available, with a lifting device for the head.

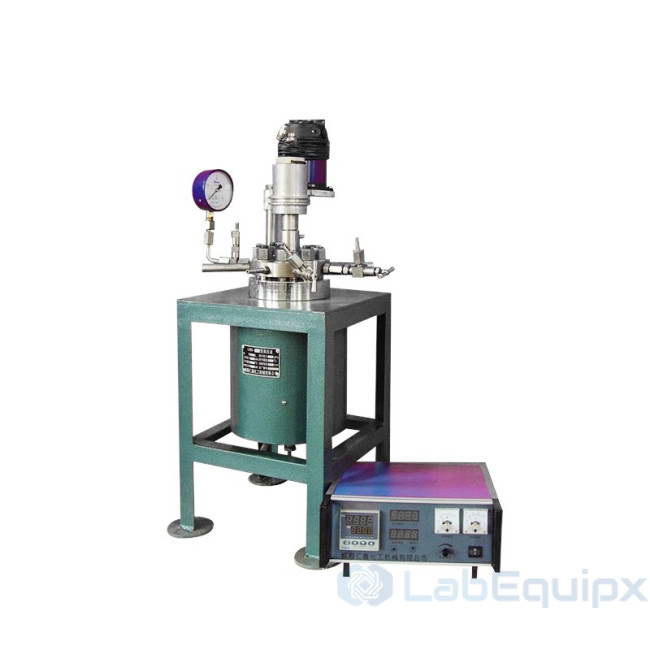

    • Frame: floor stand or movable cart.
    • Material: SS304 or SS316 wetted parts as standard. Titanium, Nickel, Hastelloy B/C, Monel, Zirconium, Inconel and Tantalum are available.
    • Heating: electric as standard, thermal oil, steam or far infrared available.
    • Control panel: PID temperature control with ±1 ℃ accuracy, stirring speed, operation time, heating voltage and current display.

    Standard models

    ModelCapacityDesign pressureStirring speedMotor power
    LECPRBDV-I010 L100 bar0 to 750 r/min0.6 kW
    LECPRBDV-2020 L100 bar0 to 750 r/min1.1 kW
    LECPRBDV-3030 L100 bar0 to 500 r/min1.5 kW
    LECPRBDV-5050 L100 bar0 to 500 r/min1.5 kW
    LECPRBDV-100100 L-0.1 to 300 bar0 to 500 r/min2.2 kW
    LECPRBDV-200200 L-0.1 to 300 bar0 to 450 r/min2.2 kW
    LECPRBDV-300300 L-0.1 to 300 bar0 to 450 r/min4 kW
    LECPRBDV-500500 L-0.1 to 300 bar0 to 450 r/min5.5 kW

    Heating power is 4 kW for 10 L, 9 kW for 20 and 30 L, 15 kW for 50 L, and is selected by working temperature for larger sizes. Structure, nozzle size and orientation are confirmed per project.

    Specify for your project

    • Capacity, 10 to 500 L
    • Bottom outlet type: rising stem, needle or ball valve
    • Design pressure, up to 300 bar, and design temperature
    • Wetted material
    • Impeller, cooling coil and head ports

    This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.

    • Continues Pilot Reactor with Bottom Drain Valve
    • Continues Pilot Reactor with Bottom Drain Valve
    • Continues Pilot Reactor with Bottom Drain Valve
    • Continues Pilot Reactor with Bottom Drain Valve
    • Continues Pilot Reactor with Bottom Drain Valve
  • Product Features

    • Floor stands or moveable cart type.
    • Capacity volume: 10 liters to 500 liters .
    • Max pressure: 300 bar; Design temperature up to 350 ℃
    • Low to high torque magnetic couplings: static seal.
    • Lifting device available for reactor head rising and lowering.
    • Available material:SS304, SS316, Titanium, Nickel, Hastelloy B/C, Monel, Zirconium, Inconel, Tantalum
    • Monitor and control: Temperature, pressure, motor speed, operating time, etc
    • Customized according to customers requirement.

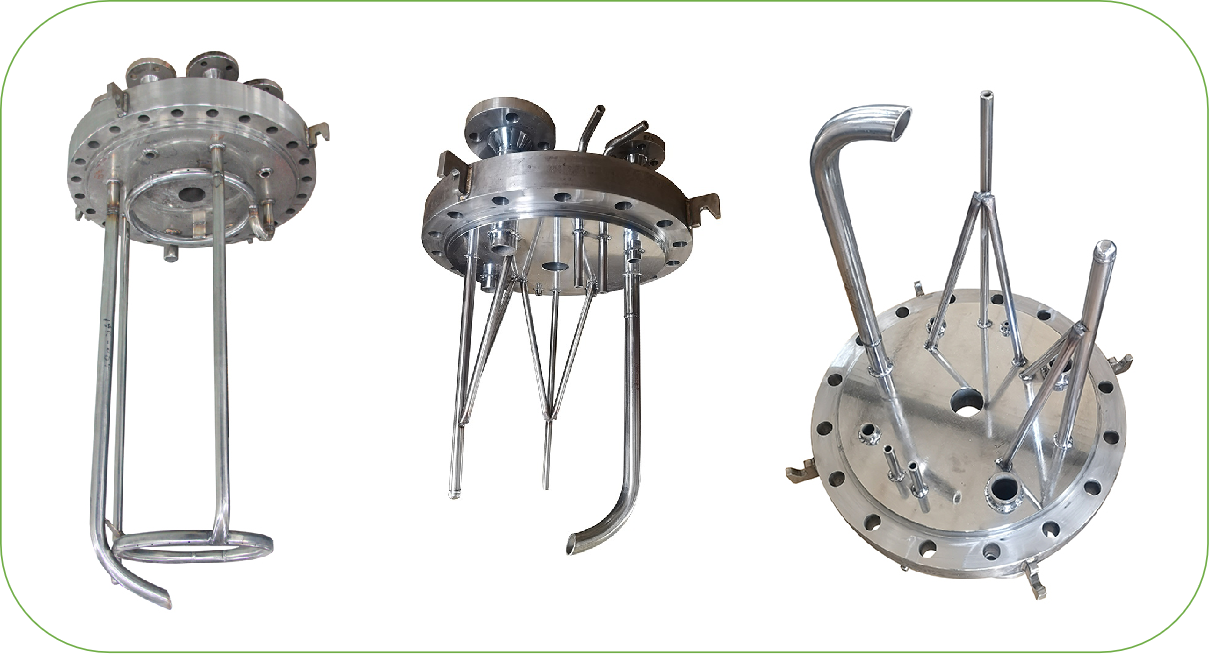

    Internal Components

    Continuous Pilot Reactor with Bottom Drain Valve

    Standard Specifications

    Model No. LECPRBDV-I0 LECPRBDV-20 LECPRBDV-30 LECPRBDV-50 LECPRBDV-100 LECPRBDV-200 LECPRBDV-300 LECPRBDV-500
    Nominal Capacity (L) 10 20 30 50 100 200 300 500
    Design Pressure (bar) 100 100 100 100 -0.1-300 bar customized
    Material SS304 or SS316 wetted parts
    Design Temperature (℃) 350 0~350 customized
    Stirring Speed (r/min) 0-750 0-750 0-500 0-500 0-500 0-450 0-450 0-450
    Motor Power (kW) 0.6 1.1 1.5 1.5 2.2 2.2 4 5.5
    Heating Power (kW) 4 9 9 15 Selection according to the working temperature
    Heating Method Standard electric heating(Thermal oil, steam, far infrared heating available)
    Head type Standard Flat cover type(Ellipsoidal, Conical type available)
    Impeller type (Optional) Propeller, paddle, anchor, spiral, turbine, gas inducing type, etc
    Cooling type (Optional) Spiral cooling cools with cooling water
    Discharging type (Optional) Discharging from bottom or above.
    Control panel PID temperature display and control, accuracy±1 ℃;stirring speed display;
    Operation time display; Heating voltage and current display
    Opening port of head (Optional) Pressure gauge, Safety valve port; Temp. measuring port; Gas and liquid port; Dip tube; Vent port; Solid charging port; Cooling coil inlet and outler port

    Note:

    • The above standard parameters are for reference only. Different processe have their own reasonable selection, not the more complete the function, the better.
    • The structure, specification, nozzle size and orientation need to be confrimed after communicating with us.
