Anti-Corrosion Stirred Autoclave High Pressure Reactors

  • LEACSAHPR anti-corrosion stirred autoclaves are pilot reactors from 10 to 500 L with the wetted material chosen for the process. The head, cylinder, valves, pipe fittings and internal parts use the specified alloy on surfaces exposed to the process medium. The vessel can use solid alloy or an alloy lining; external parts can be lower alloy steel.

    Design

    • Materials: SS304 or SS316 standard. PTFE, Titanium, Nickel, Hastelloy B/C, Monel, Zirconium and Inconel are available.
    • Drive: low to high torque magnetic coupling, static seal with no rotating shaft gland.
    • Head: flat cover as standard. Ellipsoidal and conical heads are available. A lifting device raises and lowers the head.
    • Frame: floor stand or movable cart.
    • Heating: electric as standard. Thermal oil, steam and far infrared heating are available.
    • Control panel: PID temperature display and control with ±1 ℃ accuracy, stirring speed, operation time, heating voltage and current display. Temperature, pressure, motor speed and operating time are monitored.

    Standard models

    ModelCapacityDesign pressureStirring speedMotor power
    LEACSAHPR-I010 L100 bar0 to 750 r/min0.6 kW
    LEACSAHPR-2020 L100 bar0 to 750 r/min1.1 kW
    LEACSAHPR-3030 L100 bar0 to 500 r/min1.5 kW
    LEACSAHPR-5050 L100 bar0 to 500 r/min1.5 kW
    LEACSAHPR-100100 L-0.1 to 300 bar0 to 500 r/min2.2 kW
    LEACSAHPR-200200 L-0.1 to 300 bar0 to 450 r/min2.2 kW
    LEACSAHPR-300300 L-0.1 to 300 bar0 to 450 r/min4 kW
    LEACSAHPR-500500 L-0.1 to 300 bar0 to 450 r/min5.5 kW

    Heating power is 4 kW for 10 L, 9 kW for 20 and 30 L, 15 kW for 50 L, and is selected by working temperature for larger sizes. Structure, nozzle size and orientation are confirmed per project.

    Options

    • Impeller: propeller, paddle, anchor, spiral, turbine or gas inducing
    • Spiral cooling coil with cooling water
    • Bottom or top discharge
    • Head ports: pressure gauge, safety valve, temperature, gas and liquid, dip tube, vent, solid charging, cooling coil inlet and outlet

    Specify for your project

    • Capacity, 10 to 500 L
    • Process medium and the alloy or lining it needs
    • Design pressure, up to 300 bar
    • Design temperature and heating method
    • Head type, impeller and discharge

    This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.

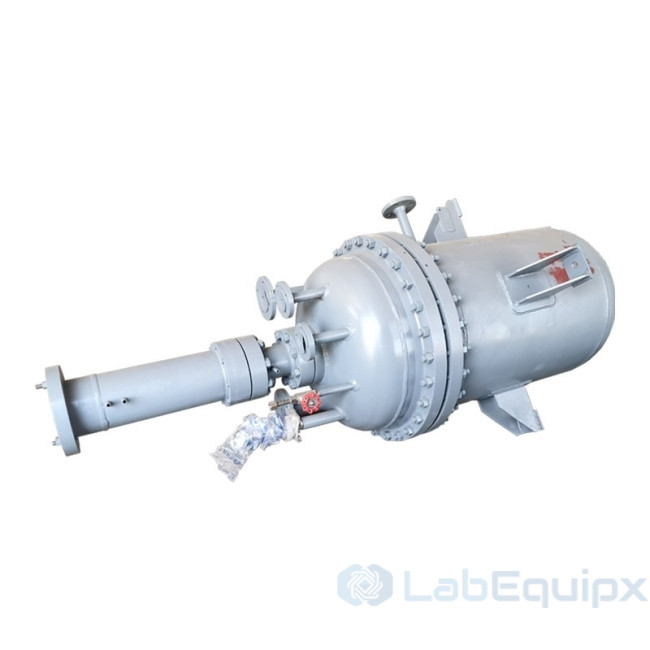

    • Anti-Corrosion Stirred Autoclave High Pressure Reactors

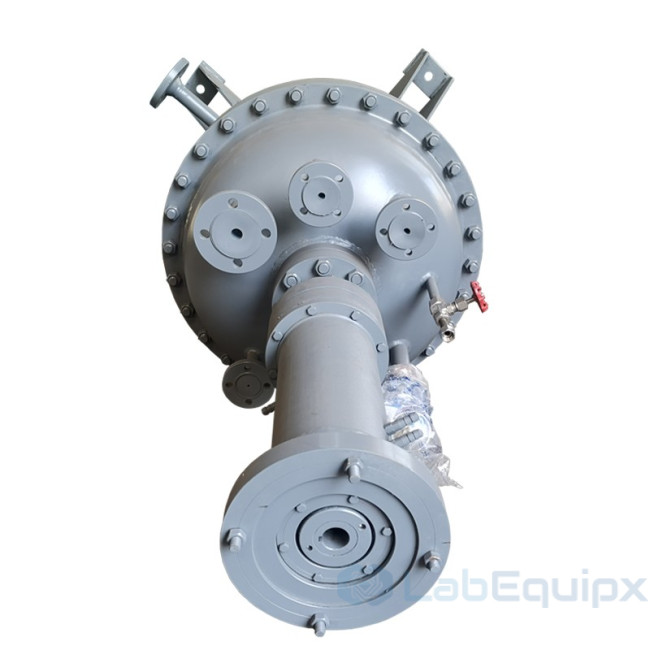

    • Anti-Corrosion Stirred Autoclave High Pressure Reactors

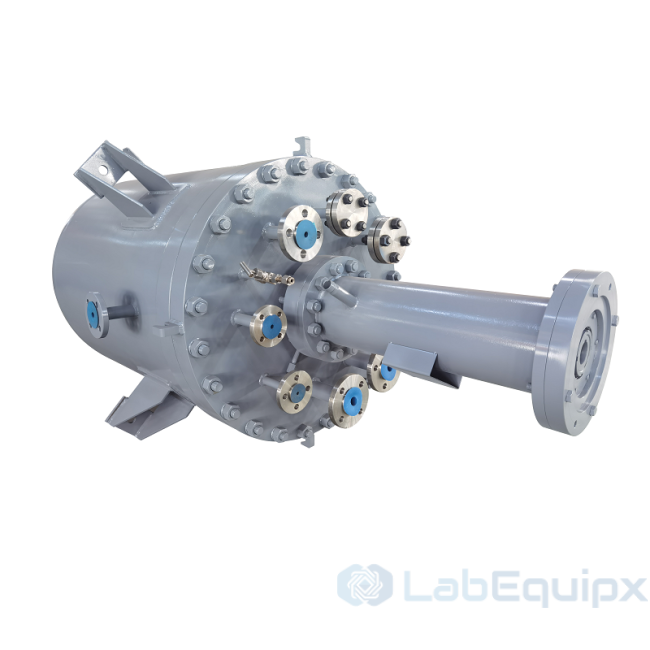

    • Anti-Corrosion Stirred Autoclave High Pressure Reactors

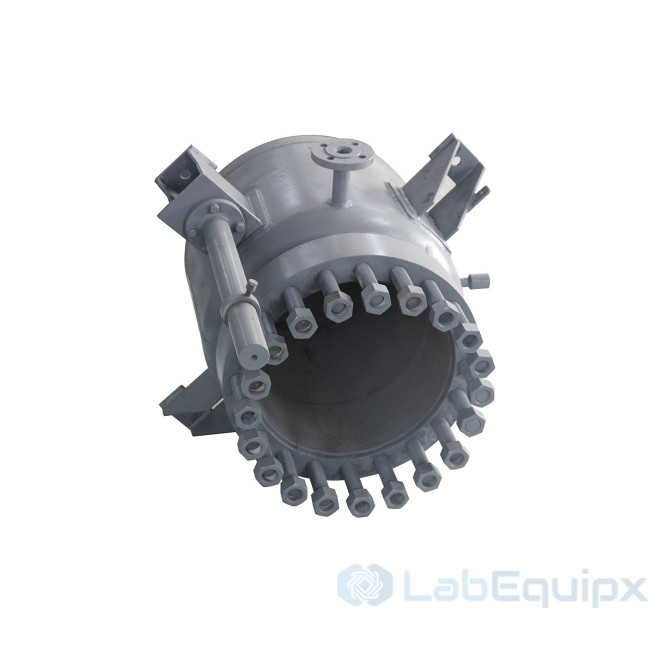

    • Anti-Corrosion Stirred Autoclave High Pressure Reactors
  • Product Features

    • Floor stands or moveable cart type.
    • Capacity volume: 10 liters to 500 liters
    • Max pressure: 300 bar; Design temperature up to 350 ℃
    • Low to high torque magnetic couplings: static seal.
    • Lifting device available for reactor head rising and lowering.
    • Available material:SS304, SS316, PTFE, Titanium, Nickel, Hastelloy B/C, Monel, Zirconium, Inconel.
    • Monitor and control: Temperature, pressure, motor speed, operating time, etc.
    • Customized according to customers requirement.

    Standard Specifications

    Note:

    • The above standard parameters are for reference only. Different processe have their own reasonable selection, not the more complete the function, the better.
    • The structure, specification, nozzle size and orientation need to be confrimed after communicating with us.
    Model No. LEACSAHPR-I0 LEACSAHPR-20 LEACSAHPR-30 LEACSAHPR-50 LEACSAHPR-100 LEACSAHPR-200 LEACSAHPR-300 LEACSAHPR-500
    Nominal Capacity (L) 10 20 30 50 100 200 300 500
    Design Pressure (bar) 100 100 100 100 -0.1-300 bar customized
    Material SS304 or SS316 wetted parts
    Design Temperature (℃) 350 0~350 customized
    Stirring Speed (r/min) 0-750 0-750 0-500 0-500 0-500 0-450 0-450 0-450
    Motor Power (kW) 0.6 1.1 1.5 1.5 2.2 2.2 4 5.5
    Heating Power (kW) 4 9 9 15 Selection according to the working temperature
    Heating Method Standard electric heating (Thermal oil, steam, far infrared heating available)
    Head type Standard Flat cover type (Ellipsoidal, Conical type available)
    Impeller type (Optional) Propeller, paddle, anchor, spiral, turbine, gas inducing type, etc
    Cooling type (Optional) Spiral cooling cools with cooling water
    Discharging type (Optional) Discharging from bottom or above.
    Control panel PID temperature display and control, accuracy±1 ℃;stirring speed display;
    Operation time display; Heating voltage and current display
    Opening port of head (Optional) Pressure gauge, Safety valve port; Temp. measuring port; Gas and liquid port; Dip tube; Vent port; Solid charging port; Cooling coil inlet and outler port
