High Pressure Gas Burette for Stirred Reactors

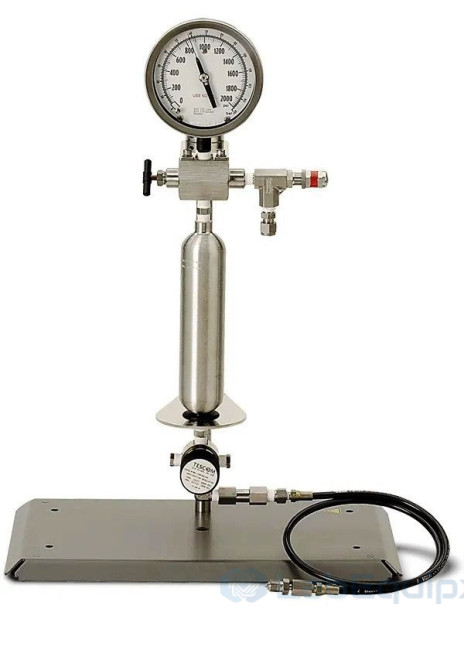

  • High pressure gas burettes feed gas, commonly hydrogen, to a stirred reactor at constant pressure. A high pressure reservoir carries an inlet valve, pressure gage and relief valve. Each assembly includes a constant pressure regulator, check valve, connecting hose and support stand.

    The quantity of gas consumed during a reaction can be calculated from the known reservoir volume and the pressure decrease observed in that reservoir during the run.

    Several burette sizes are available. Each has a regulator suited to its designated delivery pressure range. The accompanying sizing table expresses the stored gas quantity as moles of hydrogen at maximum pressure. The amount that can be delivered is determined by the pressure difference between the burette and the reactor.

    Reservoir selection must account for both gas inventory and the pressure remaining during delivery. The burette needs to hold enough gas to finish the reaction while retaining sufficient pressure to push that gas into the reactor.

    This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.

    • High Pressure Gas Burette for Stirred Reactors
  • Reservoirs are available with greater capacities, and regulators can be supplied for other delivery pressure ranges. An internal reservoir thermocouple, a pressure transducer, or both can be added to the basic assembly. These modifications support digital readout and/or recording of the measured conditions.

    Gas burette capacity selection
    Sample cylinder capacity (mL)Pressure limit (psi)H2 quantity, MolesPressure limit (bar), CE (TPED) design on requestH2 quantity, Moles, CE (TPED) design on request
    15018000.61000.5
    3001.31.1
    5002.31.8
    10004.63.7
    225010.48.5
    15050001.73001.5
    3003.43.0
    5005.75.0
