Catalyst Loading Toolkit for Stirred Reactors
The LECLTSR Catalyst Loading Toolkit holds the thermocouple on the reactor centerline while catalyst and retention material are loaded. This supports more uniform reactant flow through the catalyst bed, repeatable axial bed placement within the furnace and more accurate measurement of internal temperature. These factors improve the reproducibility of experimental data.
The tools let an operator load and remove bulk solids and packing materials, including quartz wool, at defined depths in the annular space around the central thermocouple of a tubular reactor.
The kit includes equipment to keep the thermocouple centered during filling, measure depth within the reactor, fill empty space upstream and downstream of the solids bed, and hook quartz wool plugs for removal. Controlled placement and easier loading and removal help reduce turnaround time between experiments.
This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.

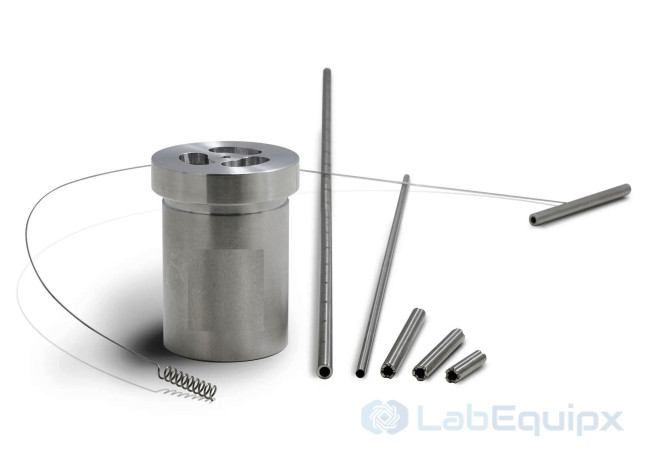

Tools supplied in the kit

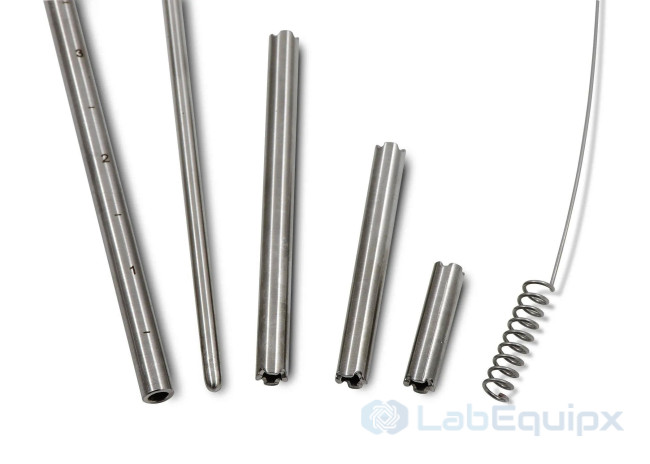

- A. A corkscrew extraction tool removes quartz wool from the annular space surrounding the thermocouple.
- B. A loading funnel holds the centerline thermocouple in position while catalyst powder is added. It is used together with the centering tool.
- C. A packing rod carries a laser-engraved depth scale. It packs quartz wool into the annulus and measures the loading depth as solids are introduced.
- D. A centering tool keeps the thermocouple or thermowell on the vessel centerline while quartz wool or solid material is loaded.
- E. Several spool pieces support the quartz wool and reduce residence time in sections without a solids charge, including the unheated regions at the top and bottom of the heater.
