CT-AP-06-SDSA
Air-Driven Pump 06 Series, Single Drive / Single Acting
The Air-Driven Pump 06 Series, Single Drive / Single Acting (CT-AP-06-SDSA) is a reciprocating pump with one air drive section and one single-acting hydraulic section. Ten standard ratios, from 14:1 to 545:1, give maximum outlet pressures from 1,600 psi to 60,000 psi (4137 bar). Flow reaches 19.9 l/min on the lowest ratio. The pump is listed for solvents, mild chemicals and liquefied gases, with a choice of wetted materials.
How it works
Drive air at 3 to 150 psi (0.2 to 10.3 bar) enters the 3/4 in female NPT air port. Outlet pressure is set by drive air pressure and ratio. At that pressure the pump stalls and holds without consuming energy; it needs no electrical supply. Displacement per cycle falls from 66.4 ml at 14:1 to 1.5 ml at 545:1, so the higher ratios trade flow for pressure.
Model Max. outlet pressure, psi Ratio Displacement per cycle, ml Max. flow, l/min Inlet, FNPT Outlet LE06-1S-10 1,600 14:1 66.4 19.9 1 in 1/2 in FNPT LE06-1S-15 2,400 18:1 44.3 13.3 1 in 1/2 in FNPT LE06-1S-25 4,000 30:1 26.6 8 1/2 in 1/2 in FNPT LE06-1S-35 5,700 45:1 19.0 5.7 1/2 in 1/2 in FNPT LE06-1S-60 10,000 72:1 11.0 3.3 1/2 in 1/2 in FNPT LE06-1S-100 15,000 120:1 6.7 2 1/2 in 1/2 in FNPT LE06-1S-150 22,500 180:1 4.5 1.3 1/2 in 1/4 in HF LE06-1S-225 33,750 270:1 3.0 0.7 1/2 in 1/4 in HF LE06-1S-300 45,000 360:1 2.3 0.5 1/2 in 1/4 in HF LE06-1S-450 60,000 545:1 1.5 0.3 1/2 in 1/4 in HF HF denotes a female high pressure connection.
What is included
- Pump of the selected standard model code, with ports as tabulated
- Options by suffix: A angle pump, -Q quick repair, -R relief valve, -V Viton seals, -P pressure switch valve, -C cold area service, -C2 liquid CO2
Specify for your project
- Required outlet pressure and flow, which select the ratio
- Drive air pressure available, within 3 to 150 psi
- Pumped medium: solvent, mild chemical or liquefied gas
- Wetted materials and seal material
- Suffix options, or other sizes, materials and types on request
This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.
Performance and Specification Pump LE06 Series:
Pump Model Code Max.Out Press. Actual Ratio Dis. /Cycle Max.Flow Inlet Port Outlet Port LE06-1S-10 1600psi 14:1 66.4ml 19.9l/min 1 "FNPT 1/2"FNPT LE06-1S-15 2400psi 18:1 44.3ml 13.3l/min 1 "FNPT 1/2"FNPT LE06-1S-25 4000psi 30:1 26.6ml 8l/min 1/2"FNPT 1/2"FNPT LE06-1S-35 5700psi 45:1 19.0ml 5.7l/min 1/2"FNPT 1/2"FNPT LE06-1S-60 10000psi 72:1 11.0ml 3.3l/min 1/2"FNPT 1/2"FNPT LE06-1S-100 15000psi 120:1 6.7ml 2 l/min 1/2"FNPT 1/2"FNPT LE06-1S-150 22500psi 180:1 4.5ml 1.3l/min 1/2"FNPT 1/4"HF LE06-1S-225 33750psi 270:1 3.0ml 0.7l/min 1/2"FNPT 1/4 "HF LE06-1S-300 45000psi 360:1 2.3ml 0.5l/min 1/2"FNPT 1/4"HF LE06-1S-450 60000psi 545:1 1.5ml 0.3l/min 1/2"FNPT 1/4"HF * HF means female high pressure connection.
Dimensions (in.(mm):
* Air IN port is 3/4 female NPT for standard pumps.
Explain:
- All model code listed are standard.
- For angle pumps add “A” after the model codes.
- For Quick repair pumps add “-Q” after the model codes.
- For pumps with relief valve add “-R” after the model codes.
- For pumps with Viton seals add “-V” after the model codes.
- For pumps with Pressure switch valve add “-P” after the model codes.
- For cold area service add “-C” after the model codes.
- For liquid CO2 add “-C2” after the model codes.
- Other sizes, materials and types are available upon request.

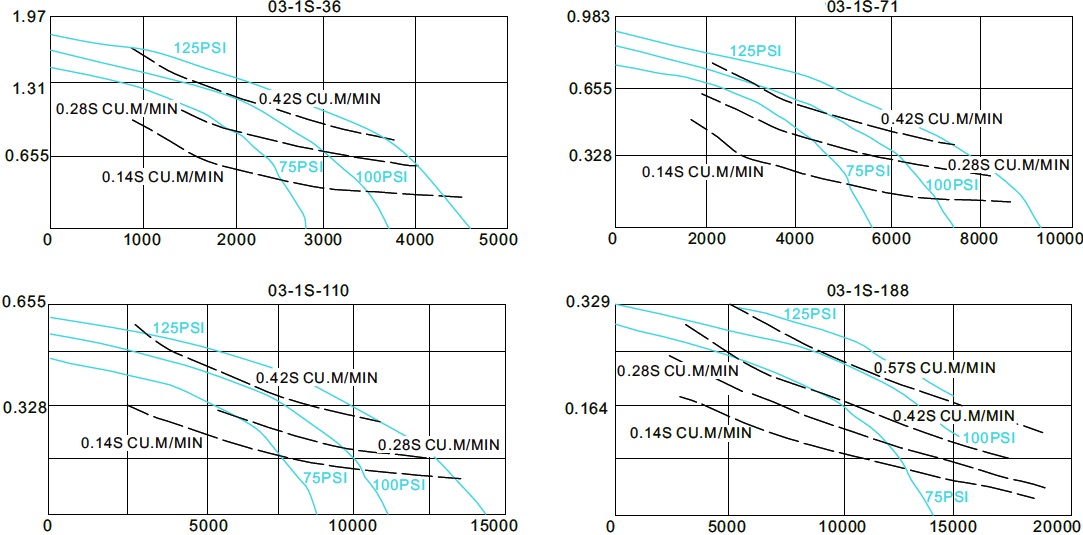

Perfomance Curves:
- LIQUID FLOW-LTRES/MIN.
- OUTLET PRESSURE(PSI).
