CT-AP-06-LSSD

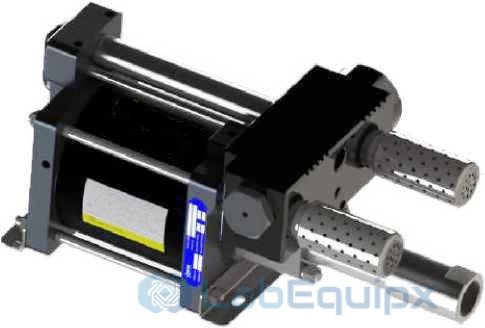

Air-Driven Pump 06 Series, Long Stroke Single Drive / Double Acting
The Air-Driven Pump 06 Series, Long Stroke Single Drive / Double Acting (CT-AP-06-LSSD) is a reciprocating liquid pump driven by compressed air. One air drive piston acts on a long-stroke, double-acting hydraulic section, so liquid is delivered on both directions of the stroke. Five ratios cover output pressures from 1,000 psi to 10,000 psi (690 bar) and flows up to 132 l/min. The pump handles hydraulic fluids, plain or deionized water and solvents, with a choice of wetted materials.
How it works
Drive air at 3 to 125 psi (0.2 to 8.6 bar) enters the 3/4 in FNPT air port and reciprocates the drive piston. The area ratio between the drive piston and the hydraulic plunger multiplies the air pressure, so output pressure is the drive pressure times the pump ratio. When the outlet reaches the pressure set by the air supply, the pump stalls and holds that pressure without consuming energy; it restarts as soon as pressure falls. No electrical supply is required. The liquid inlet is 1-1/4 in FNPT on all models.
Model Max. outlet pressure Ratio Displacement per cycle Max. flow Outlet port LE06-1D-7L 1,000 psi 8.2:1 463 ml 132 l/min 3/4 in FNPT LE06-1D-12L 1,850 psi 14:1 260 ml 82.1 l/min 3/4 in FNPT LE06-1D-35L 4,375 psi 40:1 98 ml 31 l/min 1/2 in FNPT LE06-1D-60L 7,500 psi 69:1 57 ml 18.1 l/min 1/2 in FNPT LE06-1D-100L 10,000 psi 120:1 32 ml 10.7 l/min 1/2 in FNPT What is included
- Pump in the selected ratio, standard model code, with 1-1/4 in FNPT inlet and 3/4 in FNPT air port
- Options by model suffix: -R relief valve, -V FKM (Viton) seals, -P pressure switch valve, -C cold area service, -C2 liquid CO2 service
Specify for your project
- Required outlet pressure and flow, which select the ratio
- Available drive air pressure within 3 to 125 psi
- Pumped liquid: hydraulic oil, plain or DI water, solvent or liquid CO2
- Wetted materials and seal material
- Options required: relief valve, pressure switch valve, cold area service
- Other sizes, materials or types, which are available on request
This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.
Performance and Specification Pump LE06 Series Long Stroke Single Drive/Double Acting:

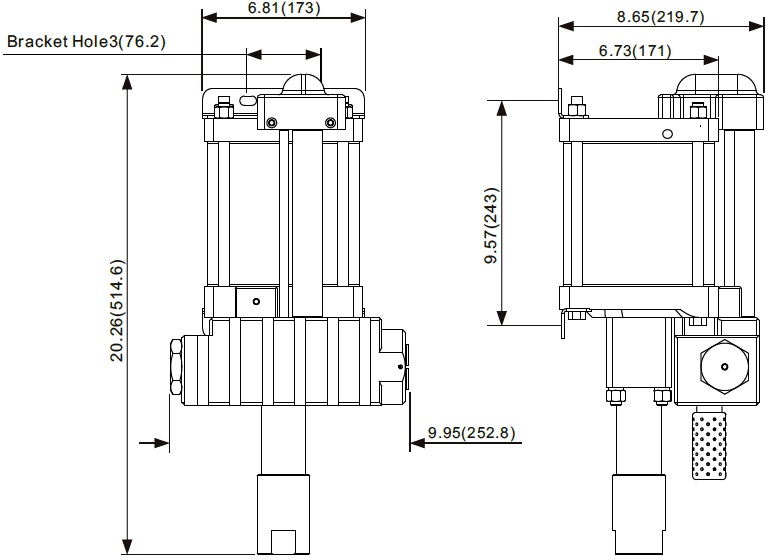

Pump Model Code Max.Out Press. Actual Ratio Dis. /Cycle Max.Flow Inlet Port Outlet Port LE06-1D-7L 1000psi 8.2:1 463ml 132 l/min 1 -1/4"FNPT 3/4"FNPT LE06-1D-12L 1850psi 14:1 260ml 82.1 l/min 1 -1/4"FNPT 3/4"FNPT LE06-1D-35L 4375psi 40:1 98ml 31 l/min 1 -1/4"FNPT 1/2"FNPT LE06-1D-60L 7500psi 69:1 57ml 18.1 l/min 1 -1/4"FNPT 1/2"FNPT LE06-1D-100L 10000psi 120:1 32ml 10.7 l/min 1 -1/4"FNPT 1/2"FNPT Dimensions (in.(mm):
* Air IN port is 3/4 female NPT for standard pumps.
Explain:
- All model code listed are standard.
- For pumps with relief valve add “-R” after the model codes.
- For pumps with Viton seals add “-V” after the model codes.
- For pumps with Pressure switch valve add “-P” after the model codes.
- For cold area service add “-C” after the model codes.
- For liquid CO2 add “-C2” after the model codes.
- Other sizes,materials and types are available upon request.

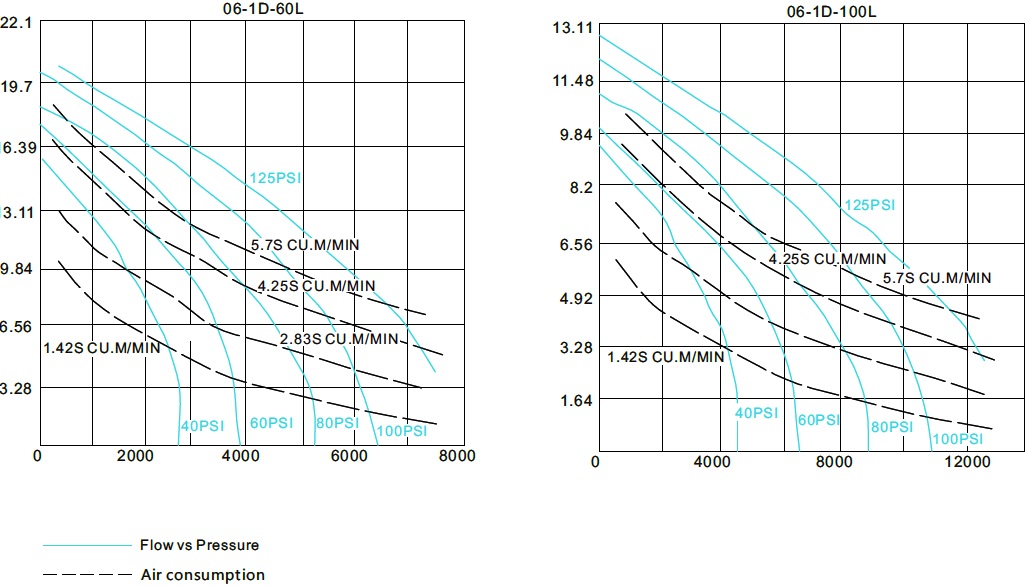

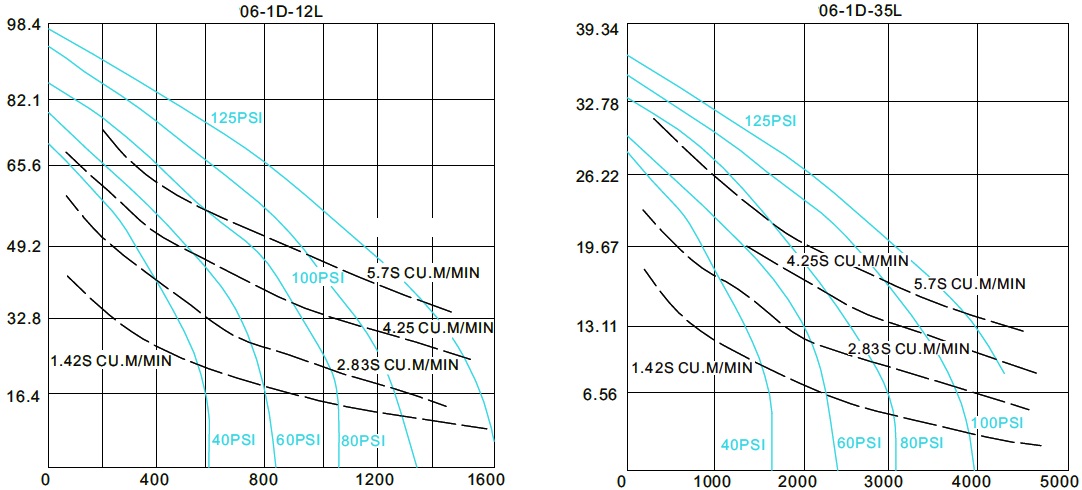

Perfomance Curves:
- LIQUID FLOW-LTRES/MIN.
- OUTLET PRESSURE(PSI).
