Low pressure gas adsorption isotherm system

  • The low-pressure instrument establishes adsorption isotherms by measuring how much gas a solid retains at equilibrium. Coal and shale are examples of adsorbents; methane and CO2 are examples of adsorbed gases. Measurements define the maximum retained gas volume for the selected temperature and pressure.

    An isothermal volumetric procedure supplies the measurement. The reference chamber and sample chambers stay at constant temperature. Continuous observation of their pressure and volume provides the data used to determine gas uptake.

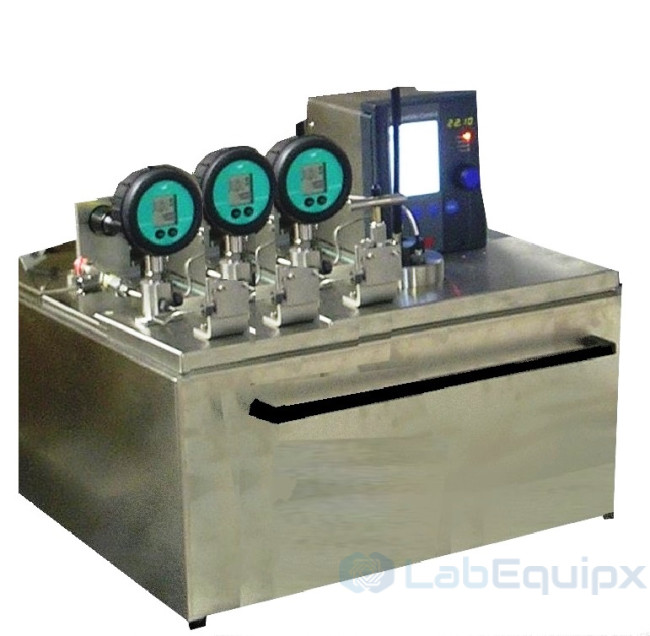

    The apparatus contains two cells for samples, one reference chamber and three pressure transducers. A thermostatic bath maintains the test temperature. A supplied spreadsheet accepts the recorded temperature and pressure values and produces the adsorption-isotherm report.

    This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.

    • Low pressure gas adsorption isotherm system
  • Low-pressure operating envelope

    • The pressure limit is 1,800 psi; temperature must not exceed 120°C.
    • The sample chamber holds 100 ml. The reference chamber holds 300 ml.
    • The apparatus uses stainless steel construction.

    Gas feeds and electrical service

    • Provide test gas at 2,000 psi and helium at 2,000 psi.
    • The electrical service must provide 110-220 VAC at 50 Hz or 60 Hz.

    Operation

    • The system uses a straightforward operating procedure.
