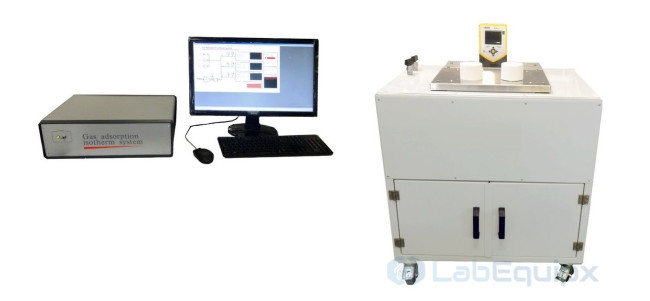

Gas adsorption Isotherm System
This instrument measures equilibrium gas uptake by a solid and builds the corresponding adsorption isotherm. Test pairs can combine methane or CO2 as the adsorbed gas with coal, shale or another adsorbent. For a selected pressure and temperature, the result gives the maximum volume of gas held by the solid at equilibrium.
The measurement uses an isothermal volumetric procedure. A reference cell and a test cell remain at a fixed temperature while the instrument continuously tracks the pressure and volume in each. These readings determine the adsorption response.
Computer control automates the complete test, including gas admission, pressure tracking and data collection. The system can incorporate as many as four test chambers. Each chamber runs independently, so several tests can proceed at the same time.
This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.
Operating ratings and cell sizes
- The pressure ceiling is 10,000 psi, and temperature must not exceed 175°C.
- The test sample occupies a cell with 100 ml capacity.
- The reference chamber has a volume of 300 ml.
- Stainless steel is the construction material.
Supply connections
- The test-gas feed requires 3,000 psi.
- The helium feed also requires 3,000 psi.
- Provide compressed air at 100 psi.
- Electrical input is 110-220 VAC; supply frequency may be 50 Hz or 60 Hz.
Test operation
- Automation covers the complete test sequence.
- Configurations can use two sample cells or accommodate multiple samples.
- The operating procedure is straightforward.
