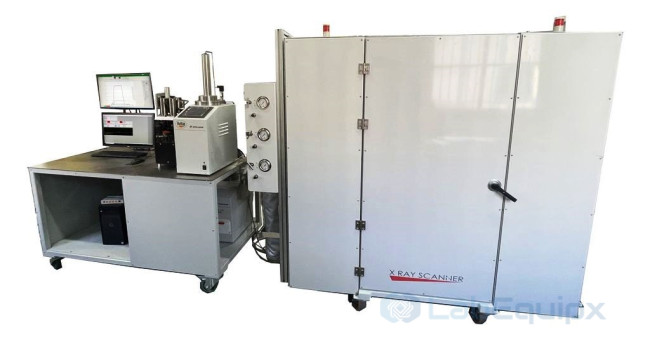

X-Ray Relative Permeameter

Function. Performs unsteady-state and steady-state relative permeability studies for liquid/liquid and liquid/gas at reservoir conditions with in-line X-ray saturation monitoring.

Controlled. Confining and pore pressure; temperature; injection rate.

Measured. Relative permeability with in-situ saturation profile.

Sample count, pressure and temperature ratings, wetted materials, seals and instrumentation are configured per project. Guaranteed performance and included hardware are stated only in the project-specific technical proposal and approved datasheet.

Features

• Maximum confining pressure : 700 bar (10,000 psi)
• Maximum confining pressure : 700 bar (10,000 psi)
• Maximum pore pressure : 700 bar (10,000 psi)
• Maximum working temperature : 150°C
• Fluid flow : Recirculated fluid phases
• Core diameter : 1"1/2 other upon request
• Core length : 1" to 12" other upon request
• Flow rate: 0.005 to 30 cc/min
• Material: Stainless steel
• X-ray source :90 kV, 4 mA
• Wetted parts: Stainless steel
• Power supply: 220VAC, 50/60 Hz
• Air Pressure requirements: 7 bar (100 psi)

Benefits

• Conducts both unsteady and steady state methods
• Core saturation is measured by the linear X-ray scanner at reservoir conditions
• Compact system
