X-Ray Computed Tomography Scanner

  • The X-Ray Computed Tomography Scanner (model CT-ISS-CT) produces in-situ saturation profiles and derived properties of single-phase and multiphase core samples. A multi-slice scanner with 64 detector arrays is combined with a core holder rated for reservoir conditions, and the assembly can be coupled with the flow recirculation systems from the same range.

    How it works

    A core of 1.5 in diameter and 4 to 12 in length (other sizes on request) is loaded in the core holder, which applies confining pressure up to 700 bar (10,000 psi) and pore pressure up to 700 bar, and holds the sample at up to 150 °C with a homogeneous temperature control system. While fluids are flowed, the scanner acquires cross-sectional images: 128 slices per rotation, 0.625 mm slice thickness, 0.187 mm smallest pixel, 0.31 mm cubed isotropic spatial resolution, rotation time 0.5 to 1 s, and 30 cm of coverage in under 4 s at pitch 1.53. The tube voltage is selectable at 80, 100, 120 or 140 kVp, and single and dual energy scanning modes are provided. Scan geometry and reconstruction are the controlled variables; the reconstructed images give the density distribution and volumetric saturation along the core.

    The scanner requires a 380 VAC, three-phase, 100 kW supply, with a maximum power consumption of 54 kVA, and compressed air at 7 bar (100 psi).

    What is included

    • X-ray CT scanner, 64 detector arrays, 54,272 elements, single and dual energy
    • Core holder, 700 bar confining and pore pressure, 150 °C, with homogeneous temperature control
    • Consultancy for the location, design and construction of the scanner room to the applicable HSEQ norms

    Specify for your project

    • Core diameter and length if different from 1.5 in and 4 to 12 in
    • Confining and pore pressure and temperature required within the 700 bar and 150 °C ratings
    • Fluids to be flowed, to select wetted materials and seals
    • Whether the scanner is to be coupled with a flow recirculation system, and which one
    • Site utilities: 380 VAC three-phase 100 kW, 7 bar air, and the room available for the scanner

    This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.

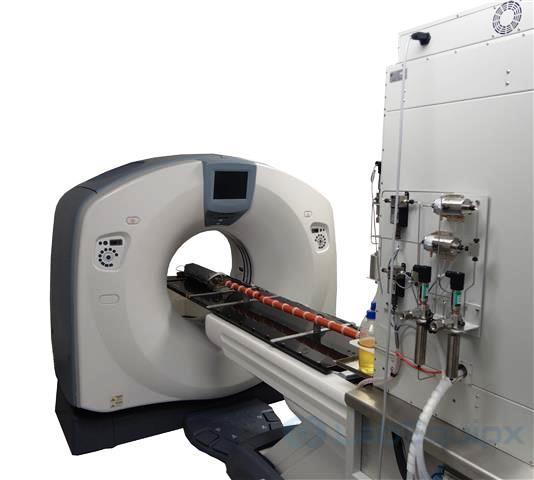

    Model: LEXRCTS

    • X-Ray Computed Tomography Scanner
  • Key data

    • Detector: 64 arrays, 128 slices per rotation, 54,272 elements.
    • Tube voltage settings: 80, 100, 120, 140 kVp.
    • Maximum power consumption is 54 kVA.
    • Spatial isotropic resolution is 0.31 mm3, with a pixel of 0.187 mm at smallest and a slice thickness of 0.625 mm.
    • Scanning covers 30 cm in under 4 seconds at pitch 1.53, and dual energy is provided.
    • Rotation time can be set to .5, .6, .7, .8, .9 or 1 sec.
    • Confining pressure and pore pressure each reach 700 bar at most.
    • The working temperature reaches 150°C at most.
    • Cores of 1.5 inches diameter and 4 to 12 inches length fit; other sizes are available on request.
    • Services: 380 VAC, 3 phases, 100 kwatts, and compressed air at 7 bar.

    Advantages

    • Consultancy on location, design and construction of the CT scanner room is available on request, so that the room meets HSEQ norms and offers a safe, hazard-free setting.
    • The scanner suits petroleum engineering work.
    • The core holder includes uniform temperature control.
    • The scanner works in single and dual energy modes.
    • It can be coupled to flow recirculation systems from the same range.
