CT-ISS-LXR
Linear X-Ray Saturation Scanner

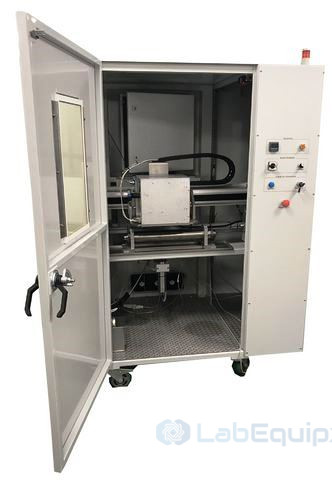

The Linear X-Ray Saturation Scanner, model CT-ISS-LXR, measures the fluid saturation profile along a core plug while it is being flooded, so that fluid distribution inside the core is known during the test and not only at the endpoints. An X-ray source traverses a pressurized core holder and the attenuation at each position is converted to local saturation for single-phase and multiphase samples. It is used for relative permeability and displacement studies and can be coupled to any Coretest flow recirculation system.
How it works
The core holder accepts 1.5 in. diameter plugs of 4 to 12 in. length (other sizes on request) at confining and pore pressures up to 700 bar (10,000 psi) and working temperatures up to 150 °C, with a homogeneous temperature control system around the holder. The X-ray source is rated 90 kV, 4 mA. The scanner steps along the core under automatic control; the controlled variables are scan position and integration, and the measured variable is the saturation profile along the core. Single-energy and dual-energy scanning modes are available. The holder can be mounted horizontally or vertically to study heterogeneity, anisotropy and gravity effects.
The source and core holder sit inside a thick stainless steel enclosure that isolates X-ray radiation from the operator. Power is 220 VAC, 50/60 Hz; instrument air at 7 bar (100 psi) is required.
What is included
- Linear scanning X-ray source, 90 kV, 4 mA
- Core holder for 1.5 in. plugs, 4 to 12 in. long, rated 700 bar and 150 °C, with temperature control
- Horizontal or vertical holder mounting
- Radiation-isolating stainless steel enclosure
- Flow recirculation system and instrumentation: stated in the project datasheet
Specify for your project
- Core diameter and length
- Confining pressure, pore pressure and temperature
- Single- or dual-energy scanning and the phases to be resolved
- Horizontal, vertical or both mounting orientations
- Flow system to be coupled and its wetted materials
- Supply voltage and air supply
This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.
Model: LELXR
Key data
- Confining pressure and pore pressure each reach 700 bar at most.
- The working temperature reaches 150°C at most.
- Cores of 1”5 diameter fit, with lengths of 4” to 12”; other sizes are available on request.
- The X-ray source is rated 90 kV and 4 mA.
- Services: 220 VAC at 50/60 Hz, and compressed air at 7 bar.
Advantages
- The core holder can be mounted horizontally or vertically, which allows studies of heterogeneity, anisotropy and gravity effects.
- The core holder includes uniform temperature control.
- The scanner works in single and dual energy modes.
- It can be coupled to flow recirculation systems from the same range.
- A thick stainless-steel enclosure blocks X-ray radiation and protects the operator.
