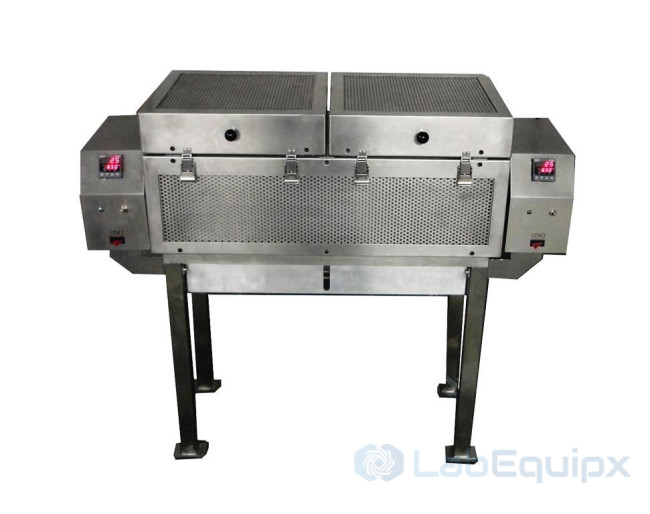

Retort Oven

Function. Determines liquid saturations in cores containing water and/or liquid hydrocarbons by retorting.

Controlled. Retort temperature program.

Measured. Water and hydrocarbon saturation.

Sample size, pressure and temperature ratings, wetted materials and instrumentation are configured per project. Guaranteed performance and included hardware are stated only in the project-specific technical proposal and approved datasheet.

Features

• Sample bomb capacity: 100 grams of crushed core material
• Receiving tube capacity: 20 ml (other size upon request)
• Number of sample bomb / receiving tube: 10 Max
• Temperature: 650°C (1,200 °F)
• Material: carbon refractory steel
• Weight: 50 kg
• Dimensions: 104 x 88 x 32 cm
• Electrical : 220V, 50Hz
