Rotating Disk Reactor
Send a request
CT-STIM-RDR
Rotating Disk Reactor
Function. Studies reaction rates between fluids and solid surfaces using a rock disk rotating at constant velocity.
Controlled. Disk rotation speed; temperature; fluid.
Measured. Reaction/dissolution rate.
Pressure and temperature ratings, wetted materials, cell geometry and instrumentation are configured per project. Guaranteed performance and included hardware are stated only in the project-specific technical proposal and approved datasheet.

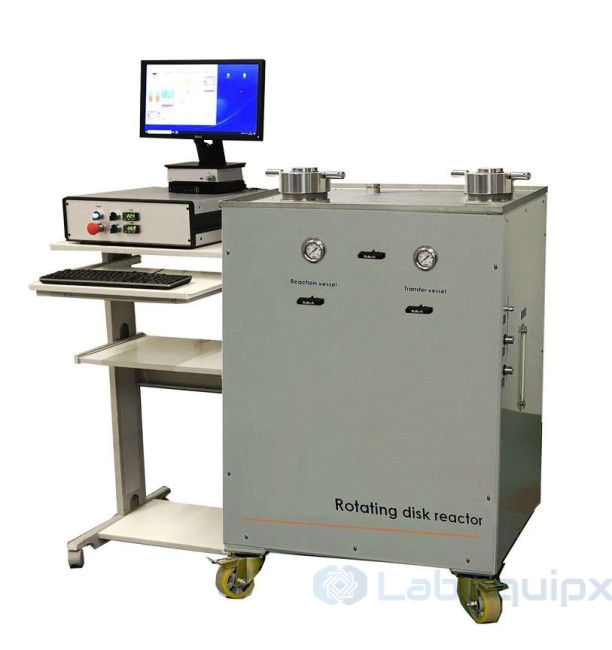

Model: LERDR350
Reactor operating envelope
- Pressure must not exceed 5,000 psi; the maximum operating temperature is 250°C.
- The reaction chamber holds 500 ml, while the reservoir vessel also holds 500 ml.
- Disk speed ranges from 100 RPM to 2,000 RPM.
- Hastelloy is the specified construction material.
Disk dimensions
- Use a sample disk with a diameter of 1.5 inches.
- Disk thickness is 1 inch, equivalent to 25.4 mm.
Service connections
- The electrical service must provide 220 VAC at 50Hz.
- Supply N2 at a pressure of 2,000 psi.
- Provide dry compressed air at 150 psi.
