Matrix Acidizing Tester
Send a request
CT-STIM-MAT

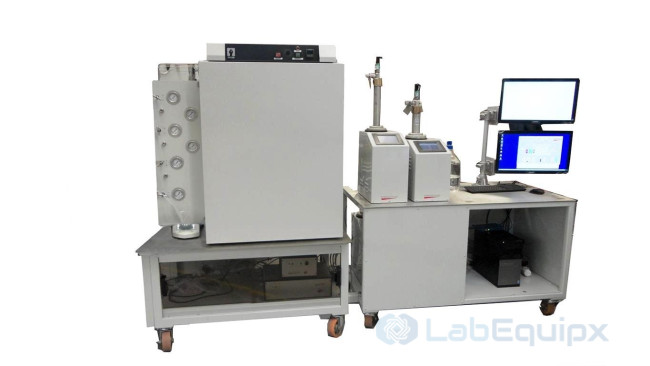

Matrix Acidizing Tester
This tester studies how acid dissolves the mineral framework of reservoir rock. It evaluates treatment effectiveness under conditions representative of the reservoir.
During a test, the system controls acid injection, specimen confinement, pore pressure and temperature. Measurements track dissolution and the resulting change in permeability.
Each project specifies the pressure limits, thermal ratings, materials exposed to fluid, test-cell geometry and instrumentation.
This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.
Pressure and thermal limits
- The confining circuit has a ceiling of 700 bar (10,150 psi).
- Pore pressure can also reach 700 bar (10,150 psi).
- The upper working temperature is 150°C.
Sample arrangement and construction
- The core sits horizontally in the tester.
- Core diameter is 1.5 inches. Alternative diameters are on request.
- The accepted length range is 2 inches to 6 inches; other lengths are on request.
- The specified construction material is Hastelloy.
Required utilities
- Electrical input is 220 VAC at a frequency of 50Hz.
- Provide air at 7 bar (101 psi).
