Proppant Conductivity System

  • Function. Evaluates proppants used in fracture-enhancement projects by measuring short-term proppant-pack conductivity.

    Controlled. Closure stress; temperature; flow.

    Measured. Proppant-pack conductivity.

    Pressure and temperature ratings, wetted materials, cell geometry and instrumentation are configured per project. Guaranteed performance and included hardware are stated only in the project-specific technical proposal and approved datasheet.

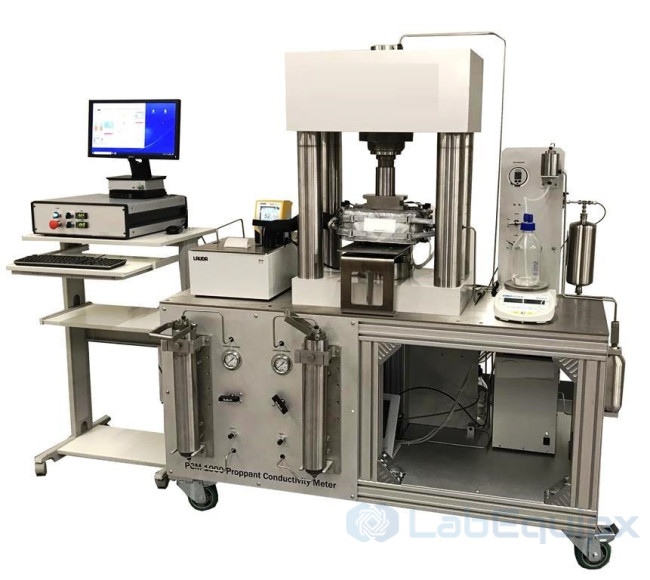

    Model: LEPCM1000

    • Proppant Conductivity System
  • Test methods and load limits

    • Test-method references are ISO 13503-5 and API 56 & 58.
    • Closure stress can reach 20,000 psi; pore pressure is limited to 1,000 psi.
    • The conservative temperature ceiling is 350 F.
    • Pack-thickness measurement accuracy is +/- 0.001 inches.

    Specimen and construction

    • The specimen is 7 inches long and 1.5 inches wide.
    • The specified specimen height arrangement is 2 x 3/8 inches.
    • Construction uses stainless steel.

    Utility requirements

    • Electrical input is 220 VAC, with either 50Hz or 60Hz frequency.
    • Supply N2 at 2,000 psi and compressed air at 100 psi.
