Fracture Conductivity System

  • Function. Determines short-term and long-term fracture conductivity under realistic downhole conditions of stress, temperature and fluid.

    Controlled. Closure stress; temperature; fluid flow.

    Measured. Fracture conductivity over time.

    Pressure and temperature ratings, wetted materials, cell geometry and instrumentation are configured per project. Guaranteed performance and included hardware are stated only in the project-specific technical proposal and approved datasheet.

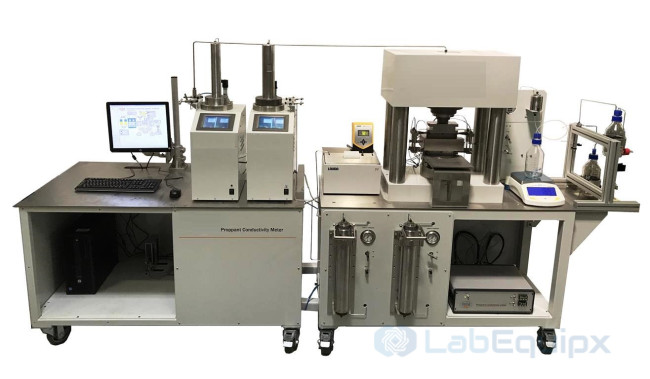

    Model: LEFCM1000

    • Fracture Conductivity System
  • Stress, pressure and temperature

    • The closure-stress ceiling is 20,000 psi.
    • Temperature control extends from ambient conditions to a conservative maximum of 350 F.
    • Pressure within the fracture can reach 1,000 psi.

    Specimen geometry and materials

    • The specimen length is 7 inches, with a width of 1.5 inches.
    • The height arrangement is specified as 2 x 1 inches.
    • The system uses stainless steel construction.

    Services needed for operation

    • Provide 220 VAC electricity at either 50Hz or 60Hz.
    • The nitrogen supply, N2, must provide 2,000 psi.
    • Compressed-air supply pressure is 100 psi.
