Cyclic Mutiple Function Salt Spray Damp/Hot Drying Corrosion Test Chamber
LEGFOGGSSP chambers run salt spray and cyclic corrosion tests on coated and plated parts. Instead of the continuous 35 °C salt fog of the conventional method, the specimens cycle through fog, dry-off and dwell, and on humidity-equipped models 100% humidity, in a repeating sequence that follows the wet and dry pattern of outdoor exposure. Coating, plating and component labs use them for relative corrosion testing of painted finishes, aerospace and military parts and electrical systems.
How it works
A built-in microprocessor controls test conditions, time and temperature, and the operator creates new cycles or runs stored ones. A variable speed peristaltic pump sets the amount of salt liquid delivered to the atomizer, while an air pressure regulator sets the throw distance, so volume and distance are adjusted independently. An internal chamber heater and a high volume cooling and dry-off blower change temperature quickly; an extra air heater gives low humidity dry-off. Purified water is required.
- Internal reservoir: 120 liter, enough for most tests of 7 days or more, with salt filter and low-level alarm
- Low belt line and easy opening lid for sample mounting
- Self-diagnostics with warnings, service reminders and safety shutdown
Typical applications
- Prohesion cycles for industrial maintenance coatings
- ASTM B117 and G85
- BS 3900 F4 and F9
- DIN 50.021 and ISO 9227
- Multi-step cyclic automotive tests (humidity version)
Models
Model Chamber volume Panel capacity, 75 x 150 mm LEGFOGGSSP-600 640 liter about 160 LEGFOGGSSP-1100 1103 liter 240 Each size is listed in two versions: salt spray and Prohesion, or salt spray, Prohesion and 100% humidity. The code of the humidity version is given on request.
Specify for your project
- Test standards and cycles to run
- Chamber size, 640 or 1103 liter
- Whether 100% humidity steps are needed
- Panel size and quantity
- Purified water supply
This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.
LEGFOGGSSP cyclic corrosion chambers can run traditional salt spray, Prohesion, and most cyclic automotive tests. Chambers are available in different sizes to fulfill a wide range of testing requirements.
Cyclic Corrosion Testing
Prior to cyclic corrosion testing, conventional salt spray (a continuous salt spray at 35˚C), was the standard way to simulate corrosion in a lab. Because conventional salt spray methods failed to mimic the natural wet/dry cycles of the outdoors, test results frequently provided poor correlation to outdoors.
In a cyclic corrosion tester, specimens are exposed to a series of different environments in a repetitive cycle that mimics the outdoors. Simple cycles, such as Prohesion, may consist of cycling between salt fog and dry conditions. More sophisticated automotive methods may call for multi-step cycles that incorporate humidity or condensation, along with salt spray and dry-off.
Within one chamber, it is possible to cycle through a series of the most significant corrosion environments. Even extremely complex test cycles can easily be programmed with the controller.
Corrosion test chambers are available in two types. Model GSSP performs traditional salt spray and Prohesion tests. Model GCCT performs salt spray, Prohesion, and 100% humidity for most cyclic automotive tests.
Easy Programming and Sample Mounting

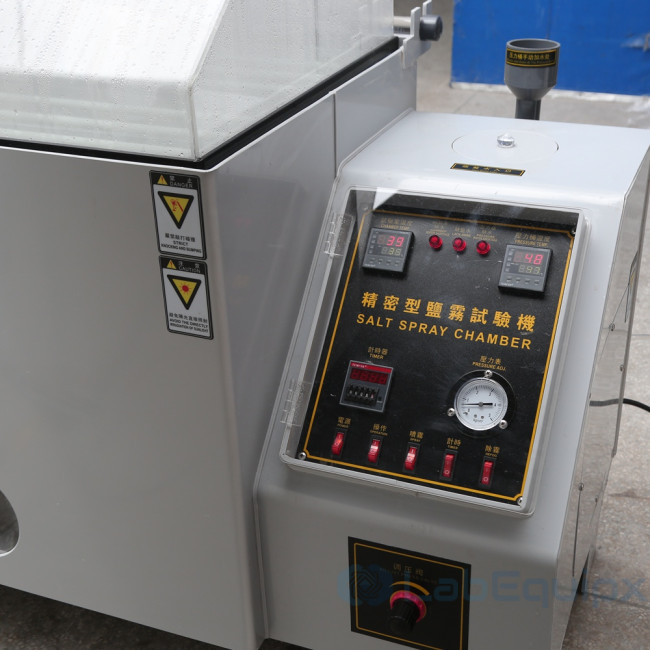

The test chamber is designed to cycle between four conditions: Fog, Dry-Off, 100% Humidity (Model GCCT only), and Dwell. Test conditions, time, and temperature are controlled by a built-in microprocessor. A remarkably simple user interface allows for easy user programming and operation. The operator can quickly create new cycles, or run any of the programmed cycles. The controller includes complete self-diagnostics, including warning messages, routine service reminders and safety shut down.

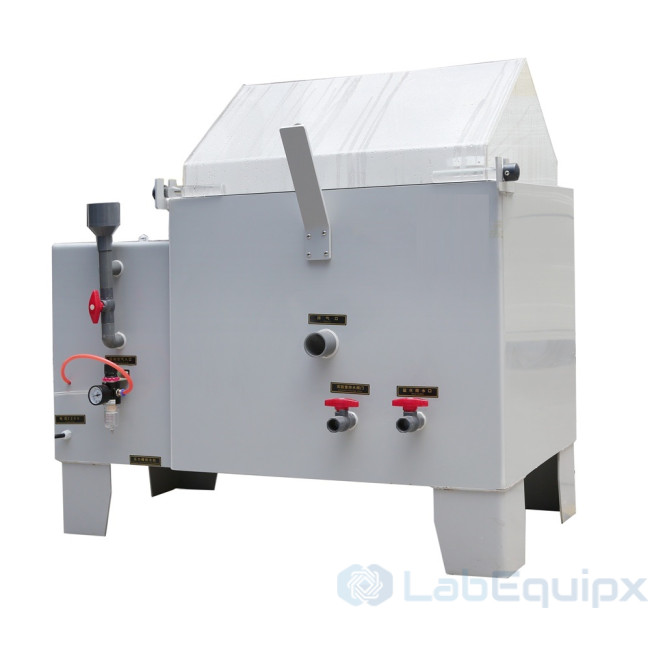

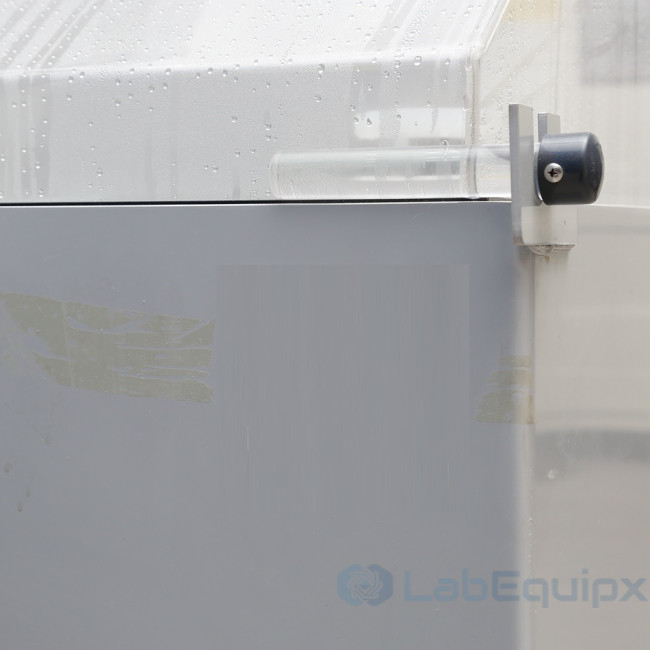

The tester has a low belt line and an easy opening lid for easy sample mounting. The GSSP-600 and GCCT-600 models have a capacity of about 160 test panels of 75mm x 150mm in size. The GSSP-1100 and GCCT-1100 models have a capacity of 240 test panels.
Precise Control of Fog Dispersion

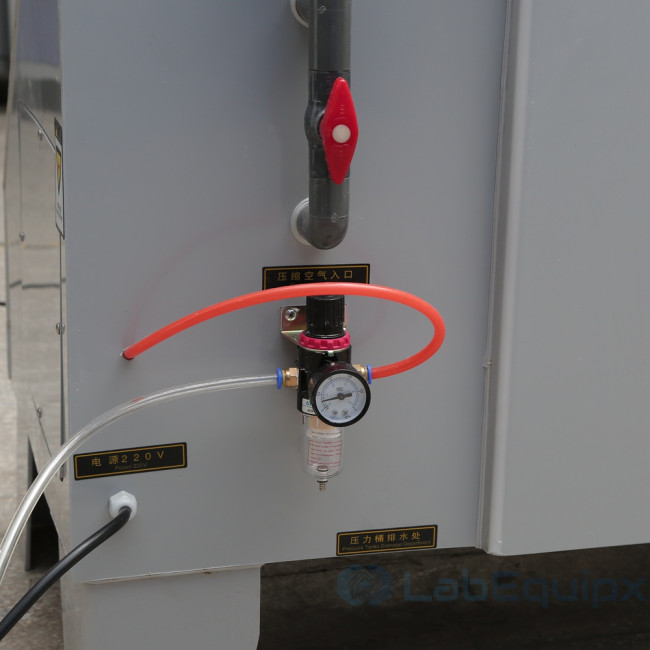

The cyclic corrosion chamber has superior fog dispersion compared to conventional systems, which cannot vary volume and distance independently. A variable speed peristaltic pump controls the amount of corrosive solution delivered to the spray atomizer, while the air pressure regulator controls the distance of the “throw.” Note that purified water is required for proper operation of corrosion testers.
Internal Solution Reservoir
Space utilization is maximized and maintenance is minimized with the tester's internal solution reservoir. The 120 liter reservoir has enough capacity for running most tests for 7 days or more. The reservoir has an integral salt filter and a built-in alarm to alert the operator when the solution is low.
Fast Cycling
Testers can change temperatures exceptionally fast because of their unique internal chamber heater and their high volume cooling/dry-off blower. An additional air heater allows very low humidity dry-off exposures. Conventional chambers with water jackets cannot cycle rapidly because of the thermal mass of the water, nor can they produce low humidity.
Models (also see Features Tab)
- LEGFOGGSSP-600: conventional salt spray and Prohesion tests, 640 liter chamber volume
- LEGFOGGSSP-1100: conventional salt spray and Prohesion tests, 1103 liter chamber volume
- Humidity version, 640 liter chamber volume: conventional salt spray, Prohesion, and 100% humidity (code on request)
- Humidity version, 1103 liter chamber volume: conventional salt spray, Prohesion, and 100% humidity (code on request)
Model GSSP for Prohesion or Conventional Salt Spray Tests
Numerous accelerated corrosion tests may be performed in GSSP corrosion tester including Prohesion, ASTM B117 and G85, BS 3900 F4 & F9, DIN 50.021 and ISO 9227.
The Prohesion test uses fast cycling, rapid temperature changes, a low humidity dry-off cycle and a different corrosive solution to provide a more realistic test. Many researchers have found this test useful for industrial maintenance coatings.
Continuous salt spray exposures are widely specified for testing components and coatings for corrosion resistance. Applications include plated and painted finishes, aerospace and military components, and electrical/electronic systems.
Most of these tests are performed to particular specifications such as ASTM B117 (Salt Spray), and BS 3900 F4. These tests are widely used for relative corrosion testing. They are typically run at an elevated temperature and do not incorporate a dry-off cycle. They require heated, humidified air for the spray.
Model GCCT for Corrosion Research and Cyclic Automotive Tests
The model GCCT has all the advantages of the model GSSP, but adds the flexibility of including 100% humidity.
Today’s automotive corrosion test methods typically call for exposing specimens to a repetitive cycle of salt spray, high humidity, low humidity dry-off, and ambient conditions. These test methods were originally developed as labor intensive manual procedures. The multi-functional GCCT corrosion tester is designed to perform these cyclic tests automatically in a single chamber.Model GCCT advantages include the elimination of:
- manual moving of test specimens from one chamber to another
- laborious spraying of test specimens
- variability in results from excessive specimen handling
Model GCCT units come equipped with a viewing window in the side of the lid and an internal light to allow easy monitoring of the test conditions.
Specimen Holders
Optional test panel holders are available which allow the user to mount specimens at a 15 degree angle, holding panels up to 102mm x 304mm on 38mm centers.
Odd shaped parts (e.g. large three-dimensional specimens), can be mounted on special 20mm hanging rods.
- LEGFOGGSSP-600 or GCCT-600 Test Panel Holder Kit, set of 8
- LEGFOGGSSP-1100 or GCCT-1100 Test Panel Holder Kit, set of 10
- LEGFOGGSSP-600 or GCCT-600 20mm (3/4”) Hanging Rod Kit, set of 6
- LEGFOGGSSP-1100 or GCCT-1100 20mm (3/4”) Hanging Rod Kit, set of 8
Other Accessories

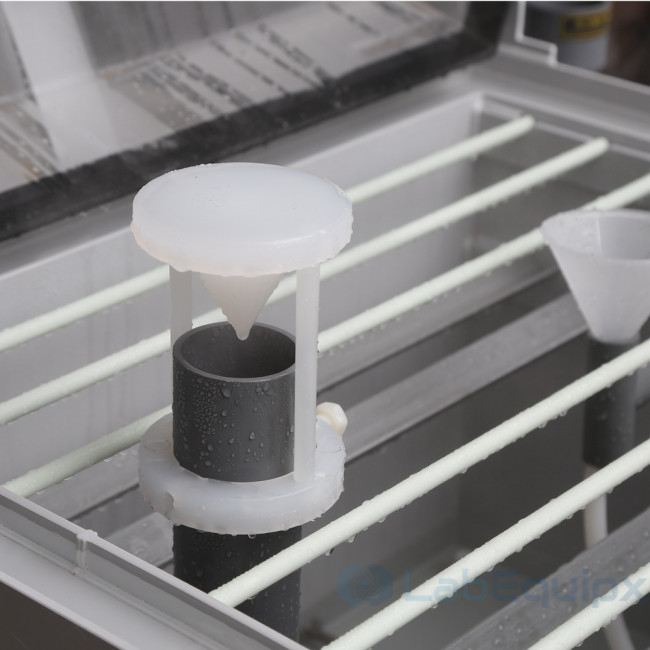

Offers a fog collection kit for the tester, which consists of a set of six graduated cylinders, o-rings, and collection funnels.
Also available is a one-year maintenance parts kit, which consists of eight pump tubes, one air filter, two solution filters elements, and a handy hex wrench.
