Cyclic Corrosion Tester

  • The LEGFOGGCRH adds full variable relative humidity control to a cyclic corrosion chamber. Besides salt fog, Prohesion and dry-off steps, it ramps to and holds a set RH and temperature, with programmed ramp times. Automotive and coatings labs use it for multi-step specifications such as GMW 14872 and SAE J2334, and for related ISO and GB/T methods.

    How it works

    Humidity comes from an air pre-conditioner, a blower module and atomizing humidification nozzles fed with DI water. Salt fog is produced by an atomizer: a variable speed peristaltic pump sets the volume of liquid, and an air pressure regulator sets the throw distance. An internal chamber heater and a high volume cooling and dry-off blower give fast temperature changes; an additional air heater gives very low humidity dry-off.

    The shower function sprays a user-adjustable volume onto the specimens through nozzles on a spray bar. Droplets are larger, flow is higher and shower times shorter than in the fog function. Shower on and off times are programmed directly to control corrosion rate, and the spray bar is removed when the fog function is used. A nozzle cleaning feature counters clogging.

    • Internal reservoir: 120 liter, enough for most tests of 7 days or more, with particulate filter and low-level alarm
    • Viewing window in the lid side and internal light
    • Microprocessor control with self-diagnostics and safety shutdown
    • Chamber temperature and RH sensors: user calibration every six months with a reference thermometer and insulated container

    Models

    ModelChamber volumePanel capacity, 75 x 150 mm
    LEGFOGGCRH-600640 liter160
    LEGFOGGCRH-11001103 liter240

    Both models run conventional salt fog and Prohesion tests with humidity control.

    Specify for your project

    • Test specifications to run, including RH and shower steps
    • Chamber size, 640 or 1103 liter
    • Shower function required or not
    • Panel size and quantity
    • DI and purified water supply

    This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.

    • Cyclic Corrosion Tester
    • Cyclic Corrosion Tester
    • Cyclic Corrosion Tester
    • Cyclic Corrosion Tester
    • Cyclic Corrosion Tester

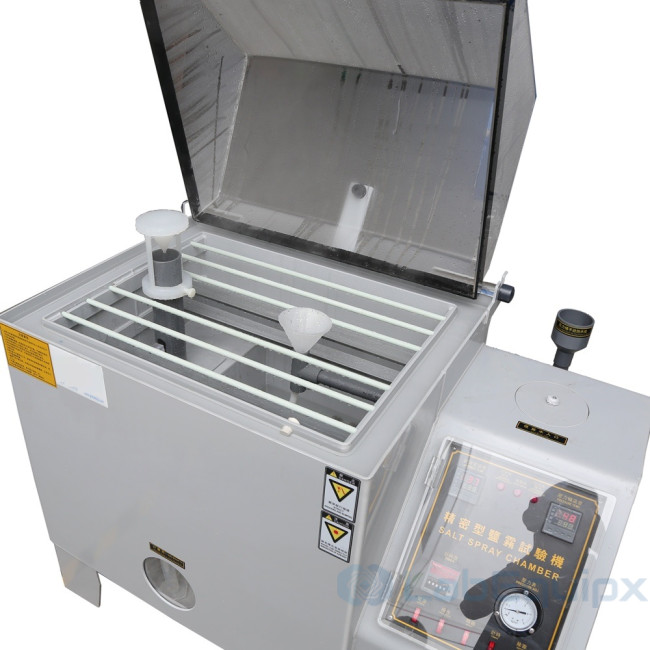

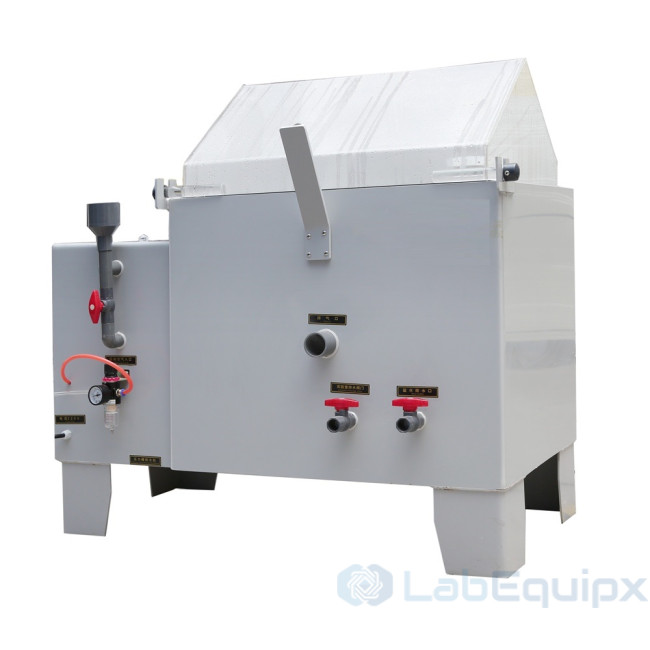

  • LEGFOGGCRH cyclic corrosion chambers can perform traditional salt spray, Prohesion, and most cyclic automotive tests. They feature fully-adjustable relative humidity and precise control over ramp times. An optional shower function is also available. LEGFOGGCRH chambers are available in different sizes to fulfill a wide range of testing requirements.

    LEGFOGGCRH cyclic corrosion testers are the simplest, most reliable, and easiest to use RH-controlled corrosion chambers available.

    Cyclic Corrosion Testing

    The model GCRH represents a true breakthrough in the price-performance ratio of corrosion testers with RH control. It can perform most major automotive corrosion test standards, such as GMW 14872, SAE J2334, and many others, including ISO and GB/T methods.The tester has all the features and advantages of the model GCCT, but also adds full variable humidity control through the use of an innovative air pre-conditioner.

    Additionally, the GCRH model includes an optional Shower Function. Spray droplets are much bigger, flow rates are much higher, and shower times are much shorter than the atomized mist in the Salt Fog Function. The GCRH tester features an advanced cleaning feature for spray nozzles that prevents the clogging frequently found in competitive chambers.Within one LEGFOGGCRH chamber, it is possible to cycle through a series of the most significant corrosion environments. Even extremely complex test cycles can easily be programmed with the controller.

    Models (also see Features Tab):

    • LEGFOGGCRH-600: conventional salt fog and Prohesion tests, humidity control, optional shower module, 640 liter chamber volume·
    • LEGFOGGCRH-1100: conventional salt fog and Prohesion tests, humidity control, optional shower module, 1103 liter chamber volume.

    RH and Shower Functions

    The model GCRH can ramp to and maintain a defined RH value and temperature through the use of an air pre-conditioner, a blower module, and special atomizing humidification nozzles. DI water is required for proper operation.

    The Shower Function in the GCRH is used for some automotive test specifications. A user-adjustable volume of solution is uniformly sprayed onto specimens through specially positioned spray nozzles. The Shower Function offers the following advantages:

    • Nozzles are mounted to a spray bar, which can be easily removed when using the Fog Function
    • Spray droplets are much bigger, flow rates are much higher, and shower times are much shorter than the atomized solution mist in the Fog Function
    • Shower on/off times can be directly programmed to allow for excellent control of corrosion rates

    Precise Control of Fog Dispersion

    The GCRH cyclic corrosion chamber has superior fog dispersion compared to conventional systems, which cannot vary volume and distance independently. A variable speed peristaltic pump controls the amount of corrosive solution delivered to the fog atomizer, while the air pressure regulator controls the distance of the “throw.” Note that purified water is required for proper operation of corrosion testers.

    Internal Solution Reservoir

    Space utilization is maximized and maintenance is minimized with the tester's internal solution reservoir. The 120 liter reservoir has enough capacity for running most tests for 7 days or more. The reservoir has an integral particulate filter and a built-in alarm to alert the operator when the solution is low.

    Fast Cycling

    Testers can change temperatures exceptionally fast because of their unique internal chamber heater and their high volume cooling/dry-off blower. An additional air heater allows very low humidity dry-off exposures. Conventional chambers with water jackets cannot cycle rapidly because of the thermal mass of the water, nor can they produce low humidity.

    Calibration

    The GCRH tester’s chamber temperature and RH sensors should be calibrated by the user every six months to ensure accurate and consistent results.

    Calibrating the temperature and RH sensors takes only a few minutes. It requires simple tools, a calibrated reference thermometer, and an insulated container.

    Easy Programming and Sample Mounting

    Test conditions, time, and temperature are controlled by a built-in microprocessor. A remarkably simple user interface allows for easy programming and operation. The operator can quickly create new cycles, or run any of the programmed cycles. The controller includes complete self-diagnostics, including warning messages, routine service reminders, and safety shut down.

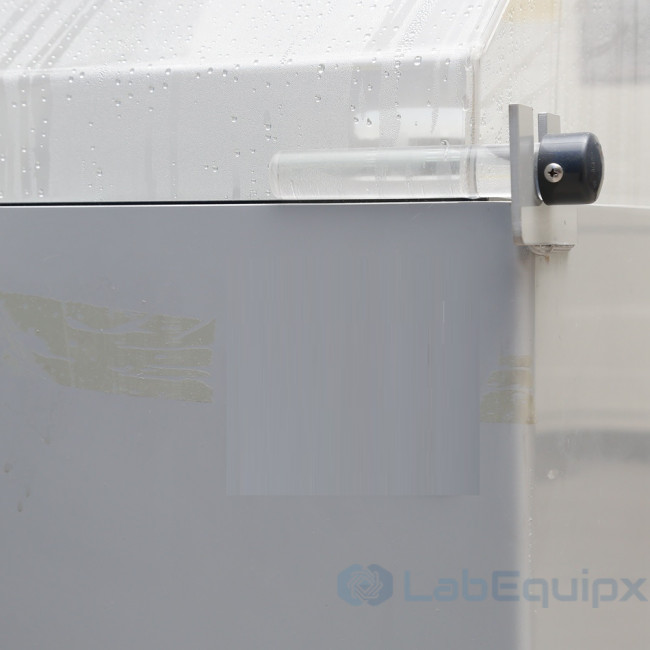

    Model GCRH units come equipped with a viewing window in the side of the lid and an internal light to allow easy monitoring of the test conditions.testers have a low belt line and an easy-opening lid for easy sample mounting. The 600 model has a capacity of 160 test panels of 75 x 150 mm in size. The 1100 model has a capacity of 240 test panels.

    Affordable

    Cyclic corrosion testers offer state of the art corrosion testing technology, reliability, ease of operation, and easy maintenance - all at a remarkably affordable price.

    Specimen Holders

    Standard test panel racks are available to accommodate flat specimens, such as standard substrates. Racks can support up to 113 kg (250 pounds) each, and are slotted at 15 degrees from vertical. The 600 liter model can accommodate up to 160 specimens, 75 x 150 mm (3 x 6 in) in size, through 8 racks. The 1100 liter model can hold up to 240 specimens, using 10 racks.

    Odd shaped parts (e.g. large, three-dimensional specimens) can be mounted on special 20 mm hanging rods.

    For extremely large or heavy three-dimensional objects (such as metal wheel rims, engine parts, etc.), a rack-level or diffusion-level grate kit may be used. The tester’s sturdy construction can support a well-distributed total load of up to 544 kg (1200 pounds), ensuring compatibility with even the heaviest of automotive and other components.

    See our Specimen Mounting, or inquire about the following common part numbers:

    • Test Panel Holder Kit for 600 L Chambers, set of 8
    • Test Panel Holder Kit for 1100 L Chambers, set of 10
    • Hanging Rod Kit for 600 L Chambers, 20 mm (3/4 in), set of 6
    • Hanging Rod Kit for 1100 L Chambers, 20 mm (3/4 in) , set of 8
    • Specimen Mounting Grate for 600 L Chambers, Rack Level
    • Specimen Mounting Grate for 1100 L Chambers, Rack Level
    • GCRH Corrosion Coupon Rack Kit

    Other Accessories

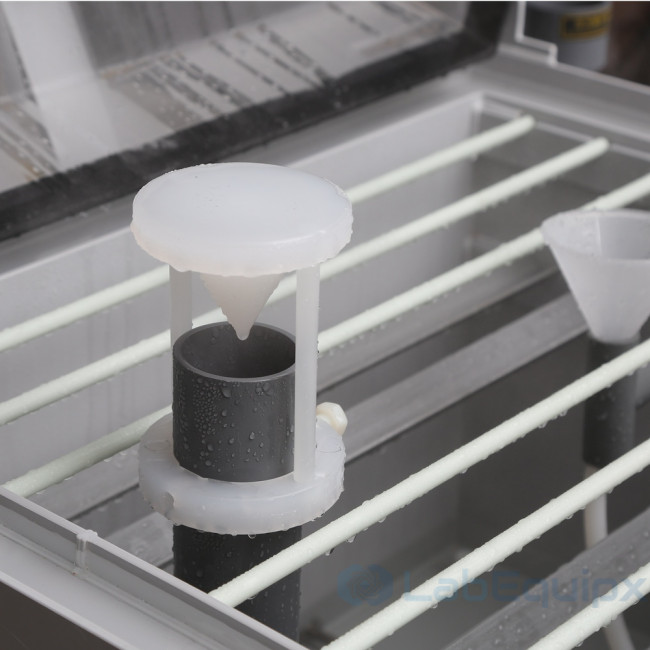

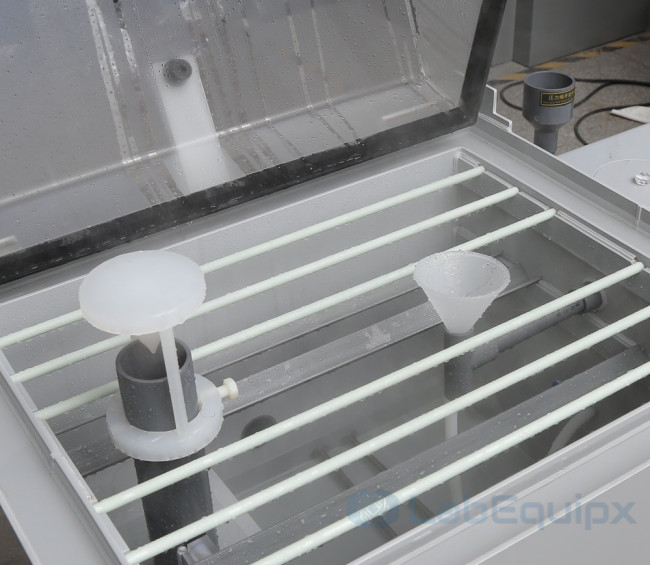

    Offers a fog collection kit for the tester, which consists of a set of six graduated cylinders, o-rings, and collection funnels. Fog collection is required by some tests.A convenient salt kit is available, containing a pre-measured and certified quantity of NaCl (530 g) which allows for compatibility with ASTM B117. Just add the recommended amount of water to obtain a 5% solution.
    aintenance parts kit and a nozzle cleaning kit. These give users everything they need for the first full year of operation.

    See our Specimen Mounting, or inquire about the following common part numbers:

    • Fog Collection Kit, Contains 6 graduated cylinders and collection funnels
    • Start-Up Salt Kit; Contains pre-measured, certified NaCl
    • GCRH Preventive Maintenance Kit, 1 year supply of parts
    • GRH Nozzle Cleaning Kit, 1 year supply of vinegar, 8 extra nozzles
