Mobile Hydraulic Power Unit

  • The LEUM06/10 is a mobile, air-driven hydraulic power unit on a stainless steel square tube frame. It covers a wide pressure span with two pump series, LEUM06 and LEUM10, so one cart format serves both high-flow filling and very high pressure testing. Users run hose burst tests, supply pressure to test systems, perform leak tests, drive hydraulic tools and apply high pressure loads.

    How it works

    Compressed air at 15 to 125 psi drives the pump. A regulator on the drive air sets the output pressure, and the flow at a given pressure depends on the drive air pressure. When pressure falls, pumping restarts automatically; at set pressure the pump holds without consuming air. With no electric drive there is no heating and no spark hazard. The hydraulic section is stainless steel. The frame can be mobile or fixed.

    LEUM06 units measure 800 x 1100 x 686 mm (L x H x W) and take drive air through G3/8. LEUM10 units measure 800 x 1240 x 800 mm and take drive air through 1 FNPT.

    SeriesMax pressure, psiMax flow, l/minHydraulic outlet
    LEUM06-1S1600 to 6000019.9 to 0.31/2 FNPT, 1/4 HF
    LEUM06-2S3200 to 7500019.9 to 0.51/2 FNPT, 1/4 HF, 1/4 SF
    LEUM06-3S70000 to 1000000.41 to 0.21/4 SF
    LEUM06-1D1600 to 2250029.9 to 21/2 FNPT, 3/8 MF
    LEUM06-1D, L versions1000 to 10000132 to 10.83/4 FNPT, 1/2 FNPT
    LEUM06-2D11000 to 500008.6 to 21/2 FNPT, 1/4 HF
    LEUM10-1D3750 to 3750052.5 to 4.73/4 FNPT, 1/2 FNPT, 9/16 HF

    Options

    • Relief valve
    • Pressure switch
    • Pressure recorder
    • Pneumatic stroke counter

    Specify for your project

    • Maximum output pressure, 1000 to 100000 psi
    • Required flow at the working pressure
    • Drive air pressure available on site
    • Outlet connection type
    • Accessories and mobile or fixed frame

    Ordering codes follow the table on this page; other sizes, materials and types are available on request.

    This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.

    • Mobile Hydraulic Power Unit

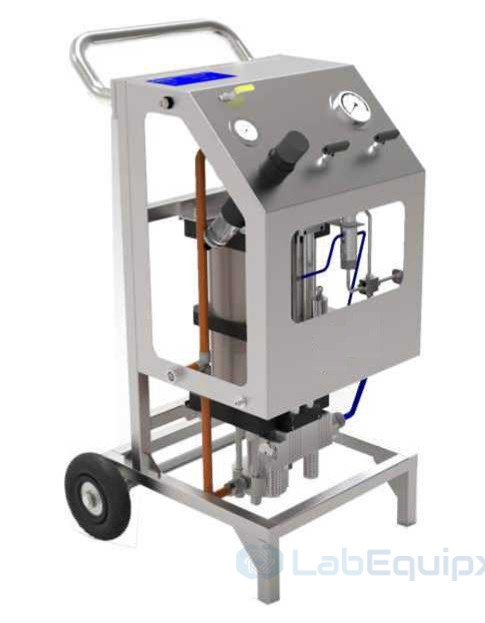

  • Construction & Dimension Portable Mobile Hydraulic Unit LEUM06/10:

    Mobile Hydraulic Power Unit

    Construction:

    Mobile Hydraulic Power Unit

    * The size is shown in the type selection table behind.

    Ordering Code:

    Mobile Hydraulic Power Unit

    Type & Parameters:

    Code Max.pressure (psi) Max.flow rate (l/min) Hydraulic outlet Drive air inlet Diemension(mm) - L Diemension(mm) - H Diemension(mm) - W
    LEUM06-1S-10 1600 19.9 1/2FNPT G3/8 800 1100 686
    LEUM06-1S-15 2400 13.3 1/2FNPT G3/8 800 1100 686
    LEUM06-1S-25 4000 8 1/2FNPT G3/8 800 1100 686
    LEUM06-1S-35 5700 5.7 1/2FNPT G3/8 800 1100 686
    LEUM06-1S-60 10000 3.3 1/2FNPT G3/8 800 1100 686
    LEUM06-1S-100 15000 2 1/2FNPT G3/8 800 1100 686
    LEUM06-1S-150 22500 1.3 1/4HF G3/8 800 1100 686
    LEUM06-1S-225 33750 0.7 1/4HF G3/8 800 1100 686
    LEUM06-1S-300 45000 0.5 1/4HF G3/8 800 1100 686
    LEUM06-1S-450 60000 0.3 1/4HF G3/8 800 1100 686
    LEUM06-2S-20 3200 19.9 1/2FNPT G3/8 800 1100 686
    LEUM06-2S-30 4800 13.3 1/2FNPT G3/8 800 1100 686
    LEUM06-2S-50 on request 8 1/2FNPT G3/8 800 1100 686
    LEUM06-2S-70 11000 5.7 1/2FNPT G3/8 800 1100 686
    LEUM06-2S-120 19000 3.3 1/2FNPT G3/8 800 1100 686
    LEUM06-2S-200 33000 1.5 1/4HF G3/8 800 1100 686
    LEUM06-2S-300 50000 1 1/4HF G3/8 800 1100 686
    LEUM06-2S-450 70000 0.7 1/4SF G3/8 800 1100 686
    LEUM06-2S-600 75000 0.5 1/4SF G3/8 800 1100 686
    LEUM06-3S-675 70000 0.41 1/4SF G3/8 800 1100 686
    LEUM06-3S-900 75000 0.33 1/4SF G3/8 800 1100 686
    LEUM06-3S-1350 100000 0.2 1/4SF G3/8 800 1100 686
    LEUM06-1D-10 1600 29.9 1/2FNPT G3/8 800 1100 686
    LEUM06-1D-15 2400 19.9 1/2FNPT G3/8 800 1100 686
    LEUM06-1D-25 4000 11.9 1/2FNPT G3/8 800 1100 686
    LEUM06-1D-35 5700 8.6 1/2FNPT G3/8 800 1100 686
    LEUM06-1D-60 10000 4.9 1/2FNPT G3/8 800 1100 686
    LEUM06-1D-100 16500 3 3/8MF G3/8 800 1100 686
    LEUM06-1D-150 22500 2 3/8MF G3/8 800 1100 686
    Code Max.pressure (psi) Max.flow rate (l/min) Hydraulic outlet Drive air inlet Diemension(mm) - L Diemension(mm) - H Diemension(mm) - W
    LEUM06-1D-7L 1000 132 3/4FNPT G3/8 800 1100 686
    LEUM06-1D-12L 1850 82.1 3/4FNPT G3/8 800 1100 686
    LEUM06-1D-35L 4375 31 1/2FNPT G3/8 800 1100 686
    LEUM06-1D-60L 7500 18.1 1/2FNPT G3/8 800 1100 686
    LEUM06-1D-100L 10000 10.8 1/2FNPT G3/8 800 1100 686
    LEUM06-2D-70 11000 8.6 1/2FNPT G3/8 800 1100 686
    LEUM06-2D-120 19000 4.9 1/2FNPT G3/8 800 1100 686
    LEUM06-2D-200 33000 3 1/4HF G3/8 800 1100 686
    LEUM06-2D-300 50000 2 1/4HF G3/8 800 1100 686
    LEUM10-1D-30 3750 52.5 3/4FNPT 1FNPT 800 1240 800
    LEUM10-1D-60 7500 26.1 1/2FNPT 1FNPT 800 1240 800
    LEUM10-1D-120 15000 12.7 9/16HF 1FNPT 800 1240 800
    LEUM10-1D-180 22500 7.8 9/16HF 1FNPT 800 1240 800
    LEUM10-1D-300 37500 4.7 9/16HF 1FNPT 800 1240 800
    LEUM10-2D-60 7500 32.2 1/2FNPT 1FNPT 800 1340 800
    LEUM10-2D-120 15000 16 9/16HF 1FNPT 800 1340 800
    LEUM10-2D-240 30000 7.9 9/16HF 1FNPT 800 1340 800
    LEUM10-2D-360 45000 4.9 9/16HF 1FNPT 800 1340 800
    • 1psi=0.0689bar,1l/min=0.264gallon/min;
    • Ordering codes listed are standard. Other sizes, materials and types are available upon request.
