High-Flow High-Pressure Hydraulic Unit

  • The LEU10 is a high-flow hydraulic power unit driven by compressed air. An air-driven pump with a 17-4PH high pressure head boosts oil or water to between 3750 and 45000 psi, depending on the model. Test labs and maintenance shops use it to supply pressure to hydraulic tools, hose burst tests, test systems, leak tests and high pressure loading rigs.

    How it works

    Drive air at 15 to 125 psi enters through a 1 FNPT inlet. A regulator on the drive air sets the output pressure smoothly, because the outlet pressure follows the drive pressure. When the circuit reaches set pressure the pump stalls and holds it without consuming air; when pressure drops, pumping restarts by itself. There is no electric motor, so the unit produces no heat and no spark hazard. Flow at a given pressure depends on the drive air pressure.

    The frame is stainless steel square tube, mobile or fixed. Wetted hydraulic parts are stainless steel. Seals are PTFE and Buna-N. Standard working temperature is -40 to 250 °F (-40 to 120 °C).

    Options

    • Relief valve and oil tank
    • Pressure switch
    • Pressure recorder
    • Pneumatic stroke counter

    Specify for your project

    • Maximum output pressure, 3750 to 45000 psi
    • Required flow at working pressure
    • Available drive air pressure, 15 to 125 psi
    • Test medium and outlet connection
    • Mobile or fixed frame and accessories
    ModelMax pressure, psiMax flow, l/minHydraulic outlet
    LEU10-1D-30375052.53/4 FNPT
    LEU10-1D-60750026.11/2 FNPT
    LEU10-1D-1201500012.79/16 HF
    LEU10-1D-180225007.89/16 HF
    LEU10-1D-300375004.79/16 HF
    LEU10-2D-60750032.21/2 FNPT
    LEU10-2D-12015000169/16 HF
    LEU10-2D-240300007.99/16 HF
    LEU10-2D-360450004.99/16 HF

    Other sizes, materials and types of the LEU10 series are available on request.

    This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.

    • High-Flow High-Pressure Hydraulic Unit
  • Construction & Dimension High Flow High Pressure Hydraulic Unit LEU10:

    High-Flow High-Pressure Hydraulic Unit
    Drive air pressure 1 5~125psi Material of high pressure pump head 17-4PH
    Seal material PTFE&Buna.N Work temperature -40~250°F(-40 ~120°C)Standard

    Construction:

    High-Flow High-Pressure Hydraulic Unit

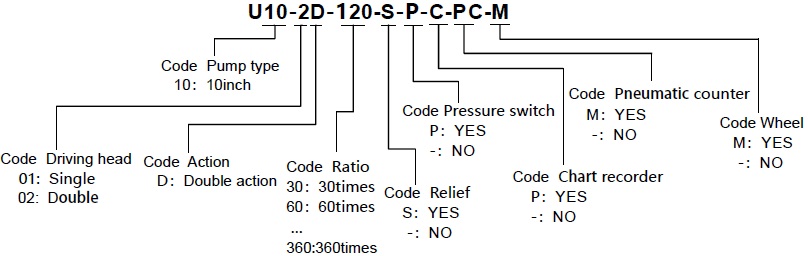

    Ordering Code:

    High-Flow High-Pressure Hydraulic Unit

    Type & Parameters:

    Code Max.pressure (psi) Max.flow rate (l/min) Hydraulic outlet Drive air inlet
    LEU10-1D-30 3750 52.5 3/4FNPT 1FNPT
    LEU10-1D-60 7500 26.1 1/2FNPT 1FNPT
    LEU10-1D-120 15000 12.7 9/16HF 1FNPT
    LEU10-1D-180 22500 7.8 9/16HF 1FNPT
    LEU10-1D-300 37500 4.7 9/16HF 1FNPT
    LEU10-2D-60 7500 32.2 1/2FNPT 1FNPT
    LEU10-2D-120 15000 16 9/16HF 1FNPT
    LEU10-2D-240 30000 7.9 9/16HF 1FNPT
    LEU10-2D-360 45000 4.9 9/16HF 1FNPT
    • 1psi=0.0689bar,1l/min=0.264gallon/min;
    • Ordering codes listed are standard. Other sizes, materials and types are available upon request.
