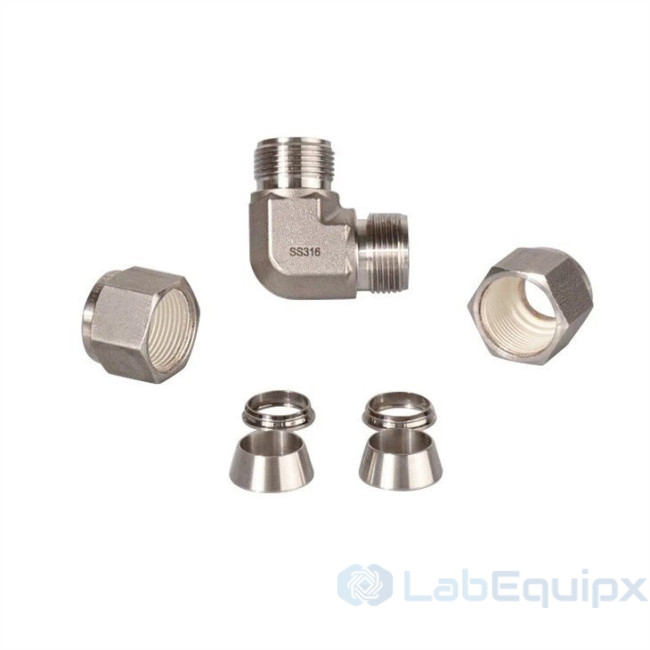

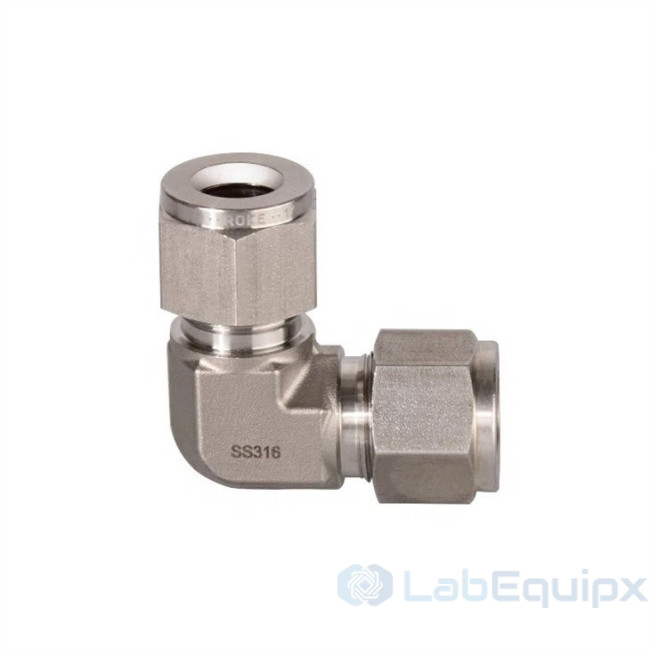

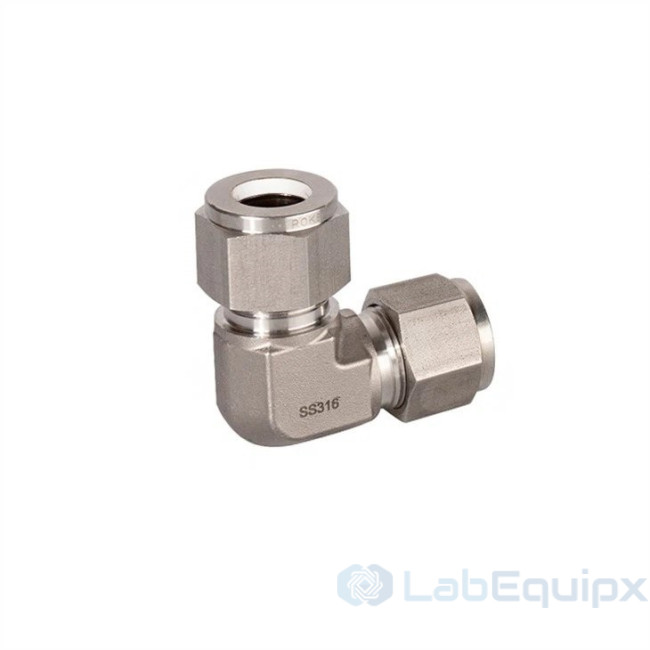

Double Ferrule Elbow

  • The le140437626 is a double ferrule union elbow from the UE Series. It joins two instrument tubes at ninety degrees with a compression connection on each end. Two ferrules grip and seal each tube, so the joint can be made up and broken repeatedly in high pressure lines carrying brine, gas and solvents.

    How the seal works

    When the nut is tightened, the two ferrules are pressed between nut, fitting body and tube. One ferrule forms the seal against body and tube, the other grips the tube and holds it against pressure and vibration. No thread sealant is used on the tube connection, and the tube can be removed and reconnected for maintenance.

    Ratings and sizes

    • Pressure: rating depends on tube size and material, confirmed per size on request
    • Media temperature: -325 to 800 °F (-198 to 426 °C)
    • Media: water, oil, gas, alkaline or acidic liquids
    • Tube size: 1/16 in to 1 1/2 in, or 2 to 38 mm
    • Connection: compression, double ferrule
    • Standard: ASTM

    Materials

    Body, nuts and ferrules are made in SS316, SS304, SS316Ti, F51, F53, Inconel, Monel or Hastelloy. The alloy is selected for the media and temperature of the line: stainless grades for water, oil and gas service, and the nickel alloys and duplex grades where acidic or alkaline liquids or brine are present.

    Specify for your project

    • Tube outside diameter, inch or metric
    • Working pressure and tube size
    • Media and temperature range
    • Material: SS316, SS304, SS316Ti, F51, F53, Inconel, Monel or Hastelloy
    • Quantity

    This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.

  • Pressure3000-10000PSI
    MaterialSS316,SS304,SS316Ti,F51,F53,Inconel,Monel,Hastelloy,etc.
    Temperature of Media-325 to 800℉(-198 to 426℃)
    • Double Ferrule Elbow
    • Double Ferrule Elbow
    • Double Ferrule Elbow
    • Double Ferrule Elbow
    • Double Ferrule Elbow
  • Product Details

    • Model Number: UE Series
    • Application:General
    • Material: SS316,SS304,SS316Ti,F51,F53,Inconel,Monel,Hastelloy,etc.
    • Temperature of Media: -325 to 800℉(-198 to 426℃)
    • Pressure: on request, by tube size and material
    • Media:Water,Oil,Gas and Alkaline or Acidic Liquid
    • Port Size:1/16"-1 1/2”or 2-38mm
    • Standard or Nonstandard: ASTM
    • Product name: Union Elbows
    • Connection: Compression
    • MOQ:10pcs
    • Certification: on request
