SS-RHAI
Female Thread Non-Return Valve

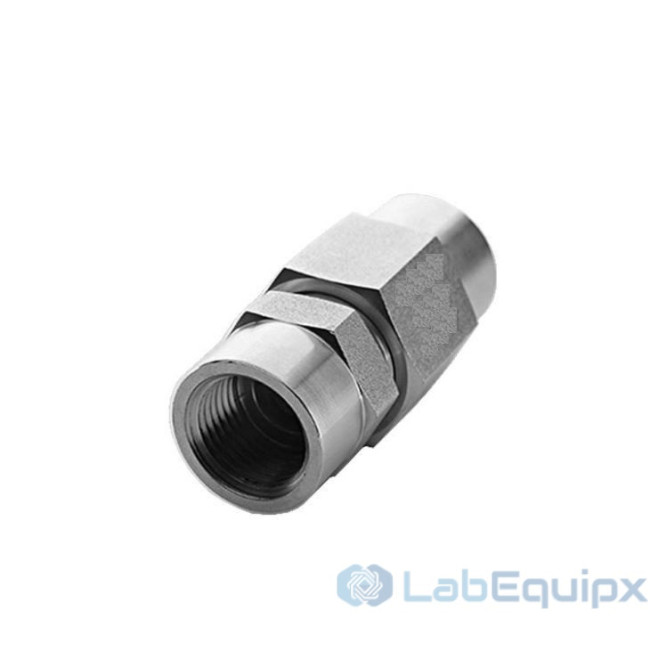

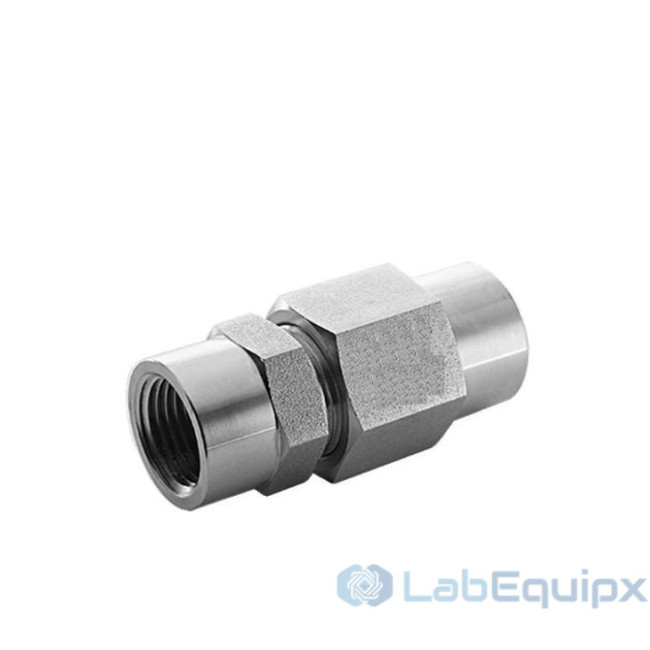

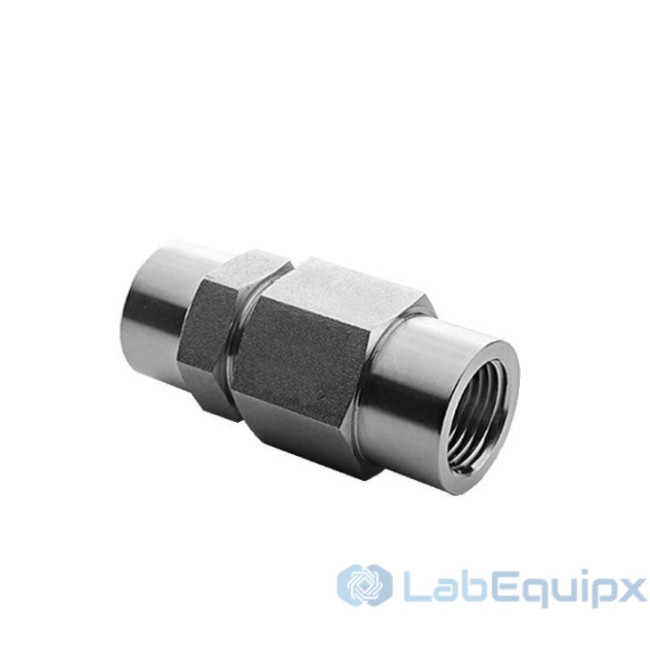

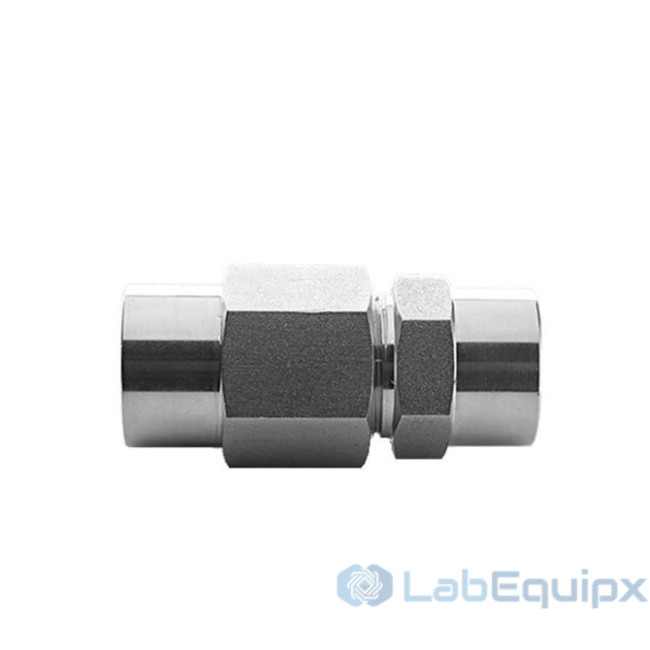

The Female Thread Non-Return Valve (SS-RHAI) is a stainless steel, spring-loaded check valve with NPT, BSPT or BSPP female threads. It lets flow pass in one direction and blocks reverse flow, which protects pumps and instruments from backflow and keeps incompatible fluids from mixing. Listed sizes run from 1/8 in to 2 in.
How it works
A spring holds the closing element on its seat. Forward flow lifts it off the seat; when flow stops or reverses, the spring and the back pressure close it. Sealing is by gasket. Listed media are water, oil, gas and alkaline or acidic liquids, over -65 to 300 °F (-54 to 150 °C). Listed standard: ANSI. No pressure rating or cracking pressure is given; both are stated in the project datasheet. Male thread and single-ferrule versions are offered in the same group.
What is included
- Stainless steel check valve with spring and gasket seal, female threaded ends
Specify for your project
- Thread form, NPT, BSPT or BSPP, and size from 1/8 in to 2 in
- Working pressure and required cracking pressure
- Media and operating temperature
- Stainless steel grade and gasket material: stated in the project datasheet
- Quantity
This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.
Port Shanghai, China Production Capacity 100 Pieces/Week Model NO. SS-RHAI Connection Form Thread Product Details
- Name: Female Thread Check Valve
- Model NO.: SS-RHAI
- Connection Form: Thread
- Media: Water, Oil, Gas and Alkaline or Acidic Liquid
- Temperature: -65 to 300 F (-54 to 150 C)
- Material: Stainless Steel
- Structure: Spring
- Pressure: High Temperature
- Specification: 1/8"-2"
- Sealing Form: Gasket
- Flow Direction: Unidirection
- Standard: ANSI
- Application: Industrial Usage
