BN Series
Stainless Steel Needle Valve

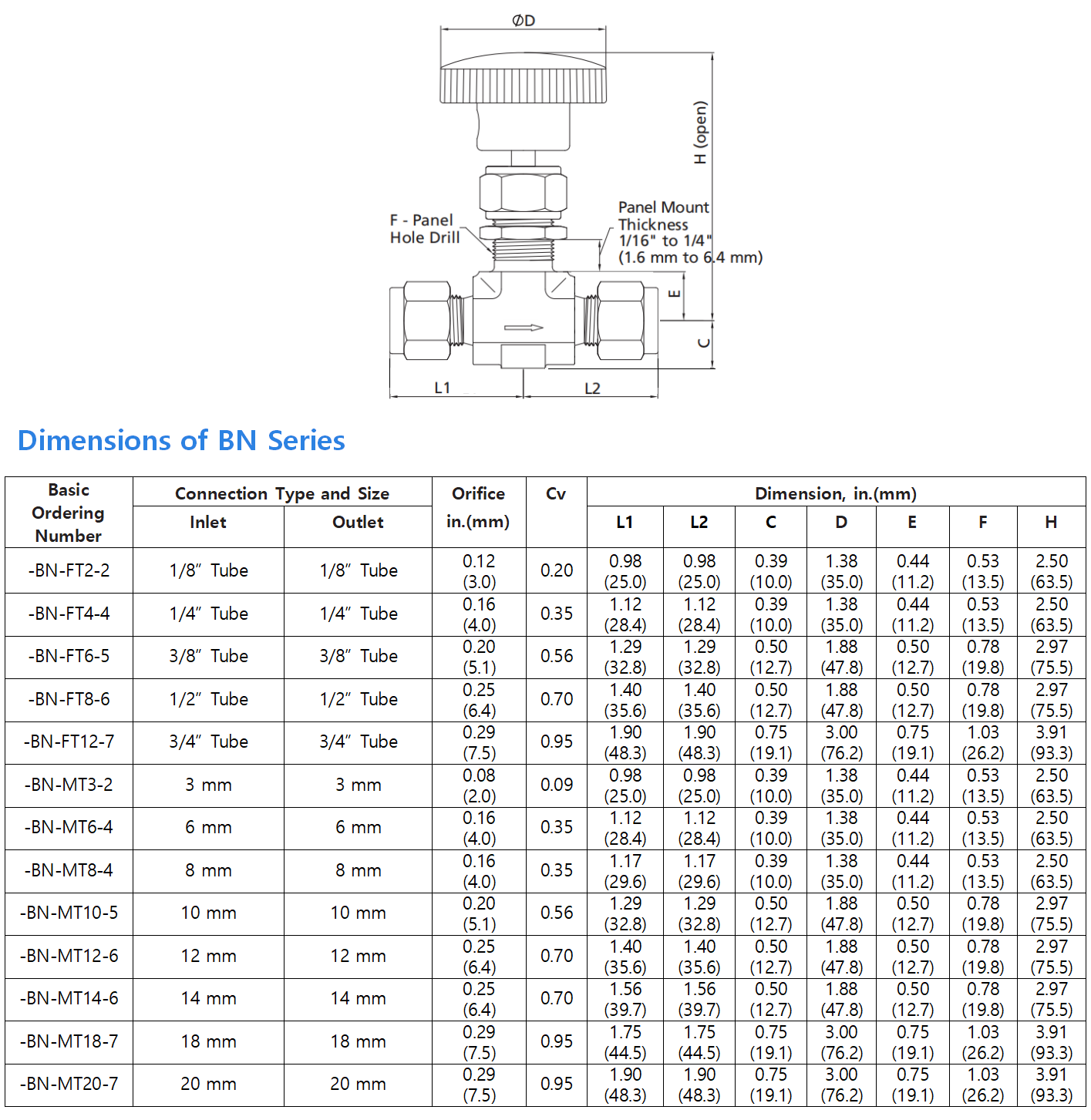

Technical Data:
Product Details
- Model Number: BN Series
- Application:General
- Material: SS316,SS304,SS316Ti,F51,F53,Inconel,Monel,Hastelloy,etc.
- Temperature of Media: -65 to 450℉(-54 to 230℃)
- Pressure: 3000Psig
- Power:Manual
- Media:Water,Oil,Gas and Alkaline or Acidic Liquid
- Port Size:1/8"-3/4”or 3-20mm
- Structure:Shut off
- Standard or Nonstandard:Standard
- Product name: Integral Bonnet Needle Valve
- Connection: Double Ferrules
- MOQ:10pcs
- Certificate:ISO9001and CE
| Model | BN Series |
| Brand | Coretest |
