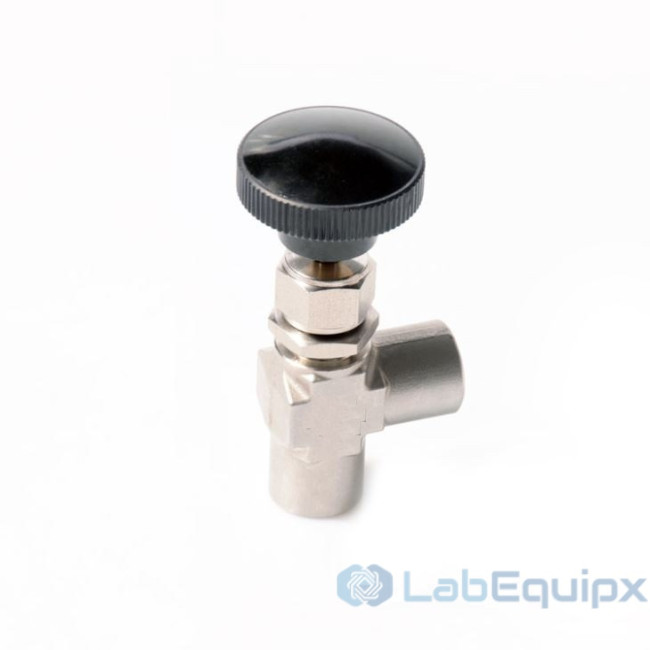

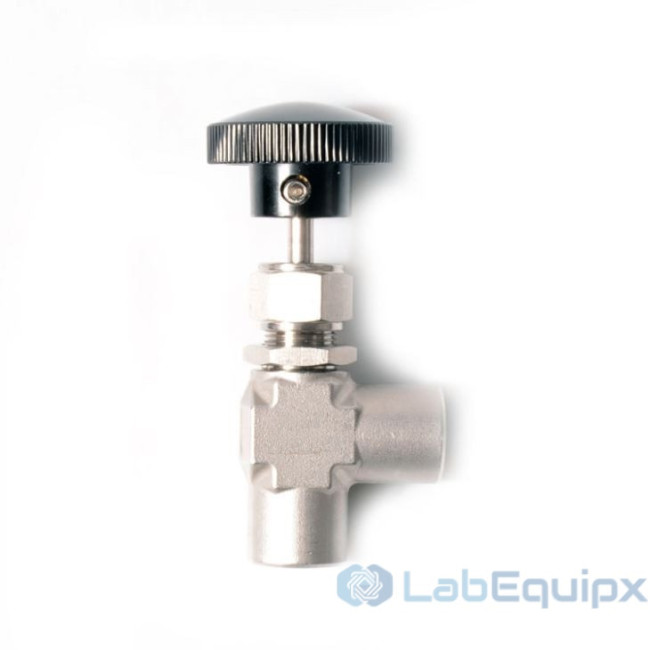

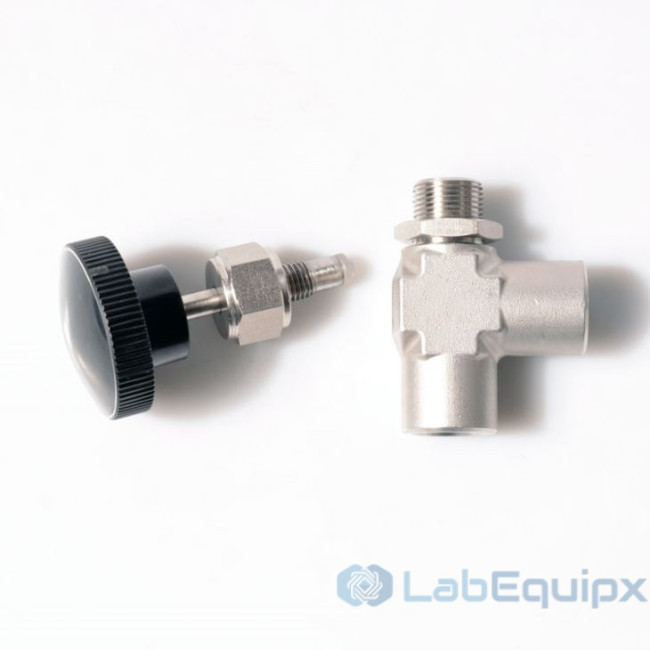

    • Integral Bonnet Angle Female Thread Needle Valves

    • Stainless Steel Integral Bonnet Female Thread Angle Needle Valve.

      Technical Data

    • MaterialSS316, SS304, SS316Ti, F51, F53, Inconel, Monel, Hastelloy, etc.
      ConnectionFemale Thread
      • Integral Bonnet Angle Female Thread Needle Valves
      • Integral Bonnet Angle Female Thread Needle Valves
      • Integral Bonnet Angle Female Thread Needle Valves

    • Product Details

      • Connection: Female Thread
      • Material: SS316, SS304, SS316Ti, F51, F53, Inconel, Monel, Hastelloy, etc.
      • Model Number: BN Series
      • Temperature of Media: -65 to 450℉ (-54 to 230℃)
      • Power: Manual
      • Media: Water, Oil, Gas and Alkaline or Acidic Liquid
      • Port Size: 1/8"-3/4"
      • Application: General
      • MOQ: 10pcs
      • Structure: Shut off
      • Standard or Nonstandard: Standard
      • Certificate: ISO9001and CE

    Related products

    • Integral Bonnet Angle Female Thread Needle Valves
    • Integral Bonnet Angle Female Thread Needle Valves
    • Integral Bonnet Angle Female Thread Needle Valves
      ModelBN Series
      BrandCoretest
