Single Ferrule Union Tees

  • The Single Ferrule Union Tee, model le113586393, joins three inch tubes at one point with compression connections on all three ends. It is used to split a tubing run, to add a branch for a gauge or sampling line, or to merge two feeds. Tube sizes run from 1/8 in to 1 1/2 in, and the pressure rating depends on size and is confirmed on request. Users fit it in petroleum, chemical, power, electronics, metallurgy, machinery and water treatment systems.

    How it works

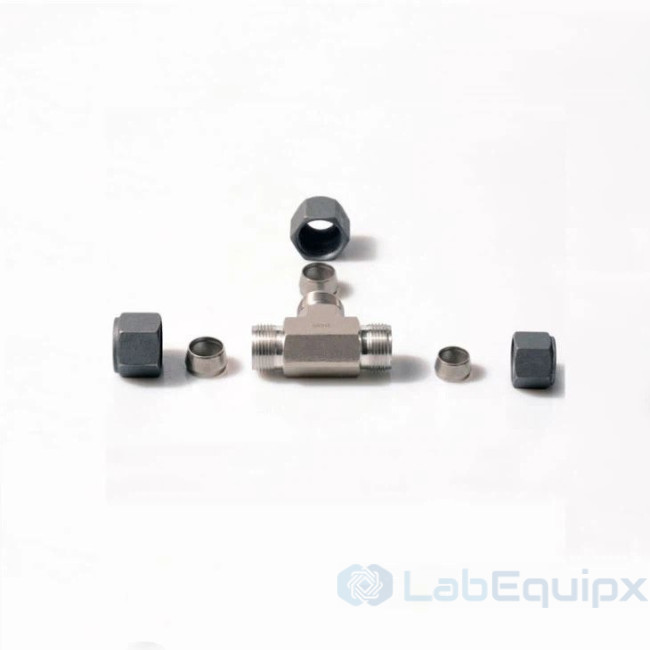

    Each end of the forged tee carries a nut and a single ferrule. Tightening the nut drives the ferrule onto the tube, which seals and grips the tube without welding. Because all three ends are unions, any branch can be disconnected and remade during maintenance without cutting the tube. The nuts use UNF or UNC threads and a hexagon head.

    • Type: union tee, compression on all ends
    • Tube size: 1/8 in to 1 1/2 in
    • Pressure rating: by tube size, on request
    • Thread: UNF, UNC
    • Material: forged stainless steel or carbon steel

    Specify for your project

    • Tube outside diameter for each end within 1/8 in to 1 1/2 in
    • Required working pressure
    • Material, stainless steel grade or carbon steel
    • Medium and service temperature
    • Quantity required

    This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.

  • Pressure1000psi to 15000psi
    MaterialStainless Steel or Carbon Steel
    TechnicsForged
    • Single Ferrule Union Tees
    • Single Ferrule Union Tees
    • Single Ferrule Union Tees
    • Single Ferrule Union Tees
  • Product Details

    • Material: Stainless Steel or Carbon Steel
    • Pressure: on request, by tube size
    • Technics: Forged
    • Temperature: on request
    • Application: Water, Oil, Gas and Alkaline or Acidic Liquid
    • Pipe size: 1/8"-1 1/2"
    • Type: Tee
    • Connection: Compression
    • Shape: Tee
    • Head Code: Hexagon
    • Standard: ASME
    • Thread: UNF/UNC
    • Certificate: on request
    • Usage: Petroleum, Chemical, Power, Electronics, Metallurgy, Machinery, Shipbuilding, Water Treatment, etc.
