Stainless Steel Swivel Connector

  • The Stainless Steel Swivel Connector, model le113599923, is a single ferrule compression fitting with a swivel end. The swivel lets the connector be aligned and tightened without turning the tube or the mating component. It is made to DIN2353 and ISO 8434.1 for tube sizes from 6 mm to 42 mm, with a pressure rating that depends on series and size. Hydraulic and process users fit it in petroleum, chemical, power, shipbuilding and water treatment systems.

    Design

    The body is forged, with a hexagon head. The tube end uses a single ferrule compression joint: the nut drives the ferrule into the cone of the body to seal and grip the tube. The swivel end can be oriented before final tightening, which helps where the connector sits between two fixed components. The pressure rating depends on series, size and material and is confirmed on request. The material list covers stainless steels, duplex grades and nickel alloys, so the same fitting family serves water, oil, gas and alkaline or acidic liquids.

    • Type: swivel, single ferrule compression
    • Standard: DIN2353, ISO 8434.1
    • Size: 6 mm to 42 mm
    • Pressure rating: by series and size, on request
    • Materials: SS316, SS304, SS316 Ti, F51, F53, Inconel, Monel, Hastelloy and others

    Specify for your project

    • Tube outside diameter within 6 mm to 42 mm
    • Required working pressure and series
    • Material grade
    • Swivel end connection type
    • Quantity, minimum order 20 pieces

    This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.

  • MaterialStainless Steel SS316, SS304, SS316 Ti, F51, F53, Inconel, Monel, Hastelloy, etc.
    TypeSwivel

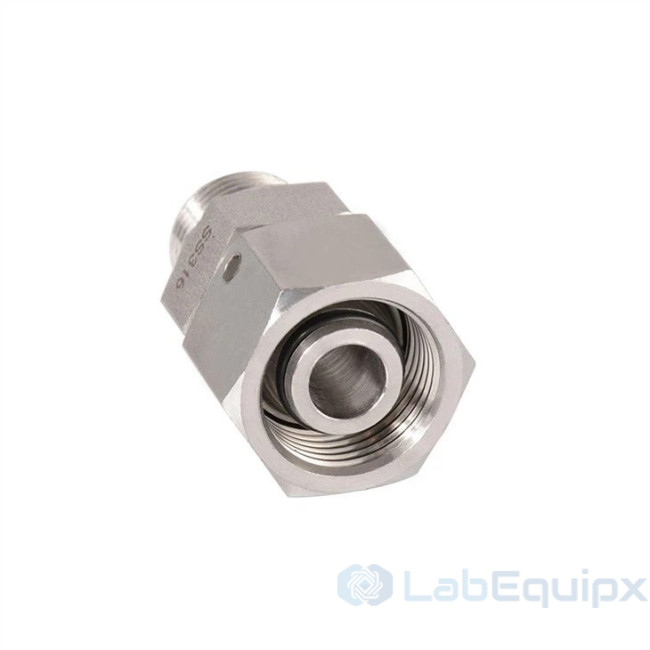

    • Stainless Steel Swivel Connector

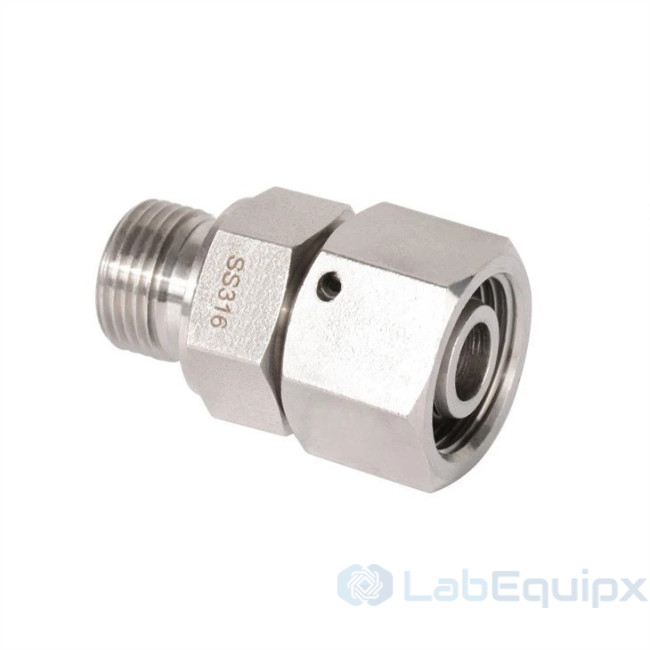

    • Stainless Steel Swivel Connector

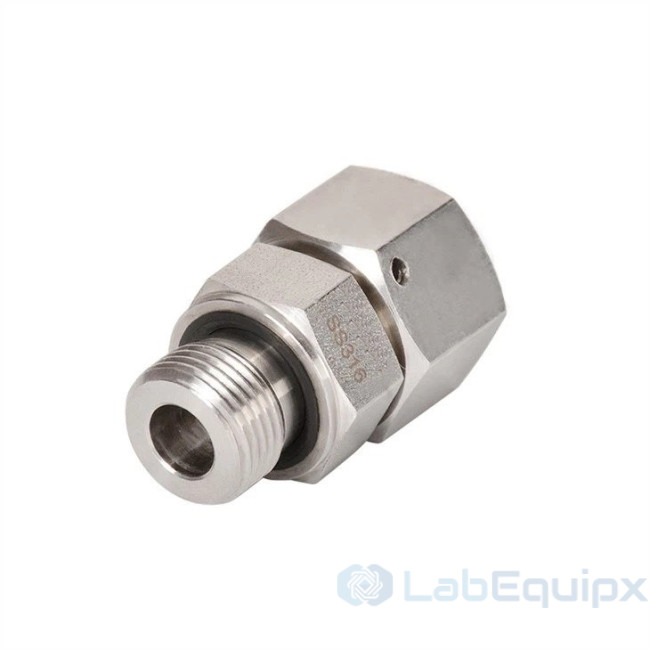

    • Stainless Steel Swivel Connector

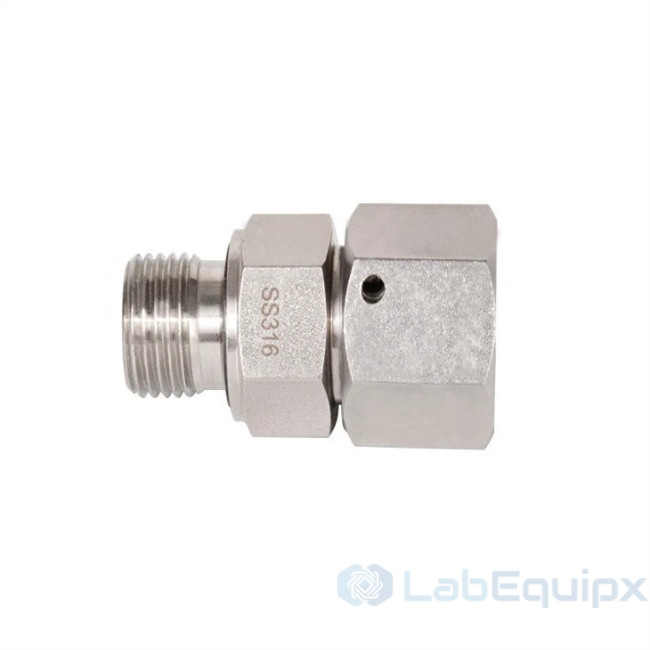

    • Stainless Steel Swivel Connector

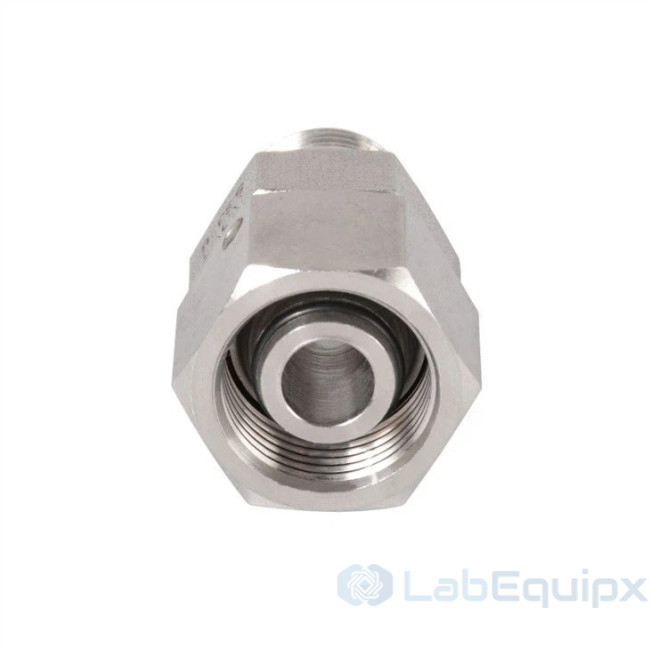

    • Stainless Steel Swivel Connector

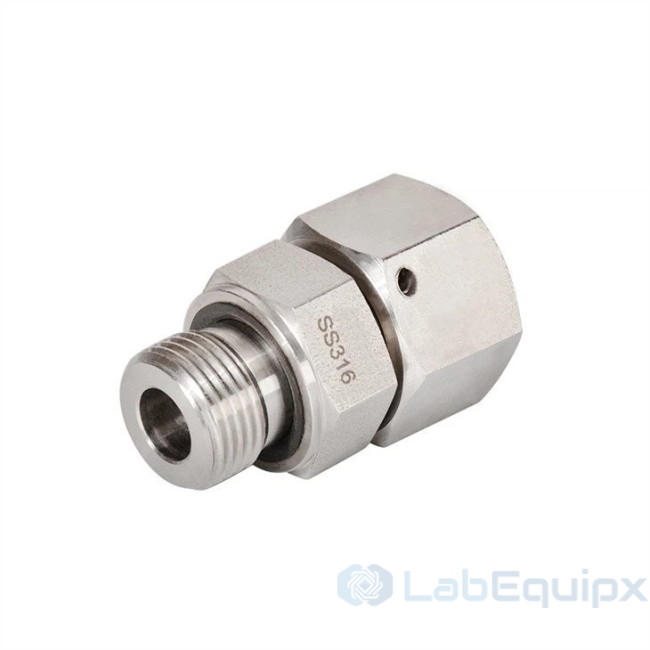

    • Stainless Steel Swivel Connector
  • Product Details

    • Type: Swivel
    • Material: Stainless Steel SS316, SS304, SS316 Ti, F51, F53, Inconel, Monel, Hastelloy, etc.
    • Technics: Forged
    • Standard: DIN2353, ISO8434.1
    • Connection: Compression
    • Swivel end thread and sealing face: on request
    • Head Code: Hexagon
    • Size: 6mm-42mm
    • Pressure Rating: on request, by series and size
    • Usage: Petroleum, Electronics, Metallurgy, Machinery, Chemical, Power, Shipbuilding, Water Treatment, etc
    • MOQ: 20pcs
    • Application: Water, Oil, Gas and Alkaline or Acidic Liquid
    • Certificate: on request
