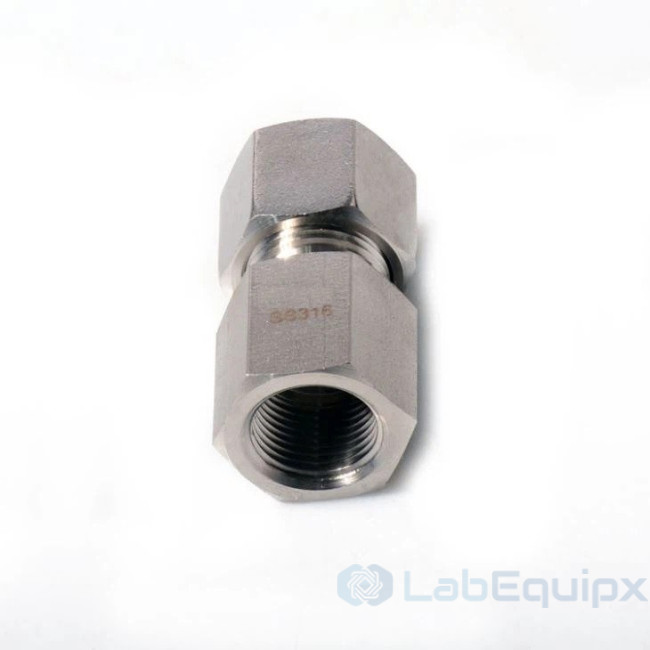

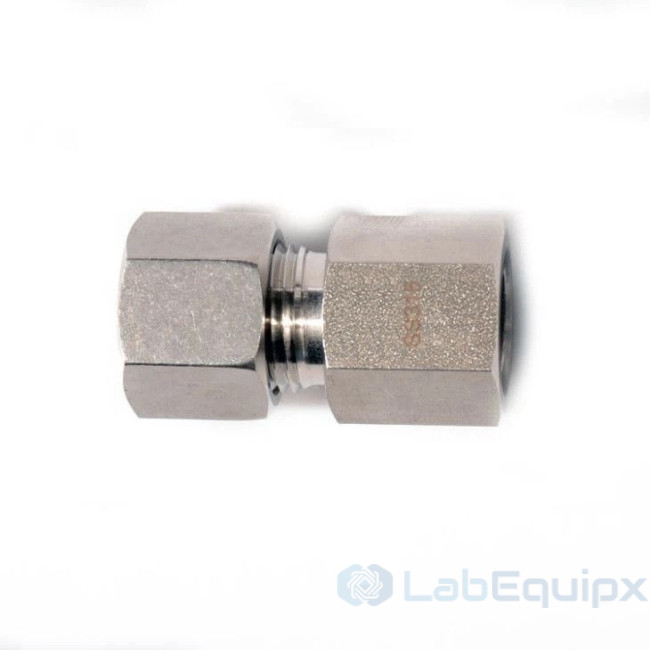

Stainless Steel Single Ferrule Female Connector

  • The Stainless Steel Single Ferrule Female Connector, model le113597214, joins a metric tube to a female threaded port. One end is a single ferrule compression connection to DIN2353 and ISO 8434.1, the other end is a female union. It covers pipe sizes from 6 mm to 42 mm. Hydraulic, process and instrumentation fitters use it in petroleum, chemical, power, electronics, metallurgy, machinery, shipbuilding and water treatment installations.

    How it works

    The tube passes through the nut and a single ferrule into the forged body. Tightening the nut on the hexagon body drives the ferrule into the cone of the body and onto the tube, which forms the seal and holds the tube. No welding or flaring of the tube is needed. Because the cone geometry follows DIN2353 and ISO 8434.1, the connector mates with tube and ferrules made to the same standards. The forged stainless steel body handles water, oil, gas and alkaline or acidic liquids.

    • Type: female union, single ferrule compression
    • Standard: DIN2353, ISO 8434.1
    • Pipe size: 6 mm to 42 mm
    • Body: forged stainless steel, hexagon head
    • Media: water, oil, gas, alkaline or acidic liquid

    Specify for your project

    • Tube outside diameter within 6 mm to 42 mm
    • Female thread type and size
    • Working pressure and temperature of the line
    • Stainless steel grade
    • Medium carried

    This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.

  • ConnectionCompression
    TypeFemale Union
    TechnicsForged
    • Stainless Steel Single Ferrule Female Connector
    • Stainless Steel Single Ferrule Female Connector
    • Stainless Steel Single Ferrule Female Connector
    • Stainless Steel Single Ferrule Female Connector
    • Stainless Steel Single Ferrule Female Connector
    • Stainless Steel Single Ferrule Female Connector
  • Product Details

    • Type: Female Union
    • Pressure: on request, by tube size
    • Female thread: type and size on request
    • Technics: Forged
    • Connection: Compression
    • Head Code: Hexagon
    • Material: Stainless Steel
    • Application: Water, Oil, Gas and Alkaline or Acidic Liquid
    • Certificate: on request
    • Usage: Petroleum, Chemical, Power, Electronics, Metallurgy, Machinery, Shipbuilding, Water Treatment, etc
    • Pipe size: 6mm-42mm
    • Standard: DIN2353, ISO8434.1
