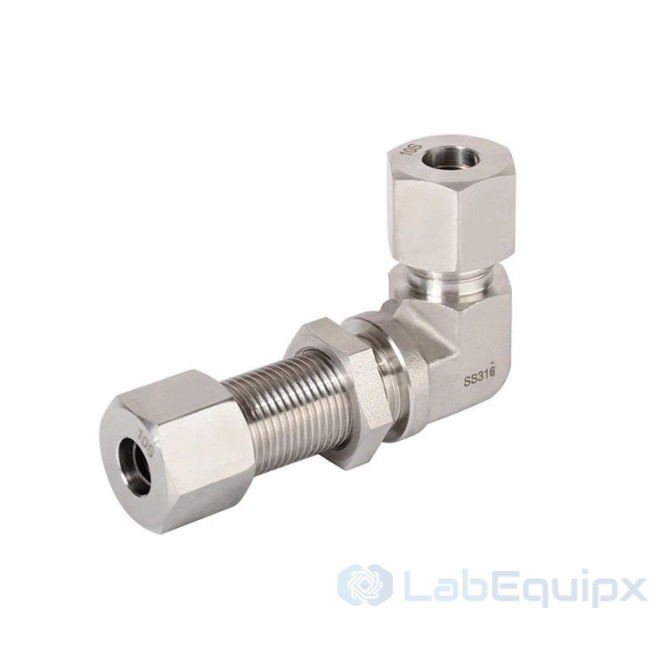

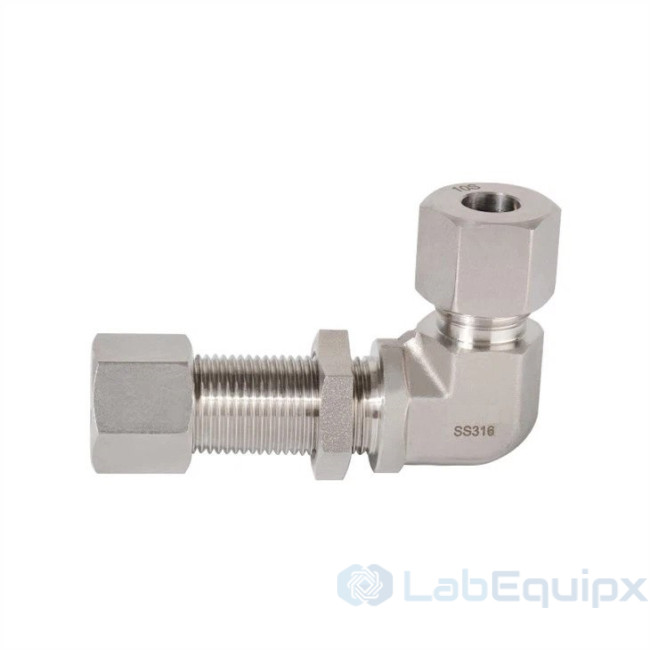

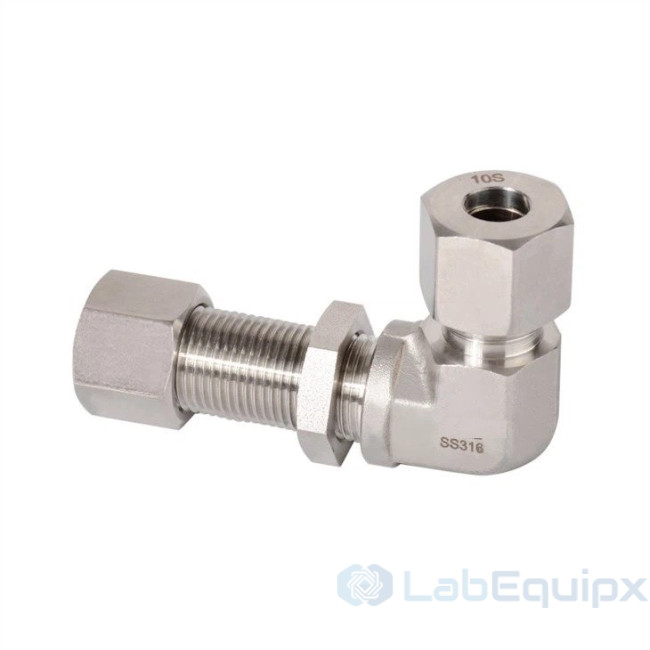

Single Ferrule Bulkhead Elbow

✓ In-house manufacturing — Hastelloy C276 & titanium✓ Custom engineering & prototypes✓ API / ASTM · CSA · CRN · CE✓ Serving US, Canada, EU, Middle East, Central Asia, Africa & LatAm

Stainless Steel Single Ferrule Bulkhead Elbow Hydraulic DIN2353, ISO8434.1

Technical Data
Type Union
Pipe size 6mm-42mm
Technics Forged
Product Details
- Type: Union
- Pipe size: 6mm-42mm
- Customization: Customized logo (Min. Order: 10 Pieces)
- Material: SS316, SS304, SS316 Ti, F51, F53, Inconel, Monel, Hastelloy, etc.
- Technics: Forged
- Connection: Compression
- Head Code: Hexagon
- Pressure: 315bar to 630 bar
- Standard: DIN2353, ISO8434.1
- Application: Water, Oil, Gas and Alkaline or Acidic Liquid
- Certificate: ISO9001, CE
- MOQ: 20PCS
- Usage: Power, Electronics, Metallurgy, Machinery, Shipbuilding, Water Treatment, etc

Brand

Coretest
