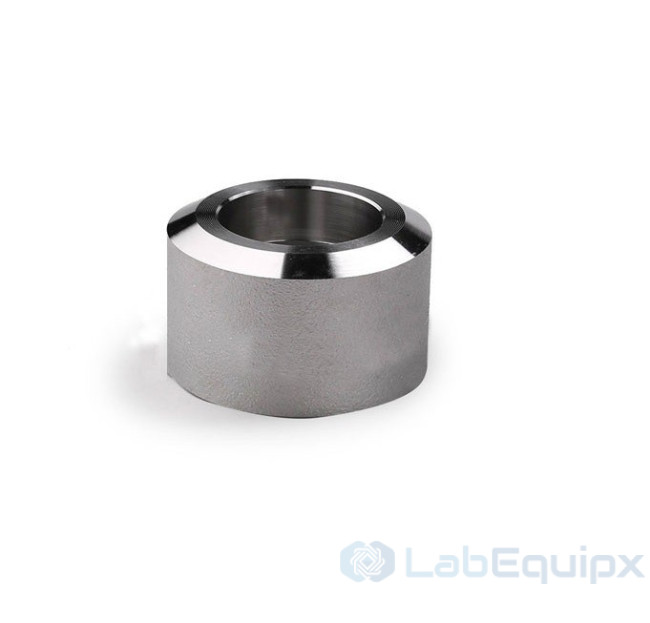

Stainless Steel Thread Half Coupling

  • The Stainless Steel Thread Half Coupling, model le113711682, is a short forged sleeve with a female thread at one end. The plain end is welded to a pipe or vessel wall, and the threaded end takes a gauge, plug, thermowell or branch pipe. It is made to B16.11 for forged fittings, with NPT or BSPT thread. The pressure class is confirmed on request. Plant and equipment builders use it to add threaded branch connections to pipework and tanks.

    Design

    The half coupling is forged from stainless steel and machined with a single female thread. Installation is by thread on the connection side. Port sizes are confirmed per order. Pressure rating and working temperature depend on the pressure class and material and are confirmed for each order. The thread form is selected as NPT or BSPT to match the mating part.

    • Standard: B16.11 forged fittings
    • Thread: NPT or BSPT, female
    • Pressure class: on request
    • Port size: on request
    • Material: forged stainless steel

    Specify for your project

    • Port size, nominal pipe size or mm
    • Thread form, NPT or BSPT
    • Pressure class
    • Design pressure and temperature of the connection

    This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.

  • Pressurehigh pressure
    MaterialStainless Steel
    Thread TypeNPT, BSPT
    • Stainless Steel Thread Half Coupling
    • Stainless Steel Thread Half Coupling
    • Stainless Steel Thread Half Coupling
  • Product Details

    • Material: Stainless Steel
    • Thread Type: NPT, BSPT
    • Pressure: on request, by size and material
    • Work Temperature: on request
    • Installation: Thread
    • Model Number: Half Coupling
    • Certification: on request
    • Port Size: on request
