Stainless Steel Socket Weld Reducer

  • The Stainless Steel Socket Weld Reducer, model le113707859, is a forged reducing insert for socket weld piping. It fits into the socket of a larger fitting and accepts a smaller pipe, so a line can step down in size at an existing tee, elbow or coupling. It is made to B16.11 for forged fittings and its pressure class is confirmed on request. Process plant and instrumentation installers use it on small-bore stainless steel lines.

    Design

    The insert is a single forged stainless steel part. Its outer end is sized for the socket of the larger fitting, and its bore forms a socket for the smaller pipe. Both joints are socket welds, so the reduction adds no threaded connection to the line. The port size range runs from 1/4 in to 4 in. The part is a high pressure, high temperature fitting. A numeric working temperature is not given, so the design temperature is confirmed against the pressure class and material grade for each order.

    • Standard: B16.11 forged fittings
    • Type: socket weld reducing insert
    • Material: forged stainless steel
    • Pressure class: on request
    • Port size: 1/4 in to 4 in

    Specify for your project

    • Large end and small end sizes within 1/4 in to 4 in
    • Pressure class
    • Design pressure and temperature of the line
    • Quantity, minimum order 20 pieces

    This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.

  • MaterialStainless Steel
    Port Size1/4"-4"

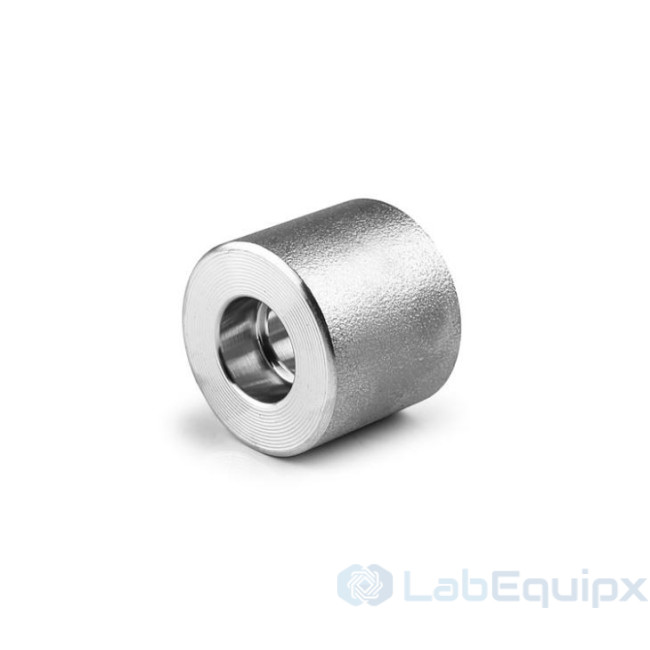

    • Stainless Steel Socket Weld Reducer

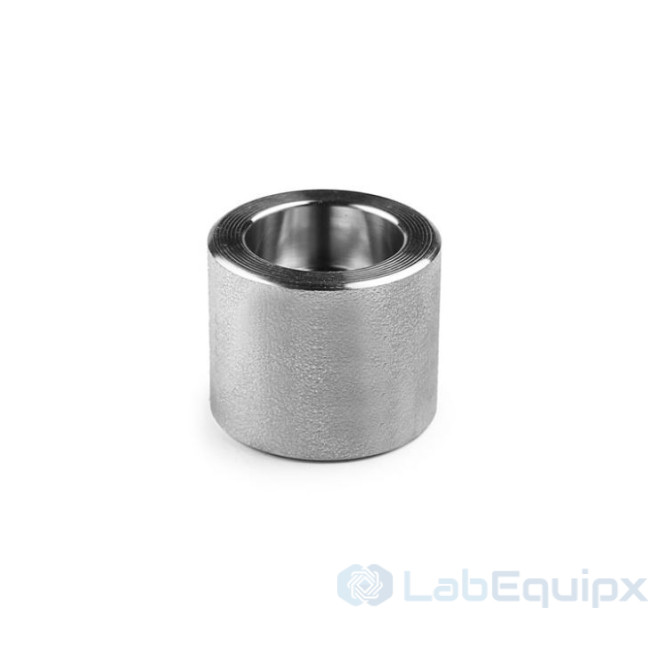

    • Stainless Steel Socket Weld Reducer

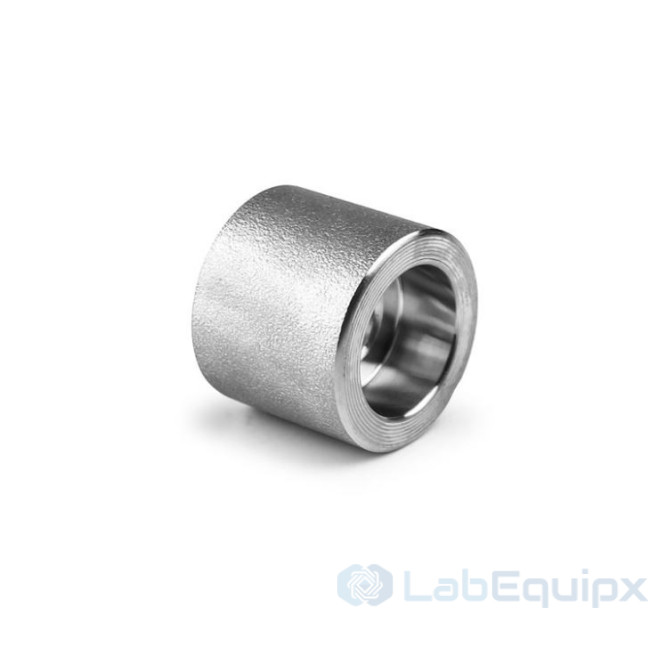

    • Stainless Steel Socket Weld Reducer
  • Product Details

    • Model Number: Reducer
    • Material: Stainless Steel
    • Port Size: 1/4"-4"
    • Pressure: on request, by size
    • Work Temperature: on request
    • Type: Socket Weld
    • Certification: on request
    • MOQ: 20pcs
