Recombination Cell

  • Function. Recombines gaseous and liquid hydrocarbons in the correct proportions at reservoir-representative conditions to reconstitute a live fluid.

    Controlled. Cell pressure and temperature; recombination ratio.

    Measured. Recombined fluid composition.

    Volume, pressure and temperature ratings, wetted materials and instrumentation are configured per project. Guaranteed performance and included hardware are stated only in the project-specific technical proposal and approved datasheet.

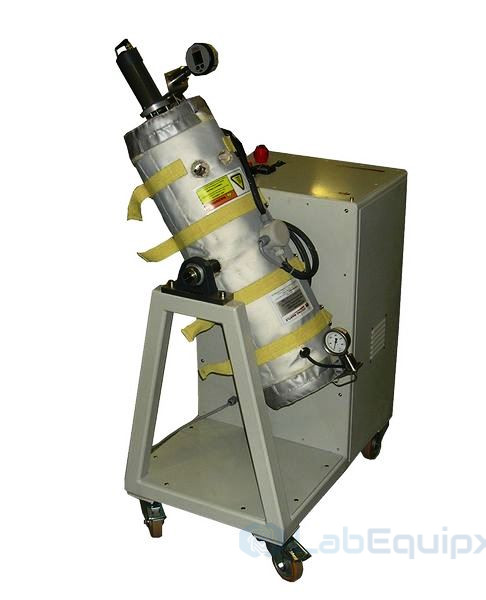

    Model: LERCA1000

    • Recombination Cell
  • Cell operating data

    • The sample chamber holds 2,000 cc.
    • The pressure rating is 1,000 bar (14,500 psi).
    • Temperature operation starts at ambient and reaches 175°C (350 °F).
    • Fluid-contact materials are stainless steel and Viton.
    • Pressure measurement accuracy is 0,1 % FS.
    • Temperature measurement accuracy is ± 0.5 °C.
    • Electrical input is 220 VAC at 50 Hz.

    Mixing and observation

    • The stirrer uses a magnetic drive to shorten recombination time.
    • For heavy oils, a motor drives the rocking motion while a ring inside the sample chamber helps agitate the fluid.
    • A bull's-eye viewing window allows observation of the dew point and bubble point.
    • Rocking allows the cell to handle both oil samples and gas condensates.
