Mobile Recombination and Restoration Apparatus

  • Function. Recombines and restores separator-sampled gaseous and liquid hydrocarbons at reservoir conditions in a field-deployable unit.

    Controlled. Pressure and temperature; recombination ratio.

    Measured. Recombined fluid.

    Volume, pressure and temperature ratings, wetted materials and instrumentation are configured per project. Guaranteed performance and included hardware are stated only in the project-specific technical proposal and approved datasheet.

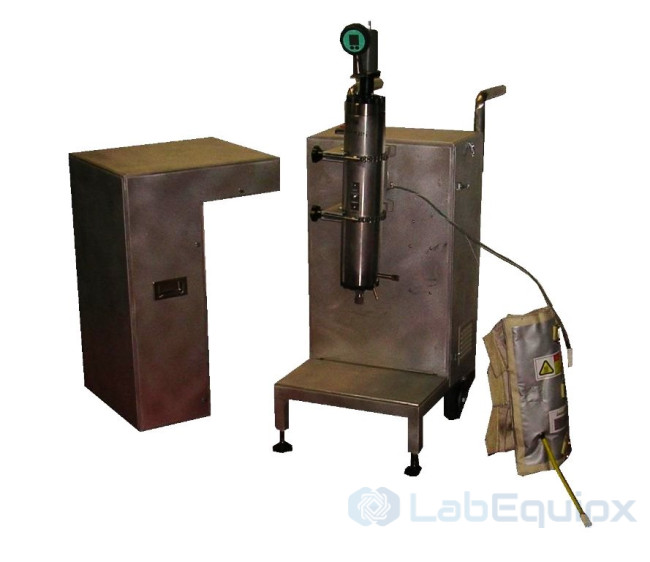

    Model: LEMRR1000

    • Mobile Recombination and Restoration Apparatus
  • Cell operating data

    • The sample chamber holds 1,000 cc.
    • The pressure rating is 1,000 bar (14,500 psi).
    • Temperature operation starts at ambient and reaches 200°C (400 °F).
    • Fluid-contact materials are stainless steel and Viton.
    • Pressure measurement accuracy is 0,1 % FS.
    • Temperature measurement accuracy is ± 0.5 °C.
    • Electrical input is 220 VAC at 50 Hz.

    Recombination and restoration

    • The stirrer uses a magnetic drive to shorten recombination time.
    • The apparatus performs sample restoration as well as recombination.
    • A motor drives the rocking mechanism, allowing the operator to place the cell upright or turn it into the inverted position.
