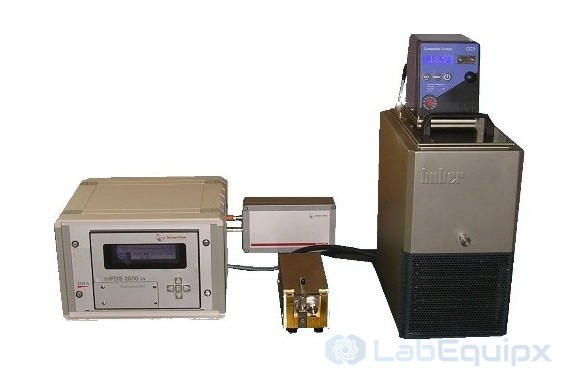

Digital Density Meter

Function. Measures reservoir-fluid density over the range encountered in analysis using a Hastelloy high-pressure high-temperature cell.

Controlled. Cell pressure and temperature.

Measured. Fluid density.

Volume, pressure and temperature ratings, wetted materials and instrumentation are configured per project. Guaranteed performance and included hardware are stated only in the project-specific technical proposal and approved datasheet.

Features

• Temperature range : up to 200°C
• Pressure range : up to 20,000 psi
• Density range : 0 to 3 g/cm3
• Accuracy : 10-3 g/cm3
• Fittings : 1/8 ''
• Wetted material : Hastelloy Accuracy : +/- 1 x 10 -3 g/cm3
• Power supply: 220 VAC 50 Hz
