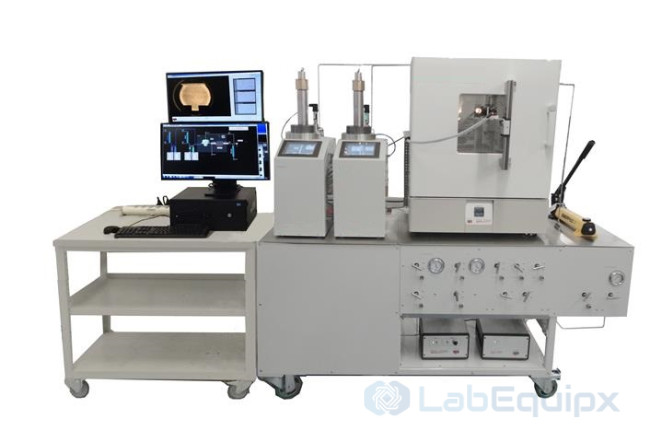

Visual scale tester
The LE/VISUAL/SCALEVAL tests how well scale inhibitors work when two incompatible brines meet, with pH kept under control. Both brines can be loaded with gas (CO2, nitrogen). The partial pressure of each gas is set to reach the target pH. Since pH strongly drives scale formation, the Visual Scale Tester recreates production scaling conditions closely.
Inhibitor efficiency is judged from two effects: scale precipitation, seen in a visual mixing cell, and scale deposition, seen in a capillary coil. Scale forms when the incompatible brines (for example brines of different salinity) are injected at the same time. The candidate treatment fluids are then injected. Besides routine scale inhibitor screening, the apparatus imitates field conditions and helps balance the competing aims of corrosion control and scale control. In the mixing cell the operator sees scale and/or gunking form. In the capillary coil, the pressure drop shows when deposition starts and how fast it grows.
Model: LEVISUALSCALEVAL
This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.
Specifications
- Maximum pressure: 10,000 psi
- Maximum flow rate: 50 ml/min
- Maximum temperature: 200°C
- Temperature accuracy: 0.1 °C
- Pressure accuracy: 0.1% FS
- Wetted material: Hastelloy
- Nitrogen supply needed: 2,000 psi
- CO2 supply needed: 600 psi
- Electrical supply: 220 VAC, 50/60 Hz
Benefits
- CO2 partial pressure control sets the pH
- The visual cell shows both scaling and gunking
- Scale inhibitors can be qualified when corrosion inhibitors are present
