HTHP Consistometer NZCJ-2120

  • The 2120 HTHP Consistometer, item 795821, tests cement slurry consistency at high temperature and high pressure. The slurry cup sits in a pressurized, heated cylinder while a potentiometer reads the consistency of the slurry as the test runs. Cementing laboratories use it to follow how a slurry develops consistency under downhole-type conditions.

    Design

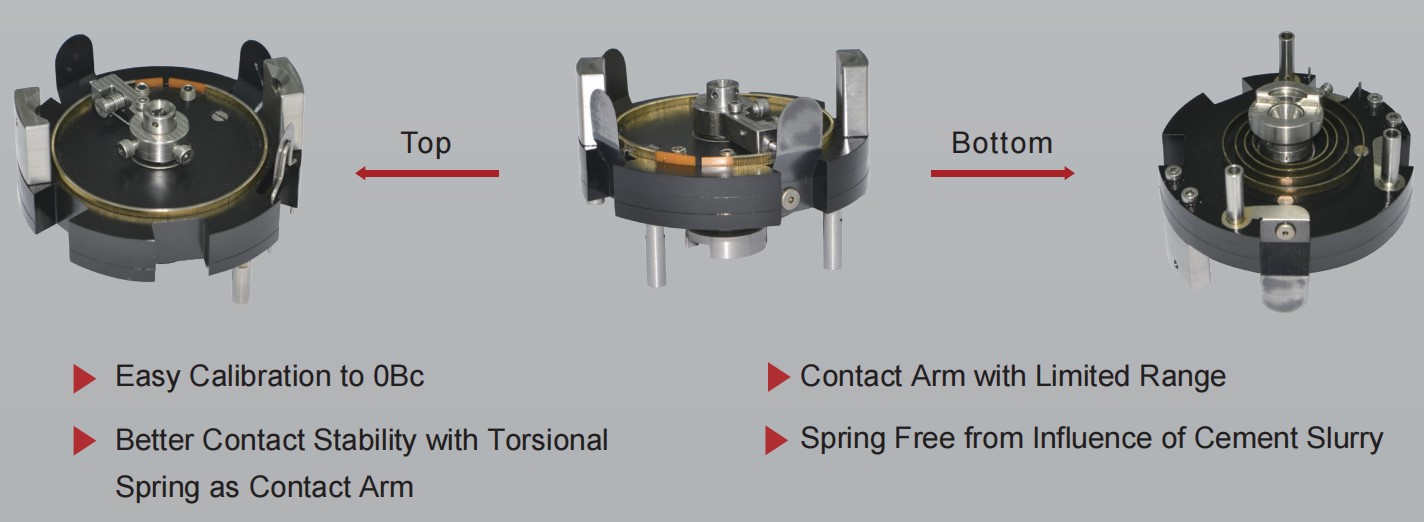

    The cylinder cover can be removed without a hammer, which shortens turnaround between tests. The potentiometer has an optimized design that improves accuracy and durability and makes calibration and cleaning easier. The control logic is programmable, so special user demands can be met and functions can be upgraded later by programming.

    Controls and data

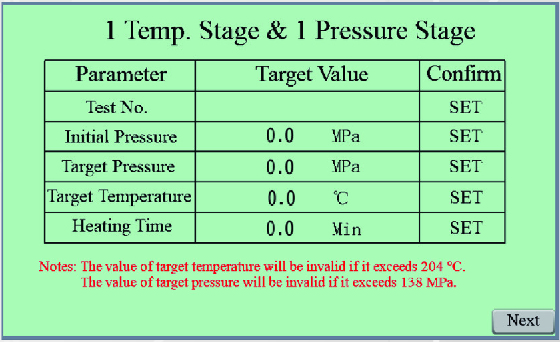

    A large touch screen replaces button panels. The operator sets temperature controller parameters and test parameters directly on the screen, and can enter or change them during setup through a short menu. Test data and the test curve are shown and recorded on the same screen. Screenshots of the data and curve can be taken, exported and saved.

    • Touch-screen entry of temperature controller and test parameters
    • Live display and recording of test data and curve
    • Screenshot capture, export and saving
    • User-set alarm values for several parameters
    • Programmable functions for later upgrades

    Specify for your project

    • Maximum test temperature and pressure required
    • Parameters that need alarm limits
    • Data export and screenshot handling needed by the laboratory
    • Mains supply and pressure source at site
    • Spare slurry cups and potentiometer parts

    This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.

  • HTHP Consistometer NZCJ-2120
