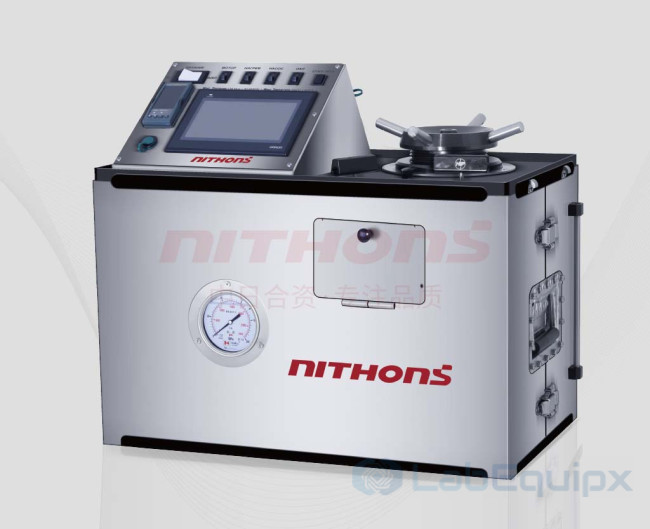

Portable HTHP Consistometer

  • The Portable HTHP Consistometer, item 182034, is a compact high temperature, high pressure consistometer for cement slurry. It records slurry consistency through a potentiometer while the slurry is held at test temperature and pressure, and it is built to move between laboratories or to a site laboratory.

    Design

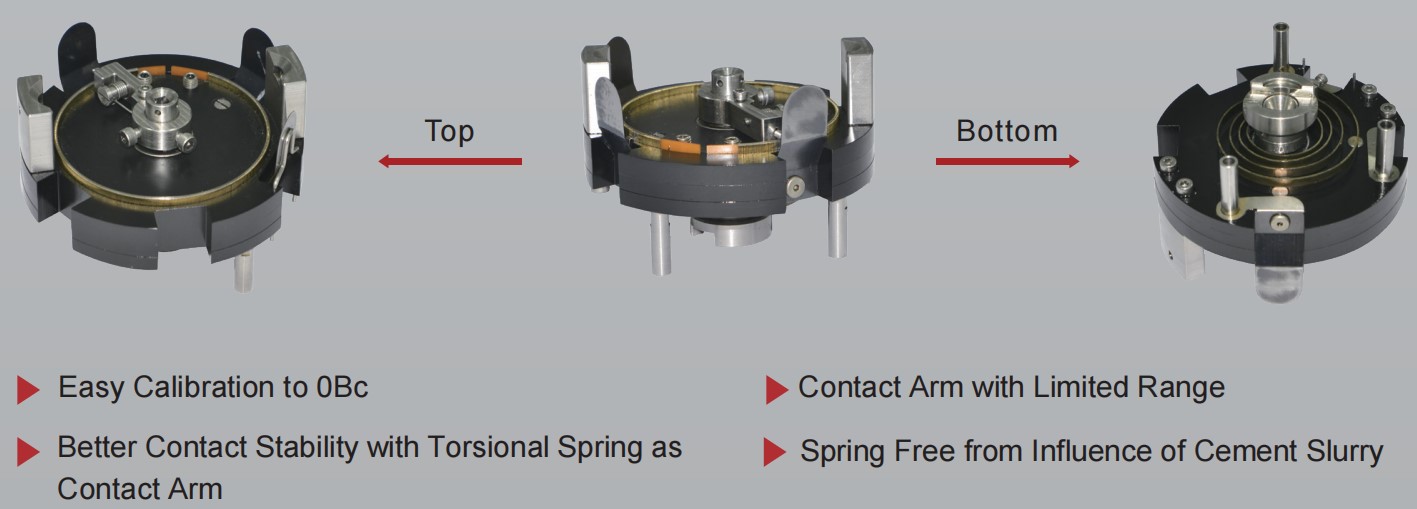

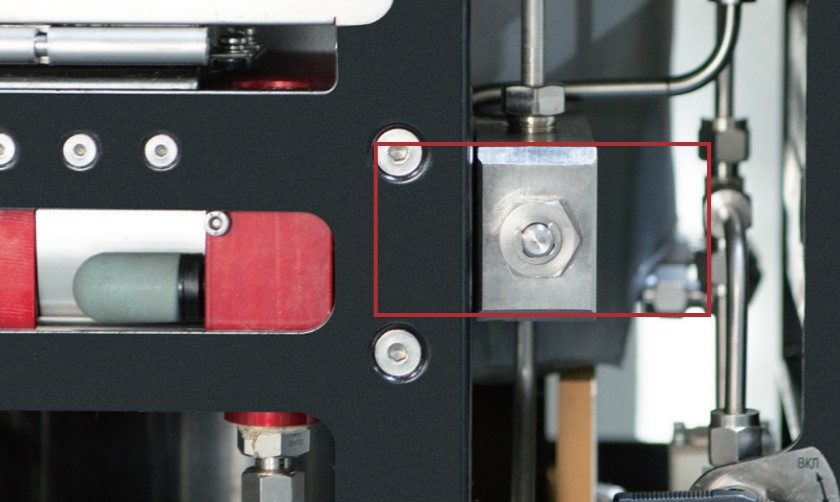

    Cooling is through a cast-aluminum chiller. The cast body has a larger contact area and faster heat dissipation, so the instrument cools down much faster at the end of a test. The high-pressure line uses a tee filter: the filter element is removed and refitted with a small wrench using one hand, and the element is easier to clean. The potentiometer has an optimized design that improves accuracy and durability and makes calibration and cleaning easier.

    Controls and data

    A large touch screen displays and records test data and the test curve. The instrument has a USB port and an Ethernet port for connection to a computer, so test data and curves can be saved and reviewed off the instrument. Alarm values can be set for several parameters.

    • Large touch screen with live data and curve
    • USB and Ethernet ports for PC connection
    • User-set alarm values for several parameters
    • Cast-aluminum chiller for fast cooling
    • Tee high-pressure filter, one-hand element change

    Specify for your project

    • Maximum test temperature and pressure required
    • Whether data goes to a PC over USB or over the laboratory network
    • Cooling water or chiller supply at site
    • Mains supply
    • Spare filter elements and potentiometer parts

    This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.
