Autoclave Systems high pressure and high/low temperature test

Autoclave Systems for high pressure and high or low temperature testing are forged pressure vessels with stands, porting, stirrers, holders and controls for exposing metal coupons and specimens to hot, pressurized, corrosive fluids. They serve corrosion laboratories and materials groups running corrosion testing, electrochemical studies, corrosion inhibitor analysis, shear stress analysis and slow strain rate testing. Results guide material selection for sour and high-pressure service.

How it works

The vessel body and lid are machined from solid forgings with no welds or overlays, in 316 stainless steel, Hastelloy C-276, Inconel 625 or titanium. The bolted lid closes on a metallic or PTFE seal ring. Working pressure is up to 103.4 MPa (15,000 psi) and working temperature from -50 to 600 °C (-58 to 1112 °F), with vessel capacities up to 20 liters. Specimens are mounted on the chosen holder, test fluid is charged, and pressure and temperature are held at set point for the exposure period.

Specimen holders include rotating cage, rotating coupon, rotating cylinder electrode, 3 and 4 point bend fixtures and static coupon racks. Water-cooled feed-throughs pass a load train for tensile, slow strain rate or fatigue testing. Porting is configured per project: HIP or NPT connections, isolated feed-throughs, sight glass windows. An in-line or belt drive magnetic stirrer is available. Control is by the Model AC-20 PLC controller with touch screen, by a PC with data acquisition and custom software, or by a multi-system controller for several autoclaves.

What is included

• Forged autoclave vessel with bolted lid and metallic or PTFE seal ring

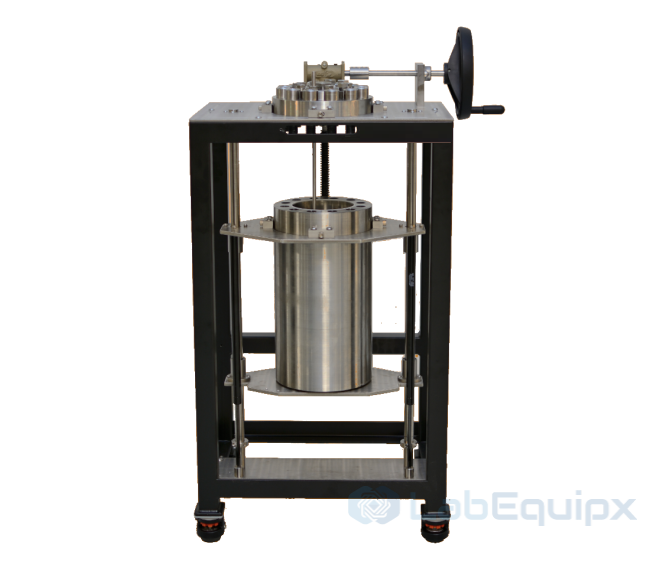

• Stand: fixed lid or retractable body, bench top, or multi-autoclave frame
• Porting as configured: HIP, NPT, isolated feed-through, sight glass
• Coupon holder of the selected type
• Controller: AC-20 PLC with touch screen, PC-based data acquisition, or multi-system control

Specify for your project

• Working pressure and temperature, up to 103.4 MPa and -50 to 600 °C
• Vessel capacity, up to 20 liters, and material: 316 SS, C-276, Inconel 625 or titanium
• Specimen type and holder: static, rotating, bend fixture, or load train with water-cooled feed-through
• Stand configuration and number of autoclaves under one controller
• Porting, isolated feed-throughs, sight glass and stirrer type
• Controls: PLC touch screen or PC-based data acquisition

This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.

CONSTRUCTION

• MACHINED FROM SOLID FORGINGS (No Welds/Overlays)

PRESSURES UP TO

• 103.4 MPa
• 15,000 PSI

TEMPERATURES

• -50 – 600°C
• -58 – 1112°F

Materials of Construction

• 316 Stainless Steel, Hastelloy C-276, Inconel 625, and Titanium from Solid Forgings.
• Bolted Lid Closure with Metallic or PTFE Seal Ring.

High Pressure High Temperature (HPHT) Applications

• Pressures Up to 103.4 MPa (15,000 PSI)
• Temperatures Up to 600°C (1112°F)Capacities Up to 20 Liters
• Water-Cooled Feed-Thru Fittings Available for Tensile, Slow Strain Rate, or Fatigue Testing

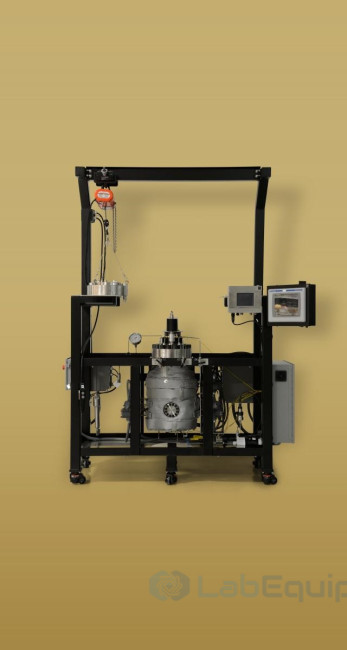

Custom Stand Options

• Fixed Lid or Retractable Body
• Bench Top
• Multi-Autoclave

Custom Porting

• HIP
• NPT
• Isolated Feed Through
• Sight Glass Windows

Magnetic Stirrer

• In-Line
• Belt Drive

Coupon Holder Options

• Rotating Cage
• Rotating Coupon
• Rotating Cylinder Electrode
• 3 and 4 Point Bend Fixtures
• Static Coupon

Cortest Model AC-20

• Programmable Logic Controller (PLC) Based System Control with Touch Screen Interface

PC Based with Data Acquisition

• Custom Software Development

Multi-System Controls

• Allows for the Control of Multiple Systems from a Single Controller
