LEDT

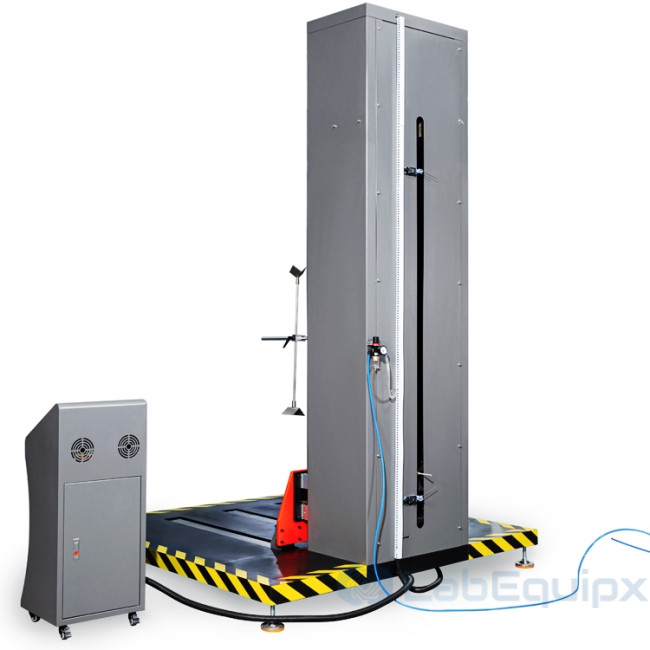

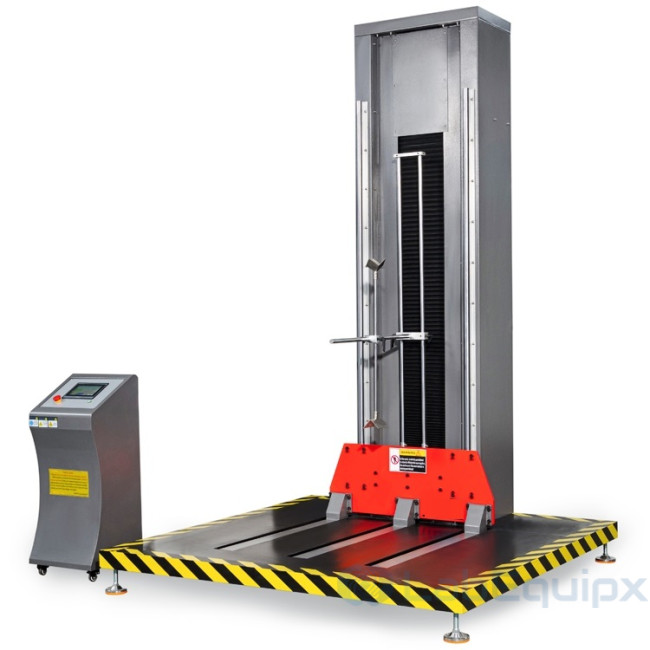

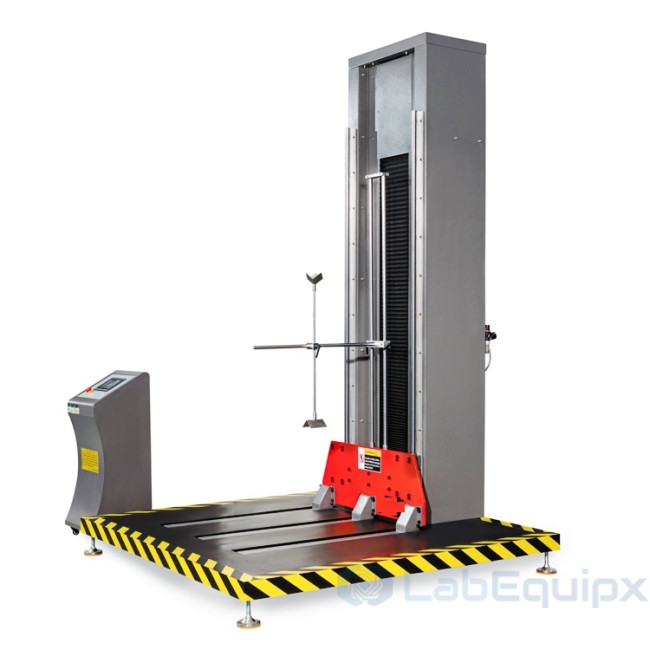

Zero Height Drop Tester LEDT
For large packaging with high mass. the vertical drop height during transport will be low and therefore they need drop test with relatively low drop height. Zero Height Drop Tester LEDT is mainly used for drop test of big package.
It uses an E-shaped fork that can move downward quickly as a bracket and the specimen is placed in balance according to test requirement(surface, edge or corner drop test). During testing, the bracket moves downwards quickly ahead of specimen with acceleration greater than 3G to ensure the separation of bracket and specimen and achieve free fall. The standard fall distance is ranged between 2.54cm-120cm.
Technical Parameters:
Model LEDT020 LEDT030 LEDT050 Drop Height(mm) 0~1500 0~1500 0~1500 Payload Capacity(kg) 200 300 500 Package Size(mm) 1200×1200×1200 1200×1200×1200 1200×1200×1200 Drop Mode Free Fall Drop Machine Size(mm) 2100×1700×2800 2100×1700×2800 2100×1700×2800 Machine Weight(kg) 2100 2300 2300 Power/Air Supply 3Ф AC380V, 50Hz（compressed Air）0.5~0.7Mpa Applicable Standards ISO2248-72(E)GB/T4857.5 JISZ0202-87 IEC68-2-27 Configuration
No. Equipment name Model Qty. Remarks 1 Zero Height Drop tester LEDT020 1 set 2 Pneumatic–hydraulic pressure cylinder 1 pcs 2 Controller 1 set 3 Edge and Corner Auxiliary Fixture 1 set 4 Connection Cable 1 set
| Model | LEDT |
| Brand | LabEquipx |
