Transportation Simulators LEGYST
Mainly used in repeating impact, unloading or jump test that comply to ISTA, ASTM, TAPPI, ISO MIL-STD, FED-STD, UN, DOT and other industrial and government standards. Frequency range is 2~5Hz with fixed displacement of 1 inch(25.4mm)and maximum acceleration of 1.25G.

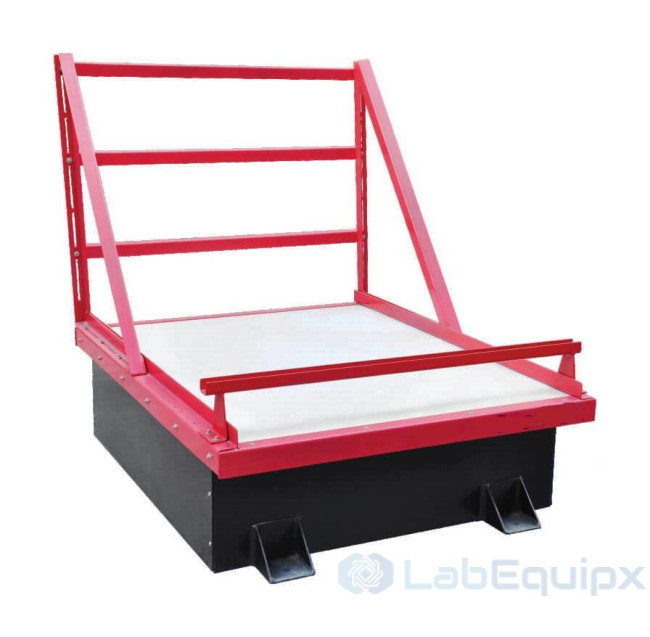

LEGYST series vibration platforms apply eccentric cam principle to achieve rotation (marquee), vertical and non-synchronized(30°unbalance vibration) vibration modes.
Features
- Adjustable frequency;
- Fixed amplitude;
- Convenient installation, operation and maintenance;
- High fence for the back side.
Method of motion
Technical parameters:
Model LEGYST100 LEGYST200 LEGYST500 LEGYST1000 LEGYST2000 Max. Payload(kg) 100 200 500 1000 2000 Table Size（mm） 1000×1200 1200×1200 1200×1500 1500×1500 1500×1500 Frequency Range 2~5Hz(120~300)RPM Displacement 1 Inch Fixed Test Motions Rotary(Synchronous) Power Supply AC110/220V±10% 50/60Hz 3Ф220V/380V±10% 50/60Hz
| Model | LEGYST |
| Brand | LabEquipx |
