Shock Tester

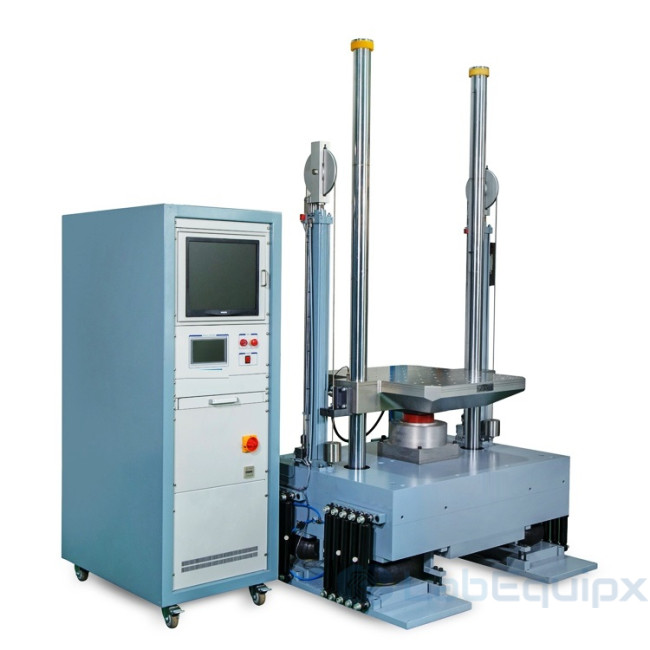

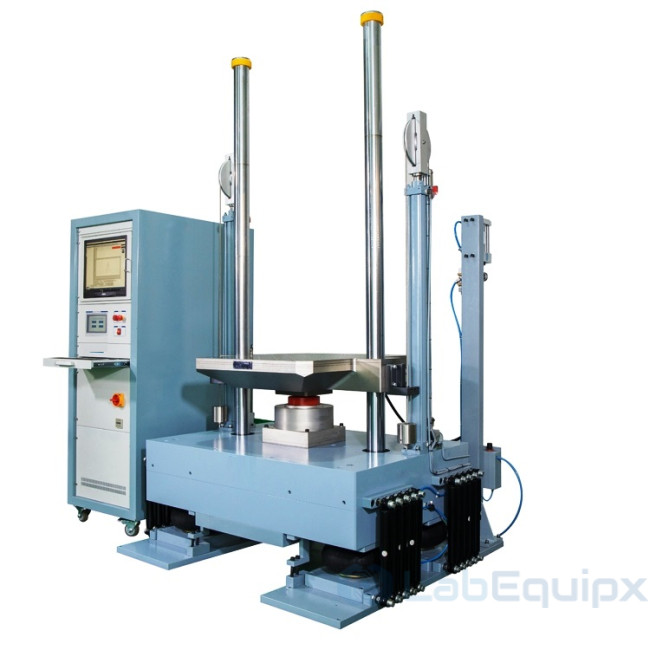

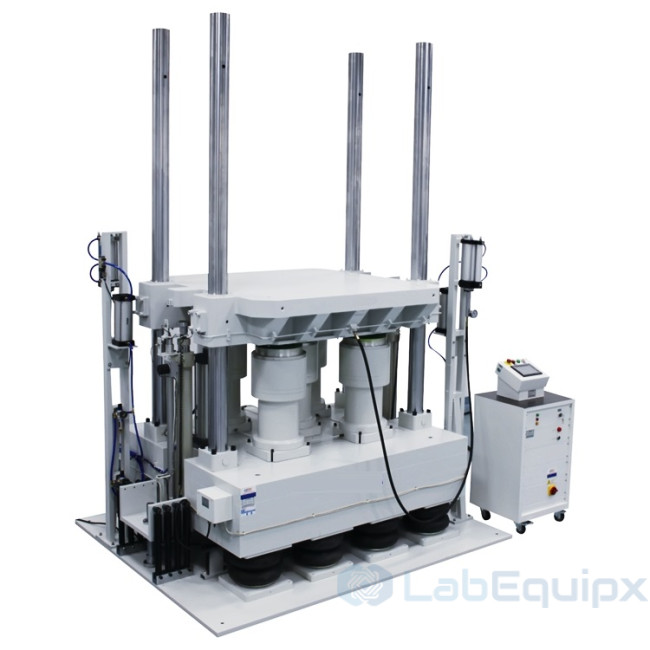

  • The LEGSKT shock tester reproduces the transient shocks a product meets in production, transport, loading and use: impact, bump, free fall and tumbling. It measures product fragility and evaluates how well packaging protects the product. Users are in aviation, aerospace, marine, military, consumer electronics, automotive, home appliances and display devices. Eleven models cover specimens from 10 kg (LEGSKT10) to 2000 kg (LEGSKT2000).

    How it works

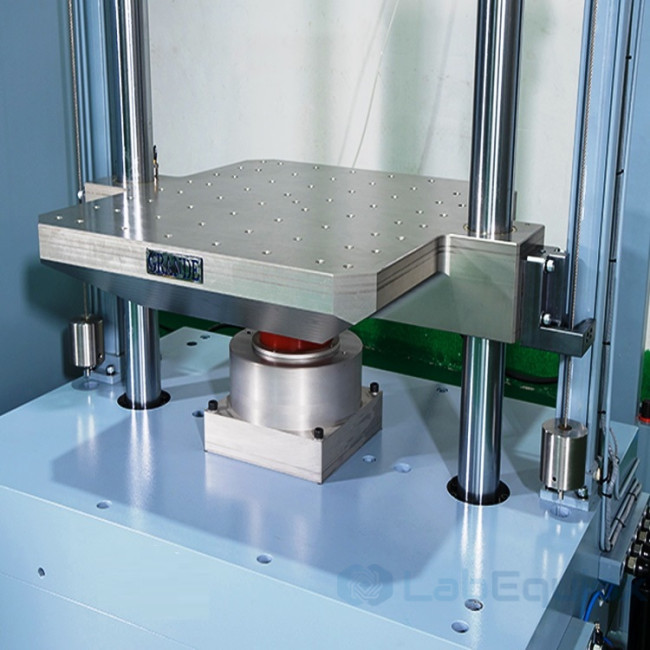

    The specimen is fixed to the table, which is accelerated and stopped against a waveform generator. The generator shapes the pulse: half sine as standard, saw-tooth or square as options. A pneumohydraulic booster and braking system stops the table after the first impact so the specimen is not hit several times. Air spring shock absorbers and a hydraulic damping mechanism limit the transfer of impact to the floor. Operation is by touch screen with a safety protection system.

    • Saw-tooth (option, LEGSKT30 and up): 100 G, 18 to 6 ms
    • Square (option, LEGSKT50 and up): 150 or 100 G, 30 to 6 ms
    • Power: AC 1Ψ 110 V or 220 V, or 3Φ AC 380 V, 50/60 Hz
    • Compressed air: 0.5 to 0.8 MPa

    Models

    ModelTable, cmMax load, kgHalf sine, GPulse, ms
    LEGSKT1035×3510200020 to 0.5
    LEGSKT25On request25100020 to 0.5
    LEGSKT30On request3060030 to 0.5
    LEGSKT5050×605060030 to 1
    LEGSKT10070×8010060030 to 1
    LEGSKT200100×10020050030 to 2
    LEGSKT300120×12030050020 to 3
    LEGSKT600150×15060030020 to 3
    LEGSKT1000200×200100030020 to 3
    LEGSKT1500200×200150030 to 30020 to 3
    LEGSKT2000200×200200030 to 30020 to 3

    Machine weight runs from 1500 kg (LEGSKT10) to 21500 kg (LEGSKT1000 to LEGSKT2000).

    Specify for your project

    • Specimen mass and footprint
    • Peak acceleration and pulse duration
    • Waveforms: half sine, saw-tooth, square
    • Test standard
    • Power supply and compressed air

    This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.

    • Shock Tester
    • Shock Tester
    • Shock Tester
    • Shock Tester
    • Shock Tester
    • Shock Tester
    • Shock Tester
    • Shock Tester
    • Shock Tester
    • Shock Tester
  • The Application of Shock Test

    Shock test is used to accurately measure the product fragility and evaluate the protective ability of product packaging. A shock test system can be supplied to meet industrial or internal company standards.

    Suitable shock test for aviation, aerospace, marine, military, consumer electronics, automobiles, home appliances and display devices.

    By selecting different waveform generator, can perform: half sinusoidal wave, trapezoidal wave.

    Features

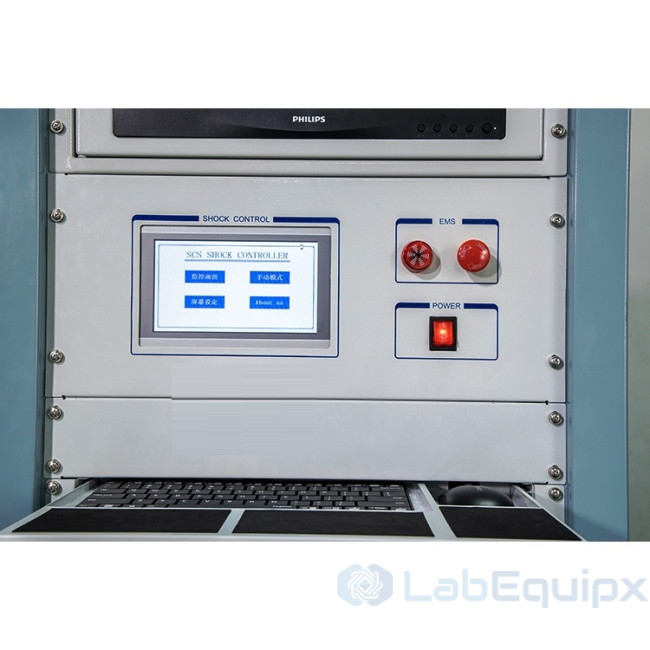

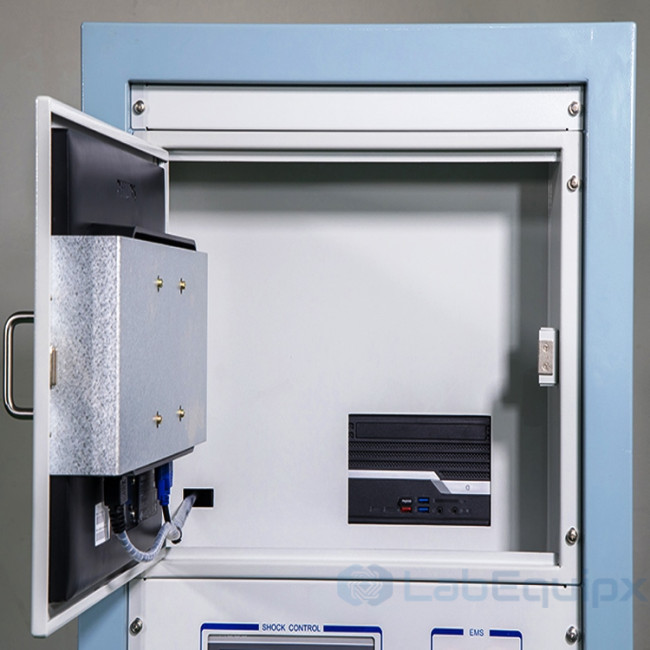

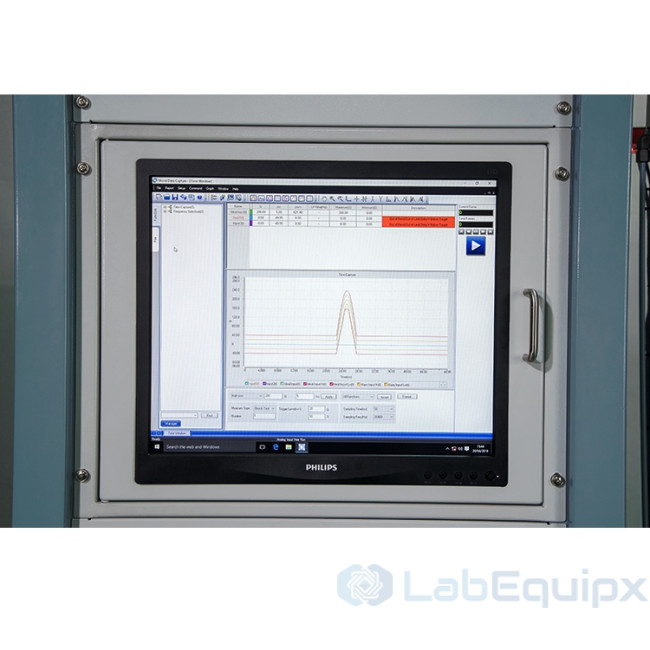

    • Convenient touch screen operation;
    • Complete safety protection system;

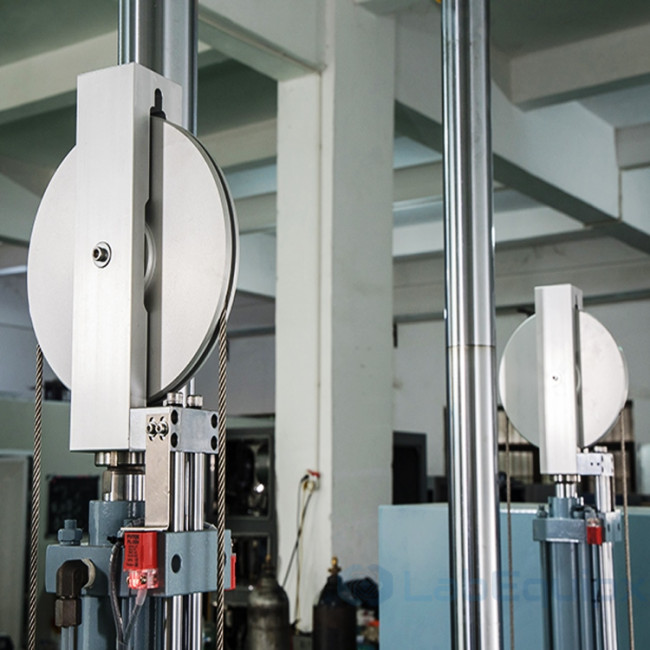

    • Utilize pneumohydraulic booster and braking system to prevent multiple impact;

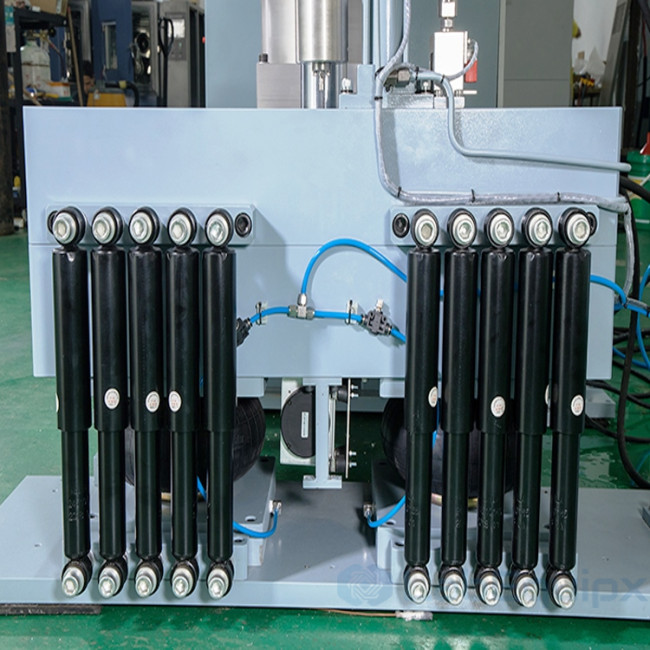

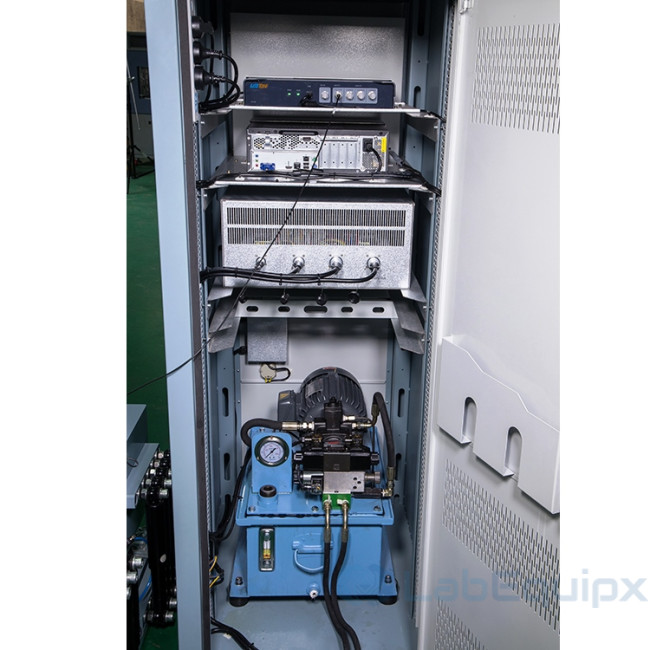

    • With air spring shock absorber and hydraulic shock damping mechanism, the influence of impact on the surroundings is limited.

    Technical Parameters:

    ModelLEGSKT10LEGSKT25LEGSKT30LEGSKT50LEGSKT100LEGSKT200LEGSKT300LEGSKT600LEGSKT1000LEGSKT1500LEGSKT2000
    Table Size(cm)35*35On requestOn request50×6070×80100×100120×120150×150200×200200×200200×200
    Max. Specimen Weight(kg)10253050100200300600100015002000
    Max. Acceleration(G)Half Sine2000100060060060050050030030030-30030-300

    Saw-tooth(Option)--100100100100100100100100100

    Square(Option)---150150150100100100100100
    Pulse duration(ms)Half Sine20~0.520~0.530~0.530~130~130~220~320~320~320~320~3

    Saw-tooth(Option)--18~618~618~618~618~618~618~618~618~6

    Square(Option)---30~630~630~630~630~630~630~630~6
    Machine dimension(cm)100*100*200110*110*210120×105×245120×105×245130×120×260150×130×260200×160×300230×180×310250×250×310250×250×310250×250×310
    Machine weight(Kg)150017001900200032004200850015500215002150021500
    Power supplyAC 1Ψ 110V;AC 1Ψ 220V 60/50Hz 0.5~0.8MPa3ФAC380V 50/60Hz Compressed air 0.5~0.8MPa
