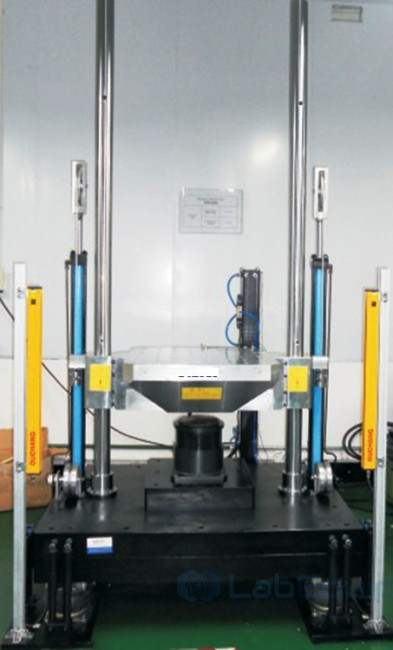

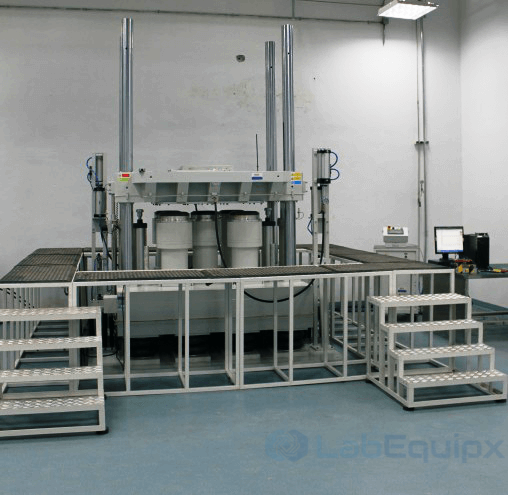

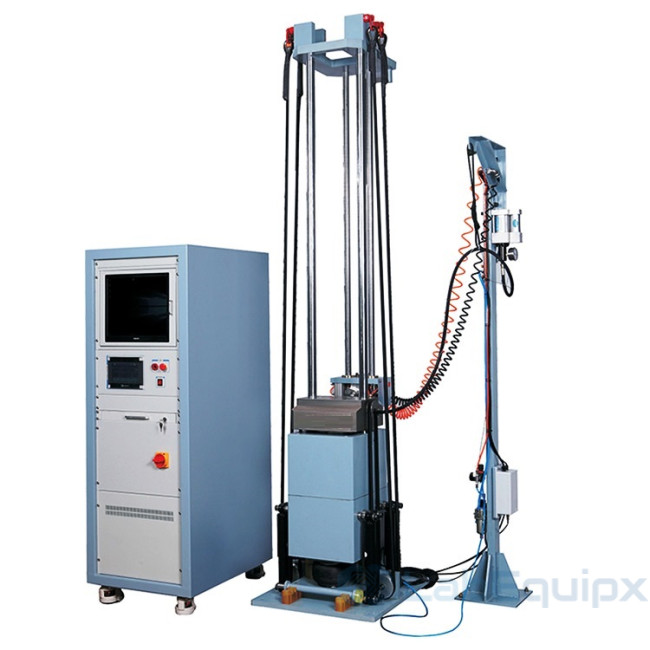

    • High Speed Shock Test Systems LEGHSKT

    • Main applications: mobile phones, computer components, optical components, connectors, etc, also to test the shock absorbance ability of materials.

    • Specifications

      ModelLEGHSKT10LEGHSKT25
      Table Size(mm)200×250300×300
      Max. Payload(kg)1025
      Shock PulseHalf Sine WaveHalf Sine Wave
      Acceleration Range20~2000（bare table）20~0000（bare table）
      Pulse Duration(ms)0.2~180.2~18
      Max. Drop Height(mm)15001500
      (W*D*H)MachineDimension(mm)660×700×23801350×1250×3300
      Power SupplyAC220V 50Hz, Compressed Air: more than 0.5Mpa
      Machine Weight(kg)8201850

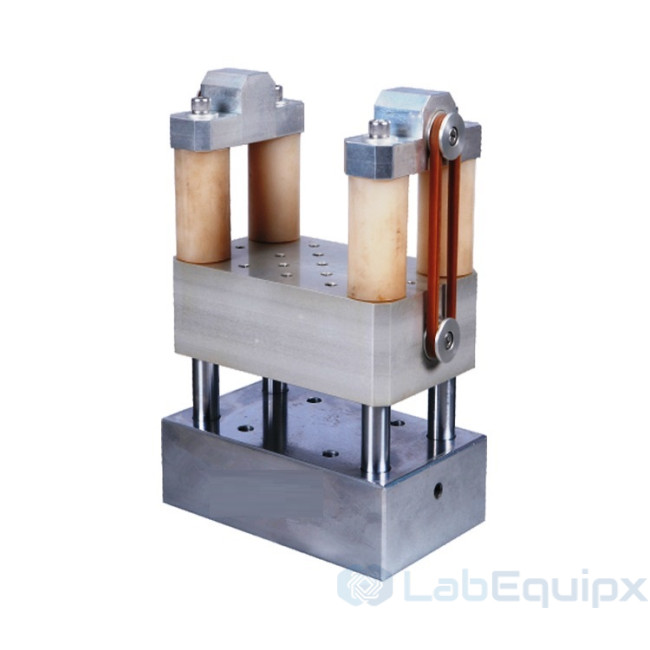

      Dual Mass Shock Amplifier(DMSA)

      Shock PulseHalf Sine Wave
      Table Size(mm)150×150180×180
      Max. weight of specimen(kg)35
      Acceleration Range（G）300~50000300~50000
      Pulse Duration(ms)0.1~0.50.1~0.5
