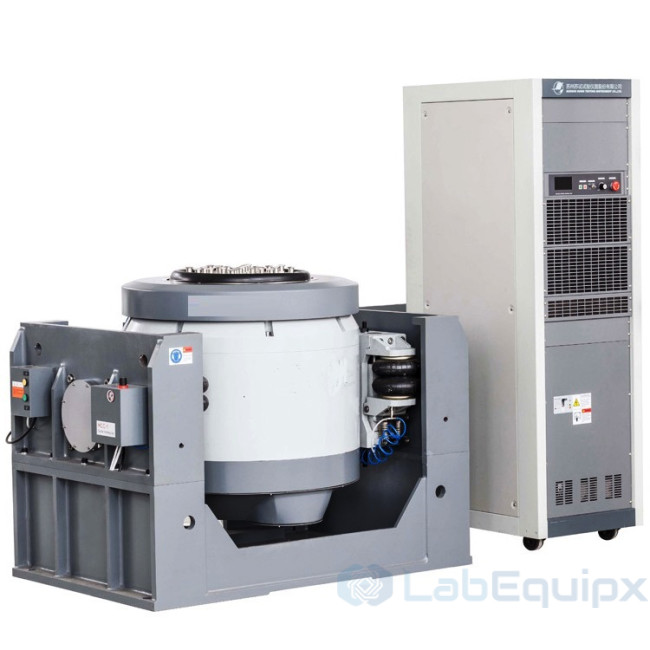

Water Cooling Vibration Test Systems LEEVW
Water Cooling Vibration Test Systems LEEVW takes the advantages of big force,high loading capacity,high cooling frequency.It performances Sinusoidal vibration test,Wideband random vibration test,Classic shock(half sine,trapezoidal vibration,Peak vibration and Shock response spectrum test.
Sine force range is from 50kN to 1000kN,the loading capacity is from 800KGs to 1500KGs.We are also providing the integrated climatic simulations and mechanical test equipment.
Product Details
EVW series electromagnetic vibration system simulates the vibration environment under the laboratory condition, and test the impact strength as well as reliability of various vibration test applications. In the laboratory, with the aid of vibration testing system, model simulation of reproduction of sinusoidal, random, resonant search and dwell classical shock and road simulation, etc. can be achieved. It is essential for product quality assurance, new product research and development.
EVW series electromagnetic vibration testing system is specially designed to meet the need for long time operation, installation of vibration resistant base can achieve vertical and horizontal vibration. The standard platform is installed with high efficiency airbag shock isolation device so that the vibration transmitted to the building can be minimized, at the sane time avoid the need of additional foundation in most of the cases.
A complete set of vibration testing system is composed of shaker, power and vibration measuring control system, in accordance with relevant national and international standards(such as: MIL-STD,DIN,ISO,ASTM,IEC,ISTA,GB,GJB,JIB、BS, etc.)to provide technical support for establishing product quality inspection
Features
- Sine force range:50kN~1000kN
- High quality Spring,Excellent performance for Low Frequency.
- Ratio of Random and Since force:1:1
- Excellent Magnetic Uniformity.
- Expand 2 times Sinusoidal Excitation Force.(Option 3 Times）
- Sine,Random,Shock.,etc test.
- Max Displacement(P~P（mm）):51mm,76mm or 100mm
- Excellent performance of Blower,low noise and long life.
- Optimization design of Armature：Light，Excellent Resistance Vibration
Technical parameters:
System Model LEEVW360 LEEVW390 LEEVW3120 LEEVW3160 LEEVW3200 LEEVW3250 LEEVW3300 LEEVW3350 Power Amplifier Model LA60K LA90K LA120K LA160K LA200K LA250K LA300K LA350K Shaker Model E60T45 E90T45 E120T55 E160T65 E200T65 E250T67 E300T82 E350T82 Max.Sine Force(KN/kgf) 60/6000 90/9000 120/12000 160/16000 200/20000 250/25000 300/30000 350/35000 Max.Shock Force(KN/kgf) 120/12000 90/18000 250/25000 320/32000 400/40000 500/50000 600/60000 700/70000 Frequency Range(Hz) 5-2,700 5-2,700 5-2,500 5-2,200 5-2,200 5-2,000 1-1,700 1-1,700 Max. Sine/Random Acceleration(g) 100/60 125/60 100/60 100/60 100/60 100/60 100/60 100/60 Max. Velocity(m/s) 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 Max. Displacement p~p(mm) 76/63 76/63 76/63 76/63 76/63 76/63 76/63 76/63 Max.Payload(kg) Standard 1000,(Optional 2,000) Standard 1000,(Optional 2,000) Standard 1000,(Optional 2,000) Standard 1000,(Optional 2,000) Standard 1000,(Optional 2,000) Standard 1000,(Optional 2,000) Standard 1000,(Optional 2,000) Standard 1000,(Optional 2,000) Armature Diameter (mm) Ф450 Ф450 Ф550 Ф650 Ф800 Ф670 Ф820 Ф820 First-order Resonant Frequency(Hz)(±5%) 2300 2300 2100 1800 1800 1600 1500 1500 Armature Weight(kg) 60 70 90 150 150 180 300 350 Cooling Unit C1 C1 C1 C2 C2 C2 C3 C3 Heat Exchange Capacity 100 100 100 220 220 220 350 560 External Circulating Water Pressure 0.28-0.4Mpa 0.28-0.4Mpa 0.28-0.4Mpa 0.28-0.4Mpa 0.28-0.4Mpa 0.28-0.4Mpa 0.28-0.4Mpa 0.28-0.4Mpa External Circulating Interface 1-1/4" or DN32 1-1/4" or DN32 1-1/4" or DN32 1-1/4" or DN32 1-1/4" or DN32 1-1/4" or DN32 1-1/4" or DN32 1-1/4" or DN32 Operating Ambient Temperature: 0~40 ℃; Humidity: 0~90%, no condensation Power Supply 3Phase AC,380±10%，50Hz Air Supply 0.7Mpa
| Model | LEEVW |
| Brand | LabEquipx |
