Vibration Test Systems LEEV
EV series electromagnetic vibration system simulates the vibration environment under the laboratory condition, and test the impact strength as well as reliability of various vibration test applications.
In the laboratory, with the aid of vibration testing system, model simulation of reproduction of sinusoidal, random, resonant search and dwell classical shock and road simulation, etc. can be achieved. It is essential for product quality assurance, new product research and development.
Product Details

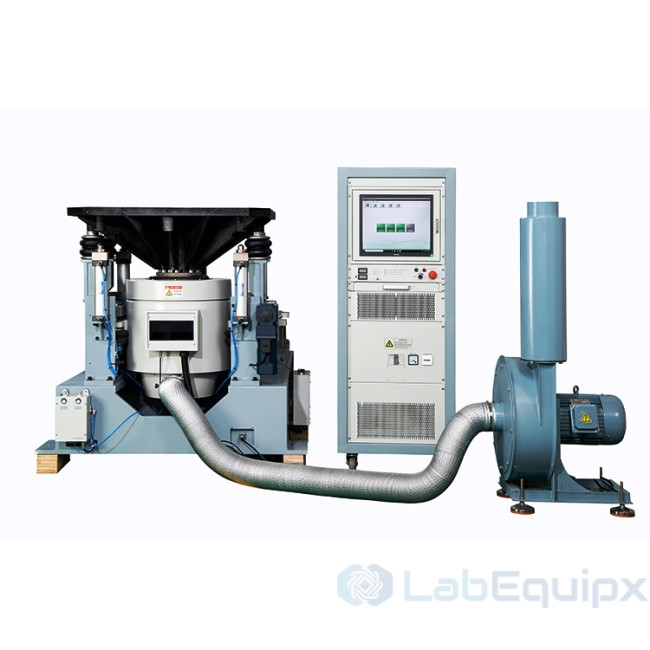

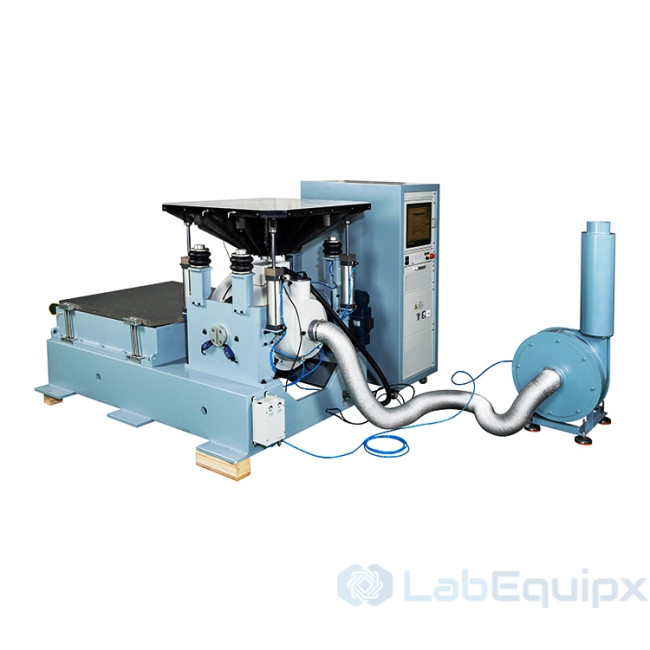

EV series electromagnetic vibration testing system is specially designed to meet the need for long time operation, installation of vibration resistant base can achieve vertical and horizontal vibration. The standard platform is installed with high efficiency airbag shock isolation device so that the vibration transmitted to the building can be minimized, at the sane time avoid the need of additional foundation in most of the cases.
A complete set of vibration testing system is composed of shaker, power and vibration measuring control system, in accordance with relevant national and international standards(such as: MIL-STD, DIN, ISO, ASTM, IEC,ISTA,GB,GJB,JIB, BS, etc.) to provide technical support for establishing product quality inspection.
Features
- Rugged suspension system and linear motion guiding, strong carrying capacity, good guiding functions, high stability;
- Load center airbag has high static stiffness and low dynamic stiffness, strong carrying capacity, perfect performance on amplitude variation;
- High efficiency D class power switching, 3-sigma peak current, provide finest power consumption and minimize harmonic distortion;
- Quick self-diagnosis with safety interlock, high safety reliability;
- Airbag shock isolation device for vibration platform without the need of additional foundation, perfect reproduction of vibrational wave and reduce vibration transmittance;
- Provide horizontal and vertical expansion platform for different application;
- Simple controller operation.
Technical Parameters:
System Model LEEV203 LEEV206 LEEV210 LEEV220 LEEV232 LEEV240 EV250 EV260 EV320 EV330 LEEV340 LEEV350 LEEV360 LEEV420 LEEV430 LEEV440 Frequency Range 1-2500 1-3000 1-3000 1-3000 1-3000 2-2500 1-2500 1-2700 1-3000 1-2700 1-2700 1-2500 1-2500 1-3000 1-2500 1-2500 Max Sine Force 300(2.94) 600(5.88) 1000(9.8) 2200(21.56) 3200(31.36) 4000(39.2) 5000(49) 6000(58.8) 2000(19.6) 3000(29.4) 4000(39.2) 5000(49) 6000(58.8) 2000(19.6) 3200(31.36) 4000(39.2) Max Displacement 40 50.8 50.8 50.8 50.8 50.85 50.8 50.8 76.2 76.2 76.2 76.2 76.2 101.6 101.6 101.6 Max Acceleration 100 100 100 100 100 100 100 100 80 85 100 82 100 66 85 100 Max Velocity 200 200 200 200 200 200 200 200 200 200 200 200 200 200 250 250 Max Load 120 200 200 300 400 500 800 1000 300 400 500 1000 1000 300 500 500 Shaker Model VG300/40 VG600/50 VG1000/50 VG2200/50 VG3200/50 VG4000/50 VG5000/50 VG6000/50 VG2200/76 VG3200/76 VG4000/76 VG5000/76 VG6000/76 VG2000/100 VG3200/100 VG4000/100 Armature Diameter 3 6 10 22 32 40 50 50 25 35 35 60 55 30 35 35 Armature Diameter ￠150 ￠200 ￠240 ￠320 ￠400 ￠440 ￠445 ￠445 ￠320 ￠320 ￠440 ￠440 ￠445 ￠320 ￠400 ￠445 Cooling Method Forced Cooling Shaker Weight 460 920 1100 1700 2500 2500 3500 4500 1700 2500 3500 3500 4500 1700 2500 3500 Shaker Dimensions(L×W×H) 750x560x670 800x600x710 845x685x840 1200x870x1100 1270x980x1140 1400x980x1140 1600x1120x1340 1650x1150x1280 1200x870x1130 1270x980x1140 1650x1150x1280 1650x1150x1280 1650x1150x1280 1200x870x1130 1270x980x1140 1650x1150x1280 Power Amplifier Model Amp3k Amp6k Amp12k Amp22k Amp35k Amp50k Amp60k Amp70K Amp30k Amp40K Amp50k Amp70k Amp70k Amp22k Amp40k Amp60k Power Amplifier Weight 250 320 350 500 550 600 800 1000 550 600 800 900 1000 550 600 800 Power Amp. Dimensions(L×W×H) 880x580x1150 880x580x1270 880x580x1690 880x580x1520 910x620x1550 910x620x2000 910x620x2000 910x620x2000 880x580x1520 910x620x1550 910x620x2000 910x620x2000 910x620x2000 880x580x1520 910x620x1550 910x620x1550 Power Supply (three-phase)AC380V±10%50Hz Aggregate Capacity 9 20 25 35 56 56 75 75 40 56 75 75 75 45 56 75
| Model | LEEV |
| Brand | LabEquipx |
