Drop Tester

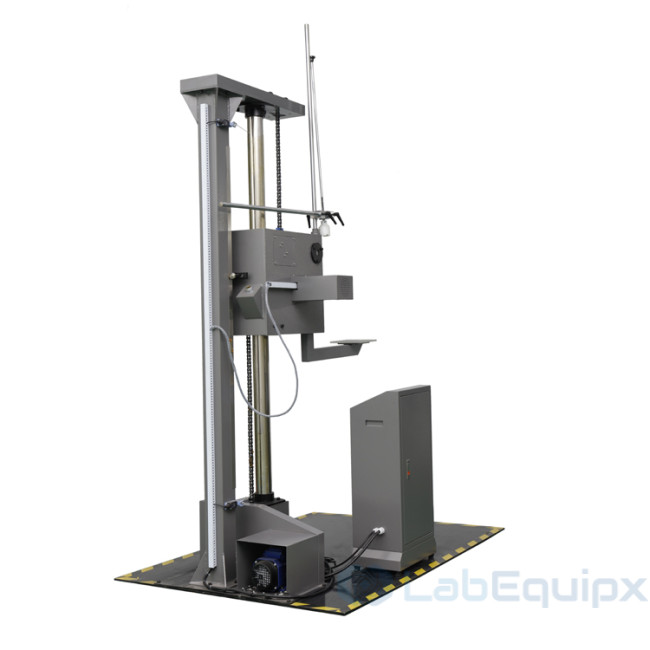

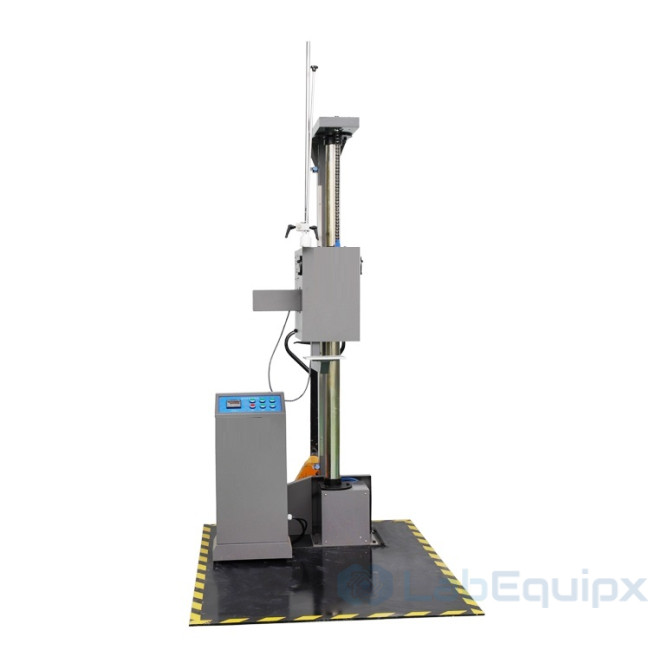

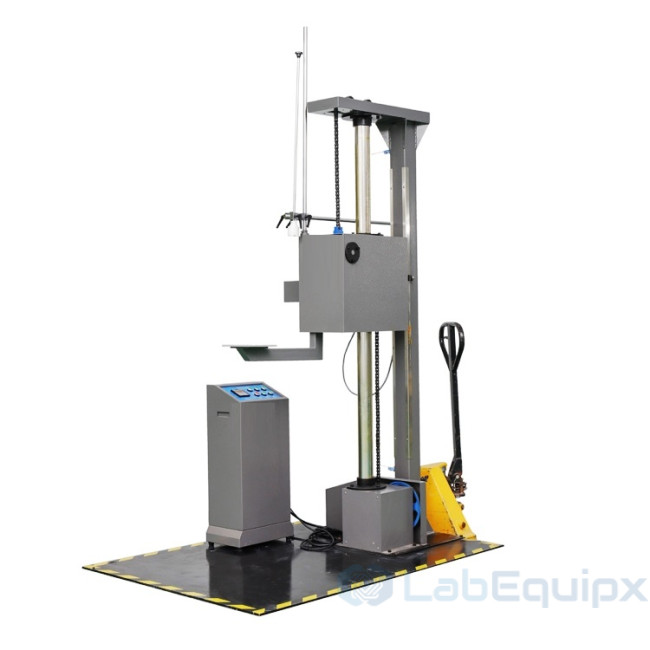

The Drop Tester LEGD determines how impact affects a package during use, transport, loading and unloading. The package is lifted on a swing arm and released in free fall onto the bottom slab. Besides flat drops on a face, the machine performs edge and corner drops. Two models cover drop heights of 300 to 1500 mm and 300 to 2000 mm.
How it works

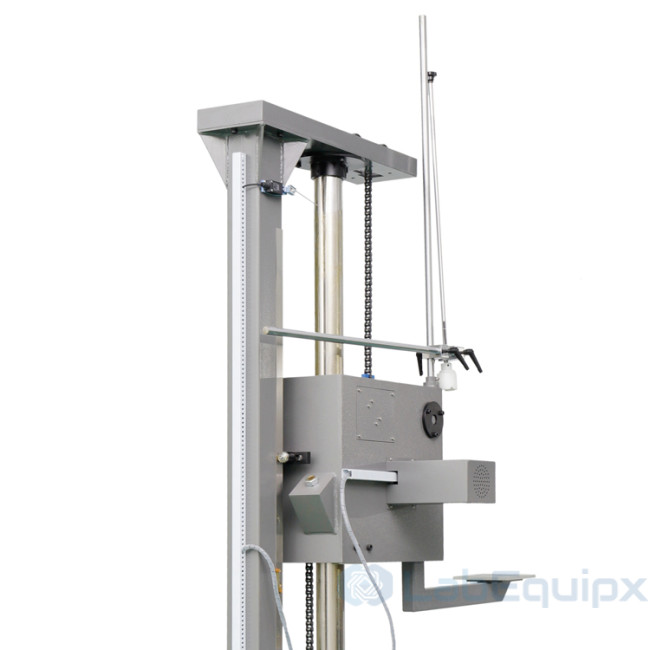

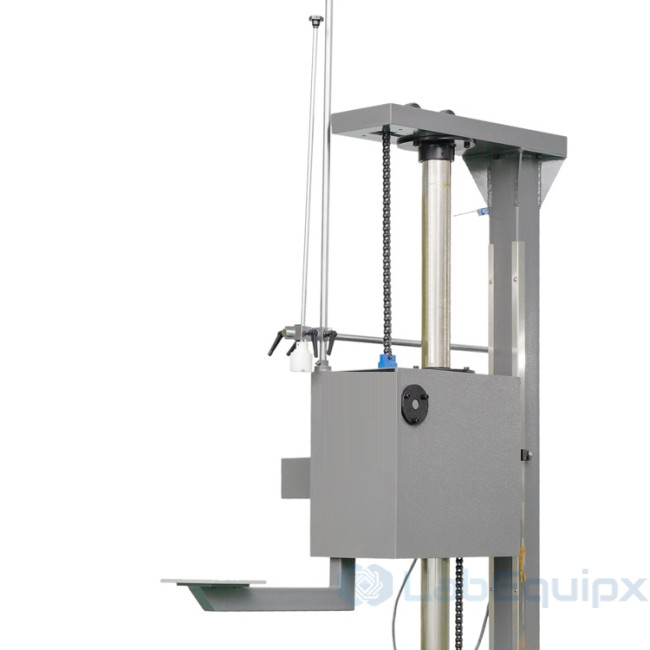

The swing arm carries the package up a double-column guide to the set height, and a self-locking screw in the lifting mechanism stops the arm from sliding down unintentionally. On release, the pneumatically driven arm pulls away from the package with an acceleration greater than 3 g, faster than the package falls, so the drop is a free fall. A hydraulic buffer absorbs the force of the arm, and automatic pneumatic interlocks prevent abnormal detachment of the arm. The support bracket and bottom slab are extensible.
Standards listed for the machine are ISO 2248-72(E), GB/T 4857.5, JIS Z0202-87 and IEC 68-2-27. Utilities are AC 110/220 V, 50/60 Hz, and compressed air at 0.5 to 0.7 MPa.
Model LEGD-150 LEGD-200 Drop height 300 to 1500 mm 300 to 2000 mm Payload capacity 85 kg 85 kg Package size 800 × 800 × 800 mm 800 × 800 × 800 mm Drop mode Free fall Free fall Machine size 1000 × 1500 × 2100 mm 1200 × 1700 × 2600 mm Machine weight 480 kg 550 kg What is included
- Drop frame with double-column guide and pneumatically driven swing arm
- Lifting mechanism with self-locking screw
- Hydraulic buffer and automatic pneumatic interlocks
- Extensible support bracket and bottom slab
Specify for your project
- Model: LEGD-150 (to 1500 mm) or LEGD-200 (to 2000 mm)
- Package mass, up to 85 kg, and size, up to 800 × 800 × 800 mm
- Drop orientations: face, edge and corner
- Test standard and drop sequence to be followed
- Site power and compressed air at 0.5 to 0.7 MPa
This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.
Features
- Satisfy and even beyond GB, IEC, ASTM, ISTA and other industrial standards;
- Can per surfaces, corner and edge drop;
- Precise guiding system and is driven pneumatically;
- Unique swing arm structural design, escape acceleration of the swing arm detachment greater than 3G;
- With double column guide, hydraulic buffer absorb the force of the swing arm, the movement is stable, reliable and with low noise;
- Self-locking screw in lifting mechanism to prevent accidental downward glide;
- Automatic pneumatic interlocks to prevent abnormal detachment of swing arm;
- Extensible support bracket and bottom slab.
Technical Parameters:
Model LEGD-150 LEGD-200 Drop Height(mm) 300~1500 300~2000 Payload Capacity(kg) 85 85 Package Size(mm) 800×800×800 800×800×800 Drop Mode Free Fall Drop Machine Size(mm) 1000*1500*2100 1200*1700*2600 Machine Weight(kg) 480 550 Power/Air Supply AC110/220V 50/60Hz （Compressed Air）0.5~0.7Mpa Applicable Standards ISO2248-72(E)GB/T4857.5 JISZ0202-87 IEC68-2-27
