LEGD

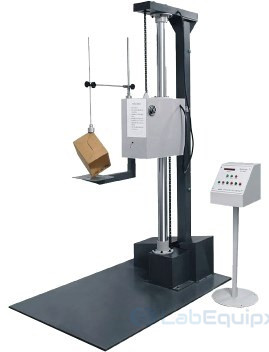

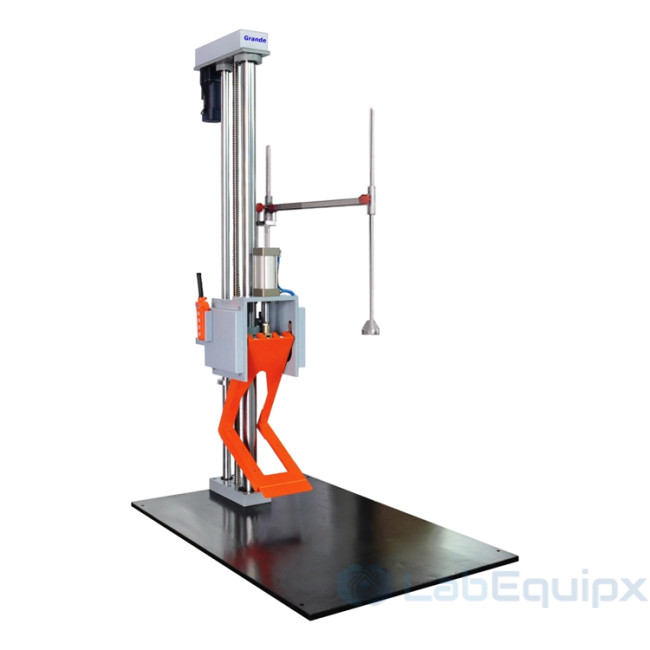

Drop Test Machine LEGD
Packaging drop test is used to determine the effect of impact on the package during use, transportation, loading and unloading. Apart from accurate plane fall test, it can also perform edge and corner drop test to make a complete evaluation on the performance of packaging and product.
Features
- Satisfy and even beyond GB, IEC, ASTM, ISTA and other industrial standards;
- Can per surfaces, corner and edge drop;
- Precise guiding system and is driven pneumatically;
- Unique swing arm structural design, escape acceleration of the swing arm detachment greater than 3G;
- With double column guide, hydraulic buffer absorb the force of the swing arm, the movement is stable, reliable and with low noise;
- Self-locking screw in lifting mechanism to prevent accidental downward glide;
- Automatic pneumatic interlocks to prevent abnormal detachment of swing arm;
- Extensible support bracket and bottom slab.
Technical Parameters:
Model LEGD-150 LEGD-200 Drop Height(mm) 300~1500 300~2000 Payload Capacity(kg) 85 85 Package Size(mm) 800×800×800 800×800×800 Drop Mode Free Fall Drop Machine Size(mm) 1000*1500*2100 1200*1700*2600 Machine Weight(kg) 480 550 Power/Air Supply AC110/220V 50/60Hz （Compressed Air）0.5~0.7Mpa Applicable Standards ISO2248-72(E)GB/T4857.5 JISZ0202-87 IEC68-2-27
| Model | LEGD |
| Brand | LabEquipx |
